KUBE II SCANNER

KUBE II SCANNER

Lottery printers-Kube II Scanner

KUBE II SCANNER is the combination of a high performance scanner for cards and betting slips and a high speed thermal printer with stacker unit. KUBE II SCANNER works with standard lottery cards, 82 millimetre large and having a maximum length of 350 millimetres. It is capable of reading barcodes in combination with coupons and betting slips. The betting slips are printed on 80/82.5mm large paper, and the printer manages a paper roll with 150 mm diameter. The printed betting slips can be validated by printing the words "you won" or "validated" on them.
The one product for a complete solution !



  • Scans cards
  • Quickly prints betting slips
  • Verifies and validates betting slips



Reads the barcode on the betting slip, checks its validity and validates the betting slip

Characteristics

  • Embedded scanner
  • Barcode reading
  • Large paper roll
  • Intelligent coupon scanning
  • Branding feature to void ticket





EXCLUSIVE FEATURES

  • Embedded scanner
  • Barcode reading
  • Large paper roll
  • Intelligent coupon scanning
  • Branding feature to void ticket
  • Compact all-in-one unit
  • 203 DPI printing resolution
  • Memory expansion up to 2GB
  • Mass Storage
  • Windows and Linux drivers











  • CardSet software tool to edit and modify your game slips (available for Windows)





SCANNER SPECIFICATIONS

  • 203dpi resolution (8 dot/mm)
  • Scanning speed: 250mm/sec
  • Scanning Area: 82mm (W) x 350mm (L)
  • Up to 40 programmable card types
  • Data format: 256 shades of grey and b/w image, dot matrix (x,y)
  • Rectangle search: 8800 max (total)
  • Barcode reading
  • CIS (Contact Image Sensor) technology
  • Red scanning light (green optional)





APPLICATIONS

  • Lotteries: odd reading, bet slip printing, winning slip recognition and/or validation
  • Sports or horse racing betting: bet slip printing, reading or scanning, validation in case of wins, combined betting odds
  • Retail: coupon reading and scanning, signed POS payment receipts, purchase data and loyalty points, discount deductions from the total bill
  • Banks: cheque and banking document reading and scanning

Software

Technical sheet

Printing Method Thermal printing
Number of dots 8 dots / mm
Resolution 203 dpi
Printing (mm/sec)     190
Character set     PC437, PC850, PC860, PC863, PC865, PC858 (euro)
Printing Format     Normal, height and width from 1x to 8x, expanded, reverse, underlined, script
Printing Direction     Straight, 90°, 180°, 270°
Paper width     80mm/ 82.5mm
Paper weight     from 70 to 90 g/m²
Roll Dimension max Ø 150mm
Emulation CUSTOM / POS
Interfaces Serial (RJ45), USB, Ethernet interface
Data Buffer 20 Kbytes
Flash Memory 512 KB
Graphic Memory 2 logos with 608 x 862 dots
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
Linux (32/64 bit);
Virtual COM (Linux or Windows 32/64 bit)
Tool software PrinterSet, CustomPowerTool, CardSet
Custom Windows API:
KUBE II SCANNER (from FW release 1.45 and higher)
KUBE II SCANNER VERIPRINT (from FW release 1.51 and higher)
Power supply 24 Vdc ± 10% (external power supply)
Medium consumption 1 A on average (12.5% dots turned on)
DKD Function 1 driver or customer display directly connected
MTBF 60,600 hours (electronic board)
Safety EN60950 2001
Marks CE, RoHS Compliant
Dimensions 357(L) x 216(H) x 140(W)mm (with cover closed)
445(L) x 354(H) x 140(W)mm (with cover open)
Weight 3.3 Kg

Models

911BS020300733

911BS020300733

MULTIFUNCTION SYSTEM KUBEII SCANNER

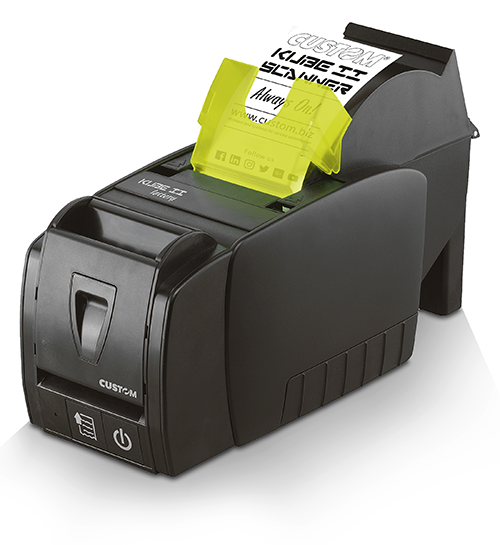

911BS030200733

911BS030200733

MULTIFUNCTION SYSTEM KUBEII SCANNER VERIPRINT
