TWENTYFIVE

TWENTYFIVE

The latest step towards the future.

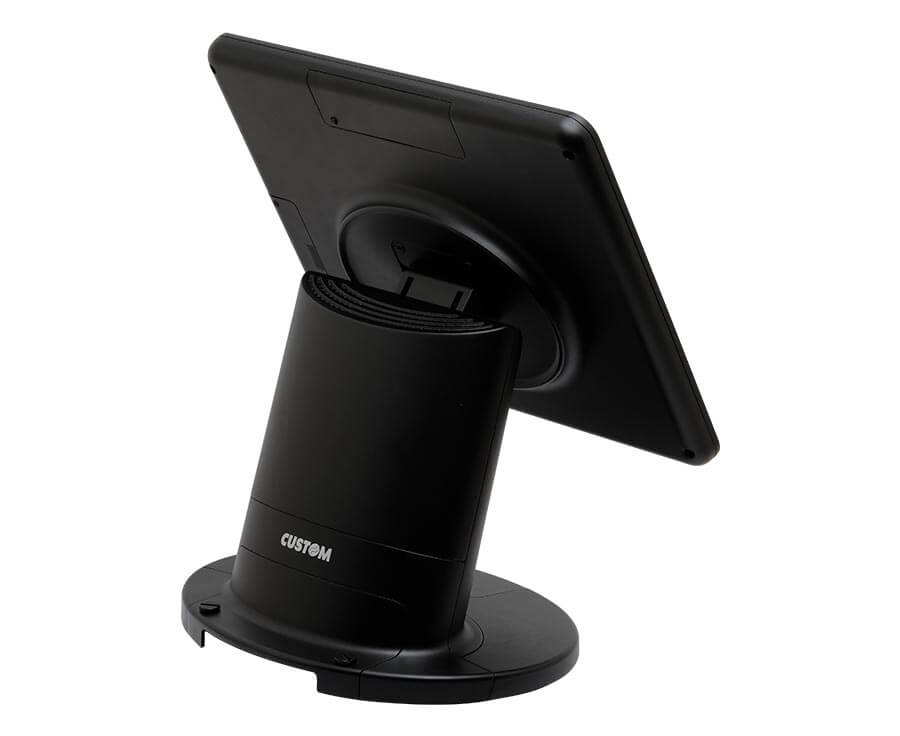

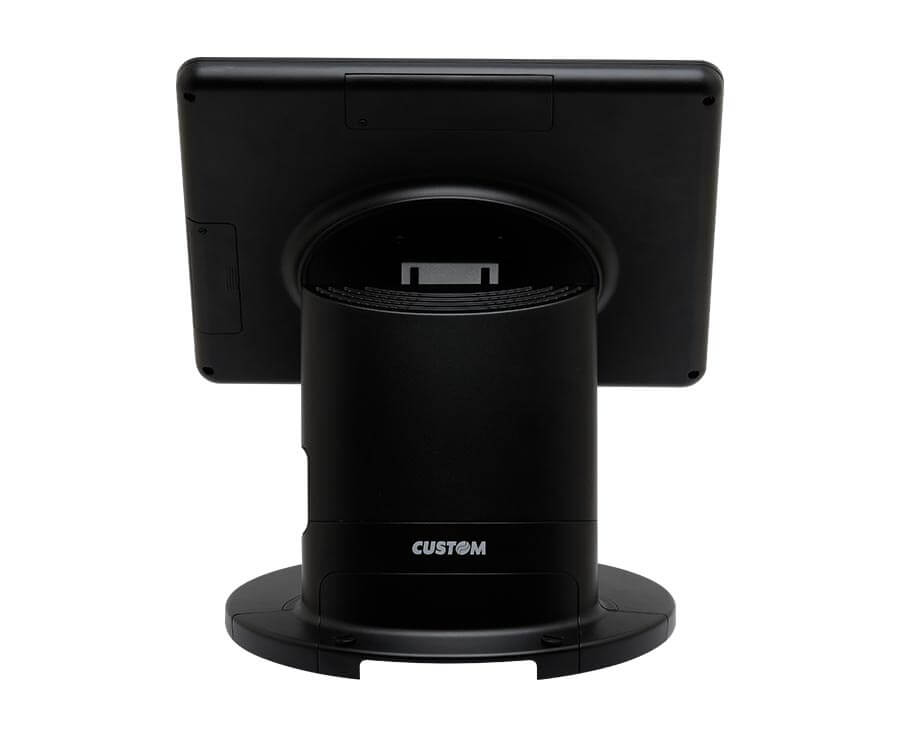

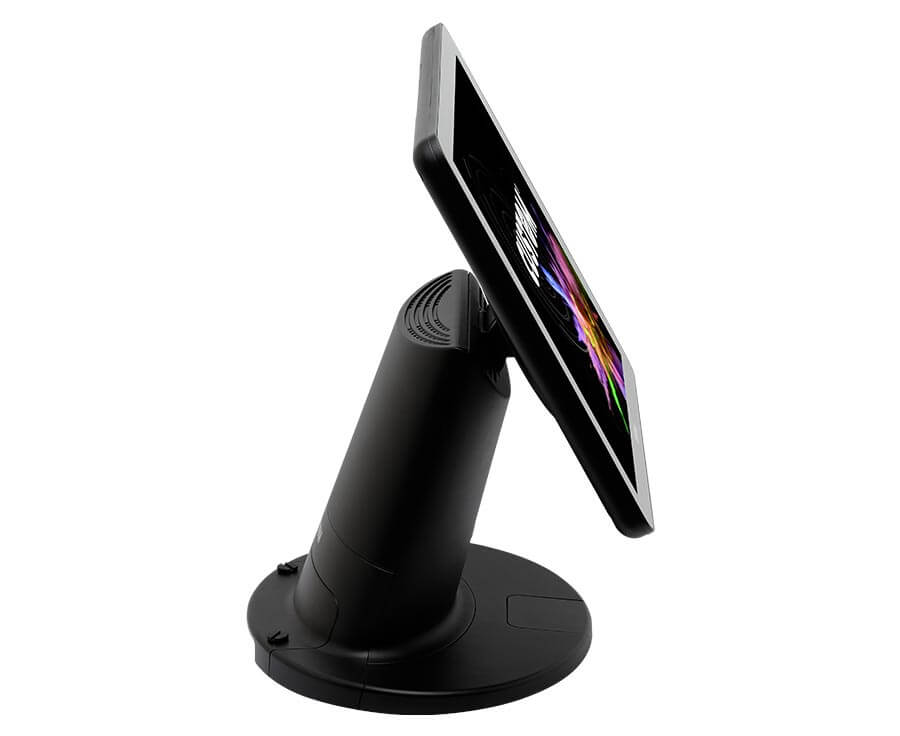

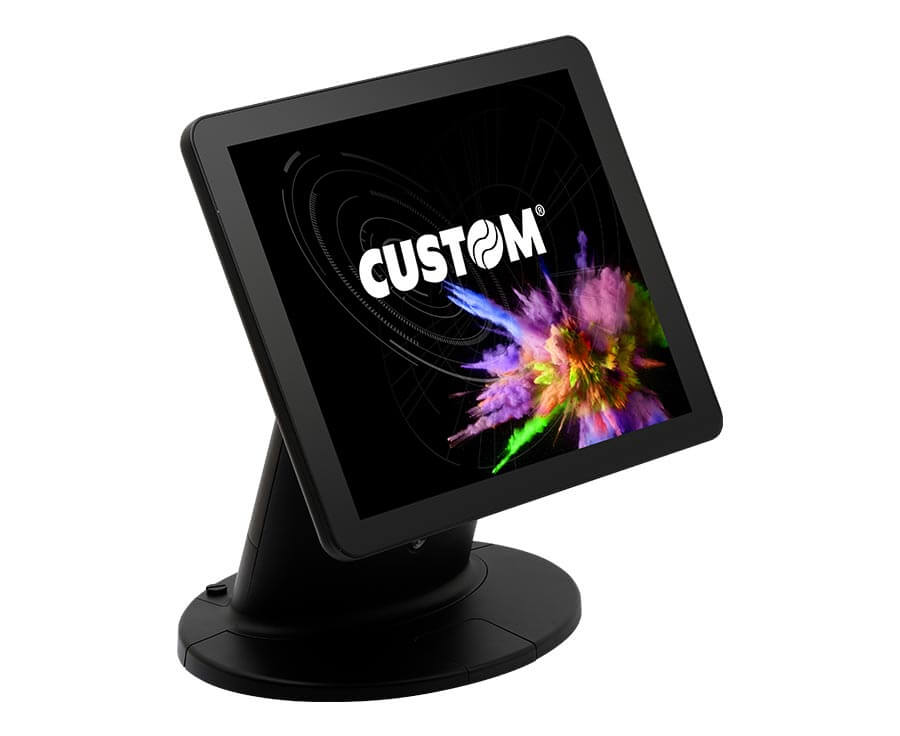

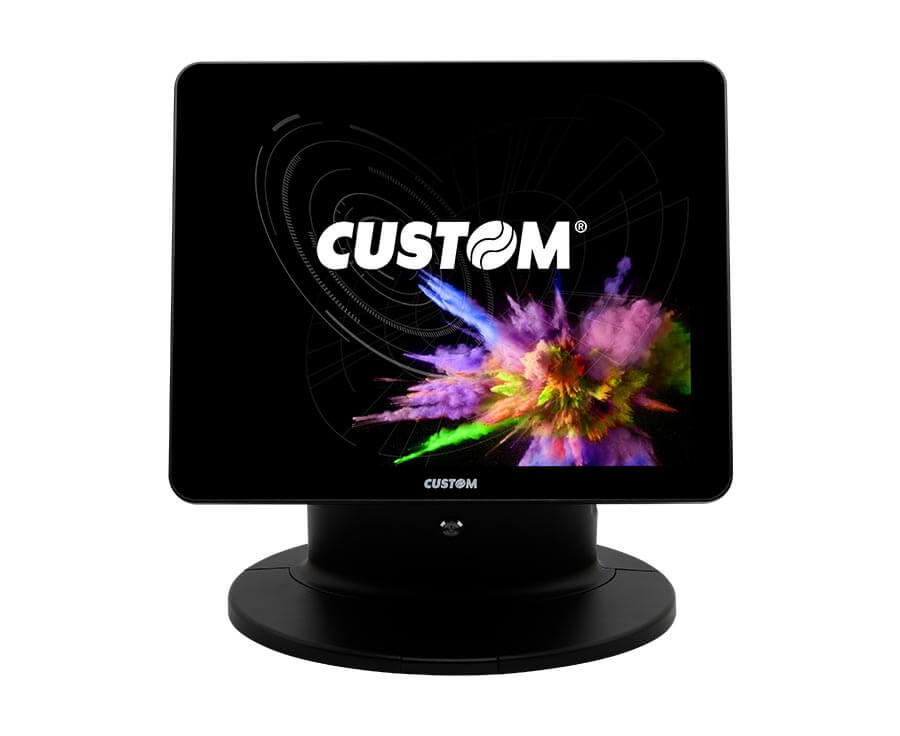

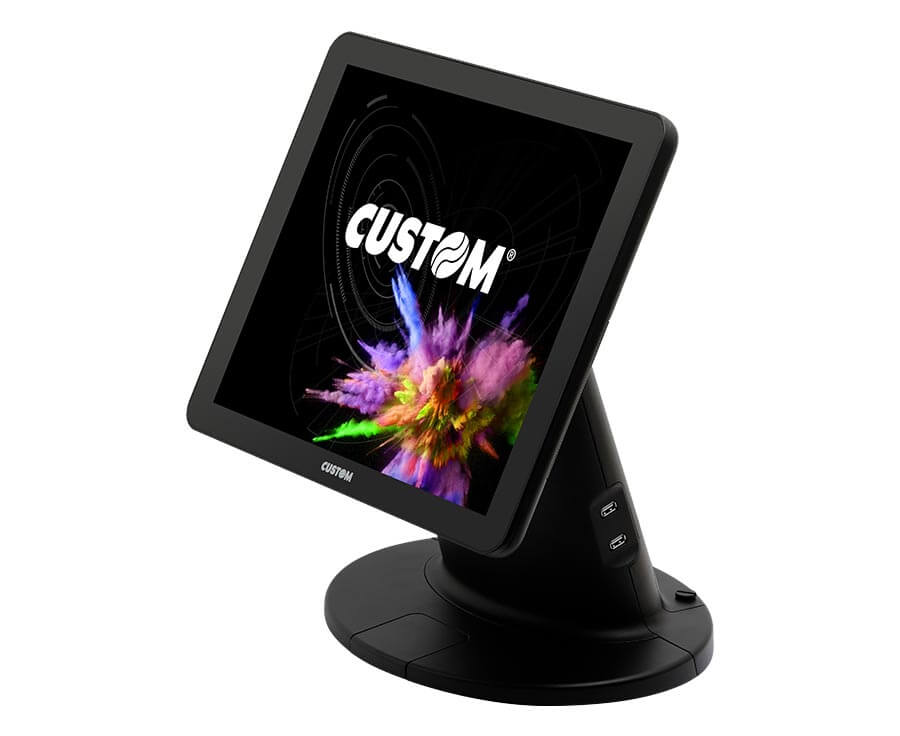

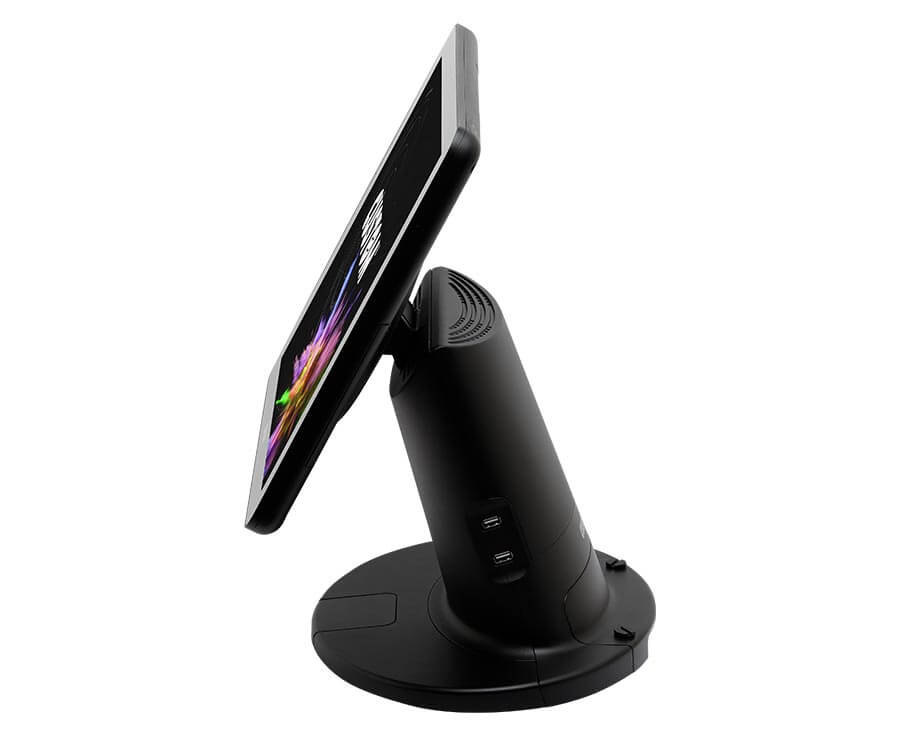

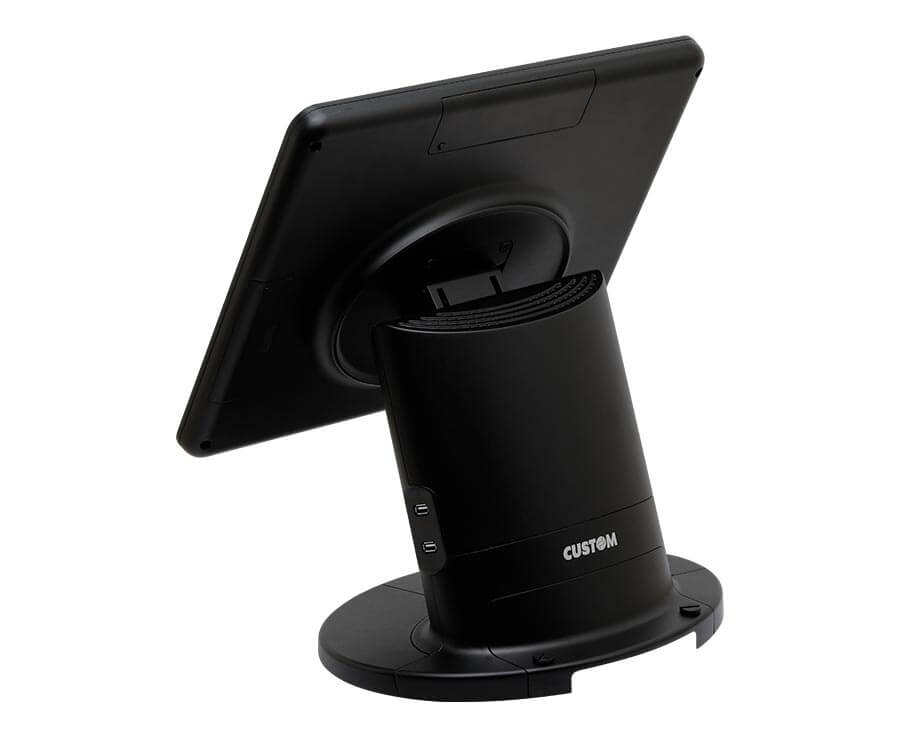

The NEW TWENTYFIVE PC POS is the latest innovation from Custom, showcasing our 25 years of product development and offering:


  • An all aluminum design
  • 17" TrueFlat capacitive touch screen
  • Low power consumption


Additionally, the TWENTYFIVE has a variety of optional accessories such as a fingerprint reader, 9.7" customer facing display and multiple processor configurations.

Characteristics

  • Die-cast aluminium
  • True Flat Projected capacitive touch display
  • Up to 5 touches multi touch
  • 17" LED LCD monitor, 4:3, 1280 × 1024
  • Video board resolution up to 4K in external monitor exit
  • i5-6200U (3 MB cache) processor up to 2.80 GHz or Celeron 3955U processor (2 MB cache) up to 2.00 GHz
  • 4 GB RAM, available 8 GB, expandable up to 16 GB
  • SSD 64 GB, available 128 GB, expandable
  • Easy access to SSD and cables

Accessories

  • Magnetic and chip card in one device
  • 9.7" VGA customer monitor
  • 2 × 20 LCD graphic customer display
  • Fingerprint on PC POS base

Technical sheet

  4/64 Model i5 4/64 Model
  8/128 Model
i5 8/128 Model
Processor CELERON 3955U INTEL i5-6200U CELERON 3955U INTEL i5-6200U
RAM Memory 4 GB 4 GB 8 GB 8 GB
Video board 4K Resolution 4K Resolution 4K Resolution 4K Resolution
Hard Disk 64 GB 64 GB 128 GB 128 GB
Display 17" 17" 17" 17"
Resolution 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024
Brightness 350 nits 350 nits 350 nits 350 nits
Touch screen 17" True Flat capacitive 17" True Flat capacitive 17" True Flat capacitive 17" True Flat capacitive
Operating System Windows 10 Windows 10 Windows 10 Windows 10
I/O 1 x Ethernet 1 Gb port
3 x USB 2.0 port
6 x USB 2.0 port (2 on the sides with easy access)
4 x USB 3.0
4 x RS232 (2 DB9 + 2RJ48 tele-powered)
1 x RJ11 12/24 V cash drawer port
1 x HDMI for second monitor
1 x power supply port 24 V DC		 1 x Ethernet 1 Gb port
3 x USB 2.0 port
6 x USB 2.0 port (2 on the sides with easy access)
4 x USB 3.0
4 x RS232 (2 DB9 + 2RJ48 tele-powered)
1 x RJ11 12/24 V cash drawer port
1 x HDMI for second monitor
1 x power supply port 24 V DC		 1 x Ethernet 1 Gb port
3 x USB 2.0 port
6 x USB 2.0 port (2 on the sides with easy access)
4 x USB 3.0
4 x RS232 (2 DB9 + 2RJ48 tele-powered)
1 x RJ11 12/24 V cash drawer port
1 x HDMI for second monitor
1 x power supply port 24 V DC		 1 x Ethernet 1 Gb port
3 x USB 2.0 port
6 x USB 2.0 port (2 on the sides with easy access)
4 x USB 3.0
4 x RS232 (2 DB9 + 2RJ48 tele-powered)
1 x RJ11 12/24 V cash drawer port
1 x HDMI for second monitor
1 x power supply port 24 V DC
Power supply from 100 Vac to 240 Vac from 100 Vac to 240 Vac from 100 Vac to 240 Vac from 100 Vac to 240 Vac
Dimensions 328(L)x398.5(W)x445(H) mm 328(L)x398.5(W)x445(H) mm 328(L)x398.5(W)x445(H) mm 328(L)x398.5(W)x445(H) mm

Models

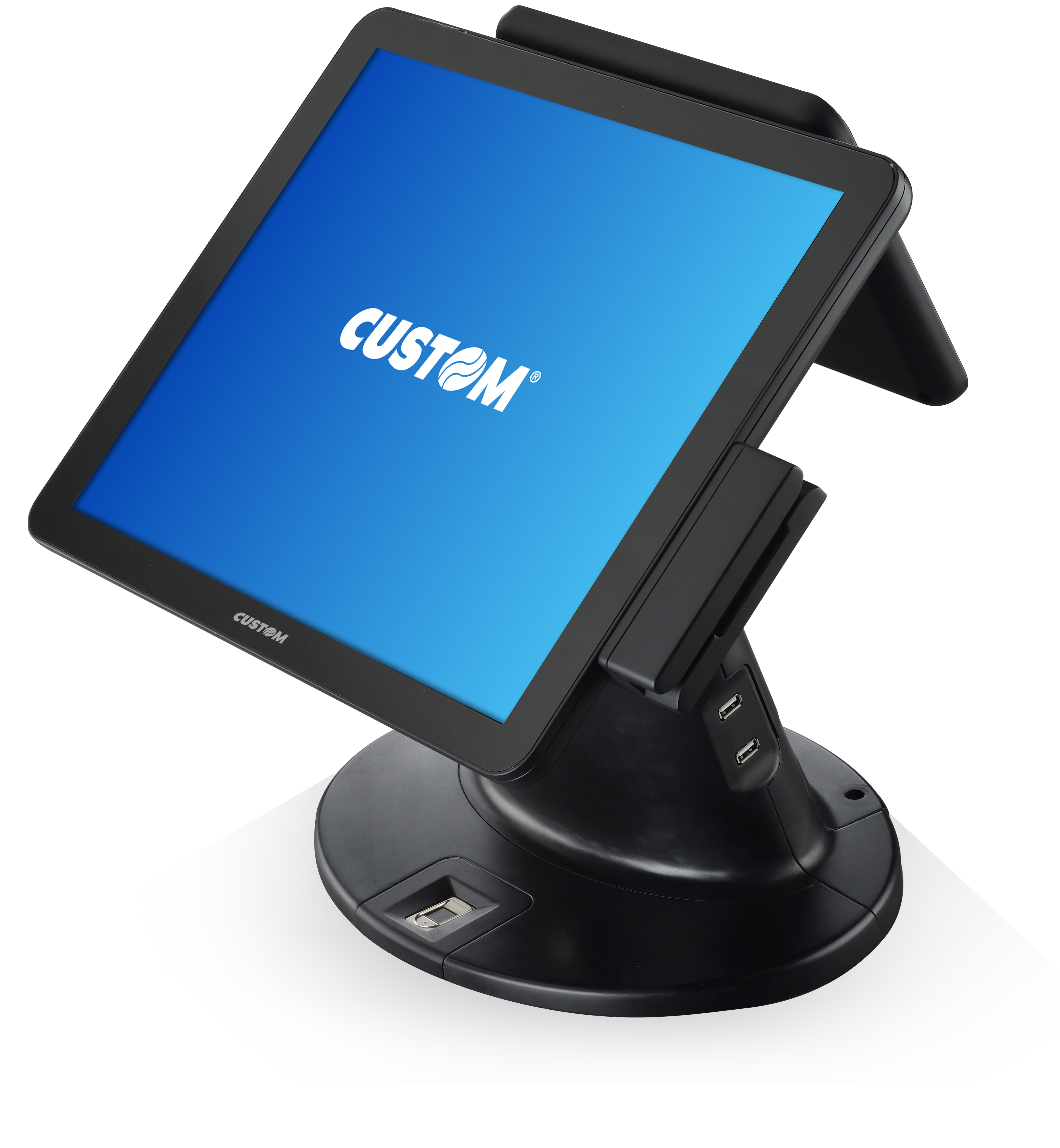

934MB010100L33

934MB010100L33

PCPOS TWENTYFIVE 17" 3955U 4GB RAM 64GB SSD

Accessories
934MB010200L33

934MB010200L33

PCPOS TWENTYFIVE 17" I5 4GB RAM 64GB SSD

Accessories
934MB010400L33

934MB010400L33

PCPOS TWENTYFIVE 17" I5 8GB RAM 128GB SSD

Accessories
934MB010300L33

934MB010300L33

PCPOS TWENTYFIVE 17" 3955U 8GB RAM 128GB SSD

Accessories
Download Datasheet

Contact us to request more information
