VKP80III

VKP80III

Top seller kiosk printer with a unique green paper mouth

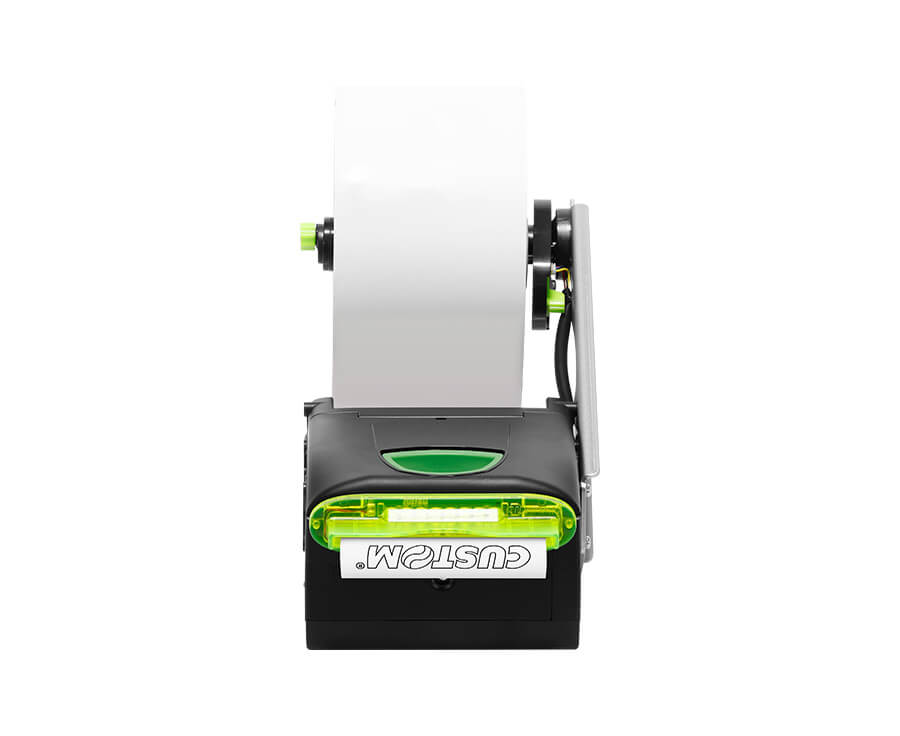

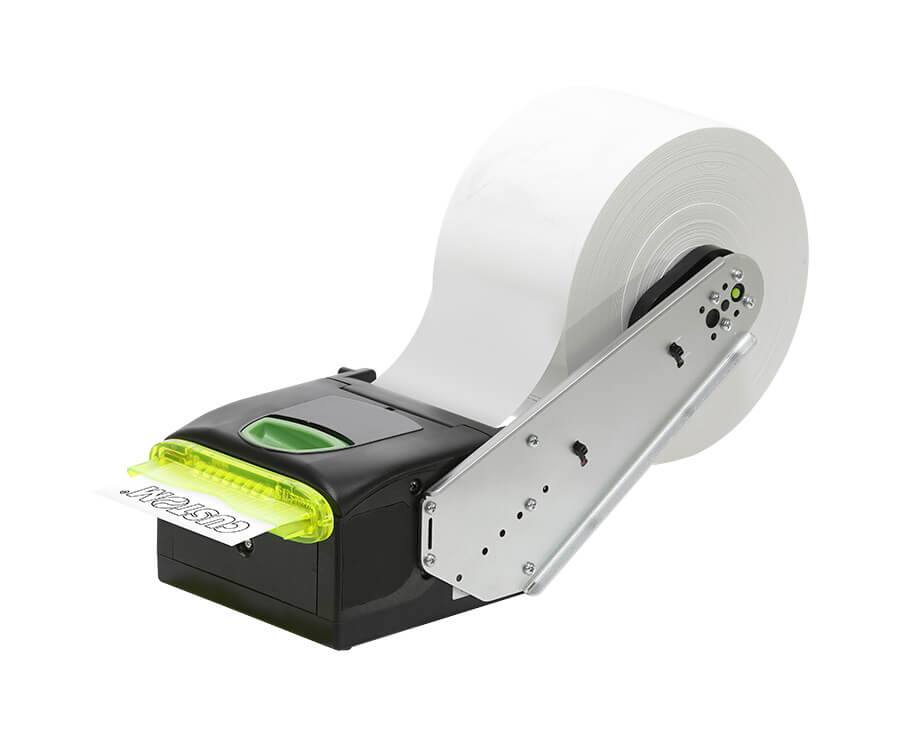

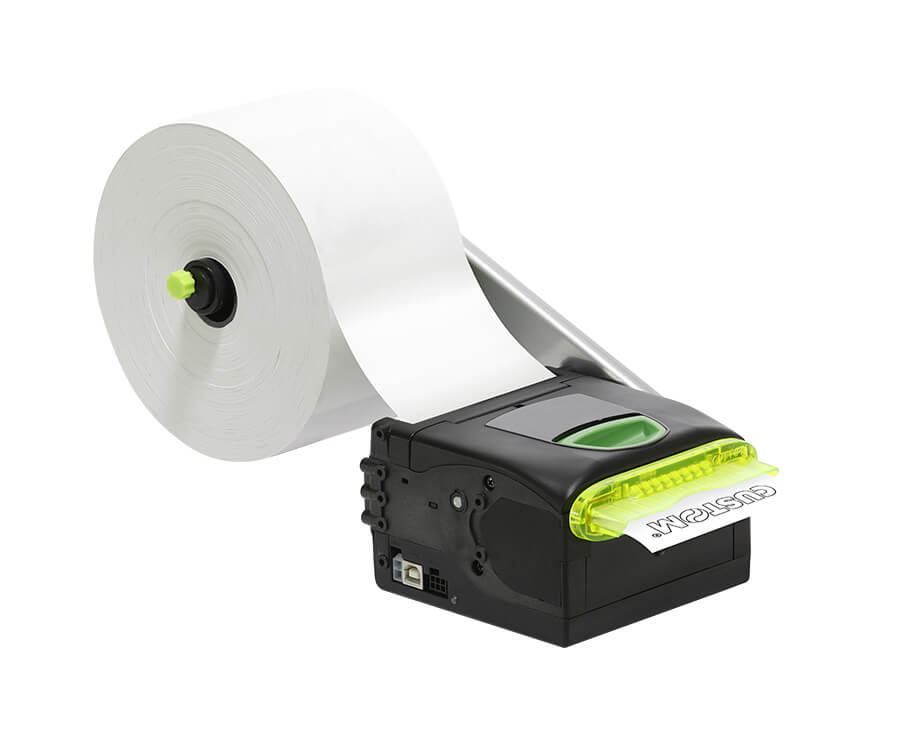

VKP80III is a kiosk printer for receipts and tickets, top seller and reference product in more than 70 countries in the world. Compact, flexible and sturdy it’s also full of features, such as the high performing processor and the long-lasting printing head. It’s suitable for any kind of kiosk, thanks to the adjustable roll holder and the possibility mount it on both sides, overall 6 different positions. VKP80III is equipped with a patented anti-jam system with jamming autodetection and auto eject retry, illuminated bezel and paper presenter with eject/retract function.

VKP80III VKP80III VKP80III
  1. RICH IN TECHNOLOGY: PRESENT/EJECT/RETRACT FULL CAPABILITY
  2. EXTREMELY COMPACT AND FLEXIBLE WAY TO ANSWER OF CUSTOMER NEEDS
  3. ANTI-JAM SYSTEM WITH JAMMING AUTODETECTION AND AUTO EJECT RETRY
  4. LOWEST TOTAL COST OWNERSHIP: RELIABLE AND ROBUST WITH LESS THAN 0.5% OF FAULTINESS
  5. PRINT HEAD WITH AUTO-DIAGNOSTIC FUNCTION AND ECOGREEN MODE USEFUL TO REDUCE CONSUMPTION
VKP80III
VKP80III

Characteristics

  • The most compact high-end/top of the range kiosk printer with small footprint: 116 × 143 × 76 mm
  • Paper roll (up to 250 mm with optional roll holder)
  • Paper width from 50 to 82.5 mm
  • Speed > of 250 mm/s

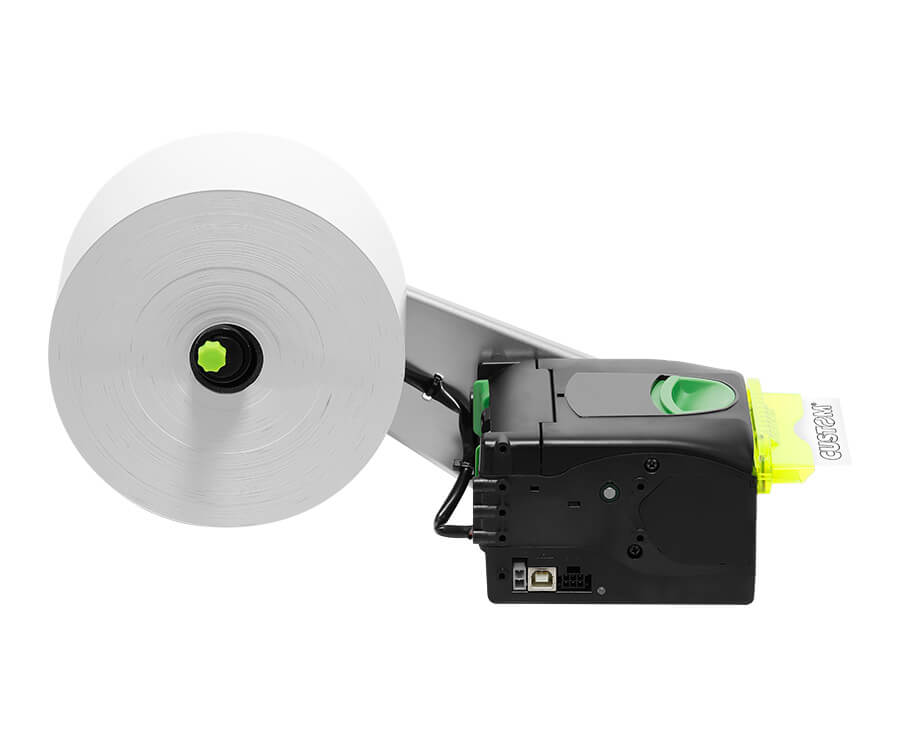

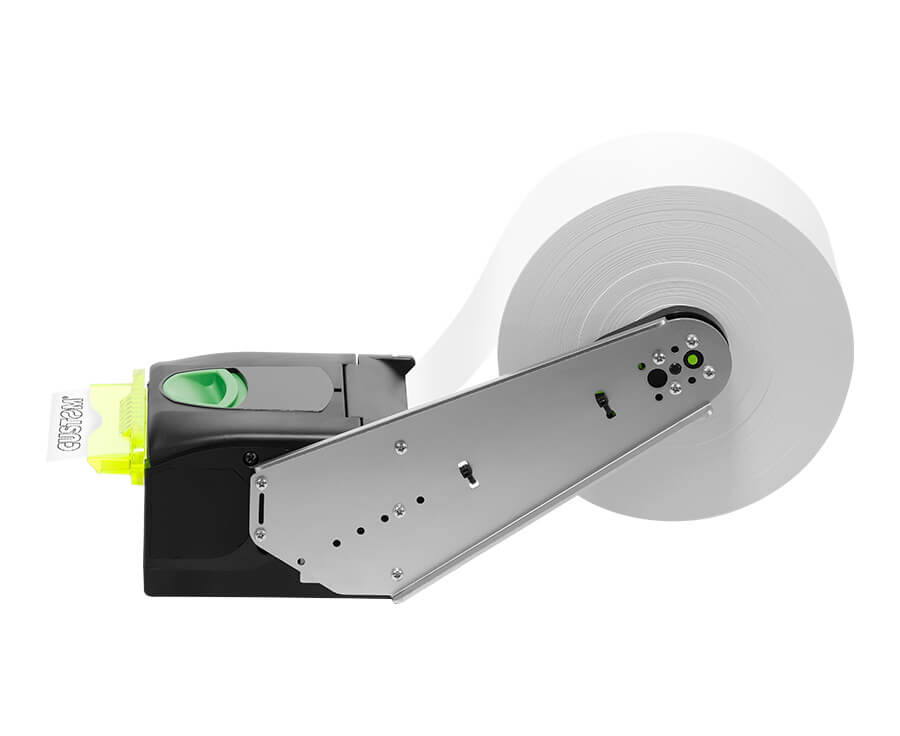

  • Multi-position paper roll holder (3 positions for both sides)

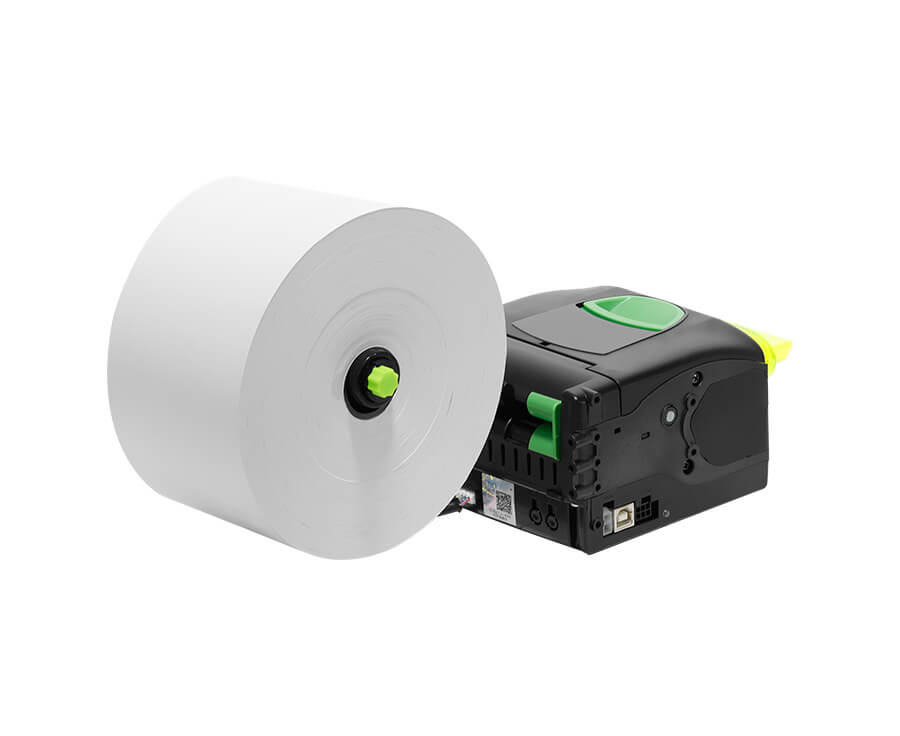

  • Ergonomic paper loading from the right or left side, suiting all kiosk designs
  • RS232 and USB 2.0 full speed interface (ETH and USB version available)
  • 1D / 2D barcodes printing capability (PDF417, DATAMATRIX, AZTEC, QR code)
  • International fonts on board: any language available
  • Long life printing head (200 Km)
  • Highly reliable cutter: > of 1,000,000 cuts
  • Illuminated paper bezel
  • Outdoor applications:-20/+70°C working temperature

Software

PrinterSet icon

PrinterSet  to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.

VIRTUAL COM Software Tool to create a virtual serial port on Windows PC capable of connecting Custom devices, physically linked via USB or ETHERNET, in such a way as to be compatible with software applications designed for connection in serial mode

  • CustomPowerTool to easily design your document
  • Status Monitor DLL & Full Windows Status Monitor Driver to properly monitor unattended application
  • Status Monitor Windows Service to deliver status/alarms through email
  • Linux® Driver (C.U.P.S.) 32/64 bit compatible and Linux utilities (Upgrade, Monitoring)
  • ANDROID™ API to interface device and Android PrinterSet for easy configuration
  • Auto-installing Drivers for Windows® (32/64 Bit)
  • OPOS, OPOS.Net and JavaPOS Driver
  • Grey Scale driver to print 16 different shades of grey
  • WOSA XFS Driver
  • Aviation
  • ATM
  • Slot Machine
  • Parking
  • Self-Service
  • Kiosk
VKP80III

Functionalities

  • Automatic ticket ejecting & retractring back (speed > of 1,000 mm/s)
  • Patented retracting function w/o ticket presentation
  • Patented anti-jam system with jamming autodetection and auto eject retry
  • Extremely versatile integration with drivers and utilities for Windows, Linux, Android and iOS
  • Hot swap function: it is possible to replace the printer in the kiosk w/out powering it off
  • Print head self-diagnostic function: it is possible to get the number of not working dots
  • Digital journal printer: the printer allows the saving of receipt data in the flash memory in text or image format; data can be simply read via USB (mass storage)

Sensors

  • Paper end (ticket presence), paper output, open printer cover, near paper end on external paper roll holder, printing head temperature;
  • VeriNotch: mobile notch/black mark sensor, no thermal side; optional TopNotch
  • Extra cable for the paper near end sensor, it can be used when the paper roll holder is installed 90° on the right side

Accessories

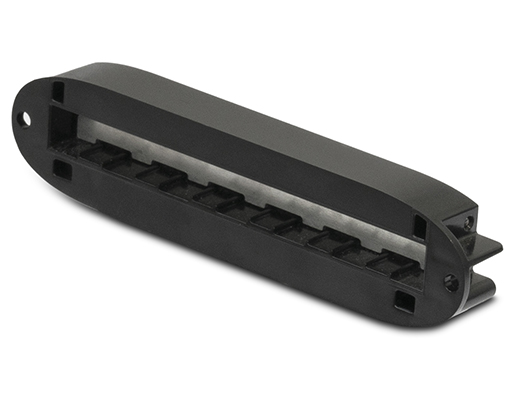

SHUTTER FOR OUTDOOR:
  • Prevents the accidental introduction of objects in the printer bezel
  • It allows to reduce the onsite technical assistance costs, because it significantly increases the life of the internal components
  • No need any firmware update
  • It installs easily, even in the field (retrofit)
  • Min paper weight 55 g/m2 with 85% not condensed relative humidity
  • Operating temperature -20 / +70°C



  • Jumbo roll holder kit (diameter up to 250mm) with near paper end sensor and pretensioner

Technical sheet

Printing Method Thermal with fixed head
Number of dots 8 dots/mm
Resolution 203 DPI  / enhanced printing quality
Printing (mm/sec) High speed > 250 mm/sec
Character set PC437, PC850, PC860, PC863, PC865, PC858
Printing Format Normal, height and width from 1x to 8x, reverse, underlined, italic, bold
Printing Direction Straight, 90°, 180°, 270°
Paper width from 50 to 82.5 mm
Paper weight from 55 to 110 g/m²
Roll Dimension max 150mm (Up to 250mm with optional roll holder)
Emulation CUSTOM/POS
Interfaces RS232 + USB
ETH + USB
Data Buffer 16 KB text / 1MB graphics
Flash Memory 5 MB (of which 1MB available to the user)
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
Linux (32/64 bit);
Virtual COM (Linux or Windows 32/64 bit);
OPOS;
Android™;
iOS
Software Tools PrinterSet, CustomPowerTool, Status Monitor, Custom Windows API
Power supply 24 Vdc±10%
Medium consumption 1A    (12,5% dots turned on)
MTBF 450,000 hours (electronic board)
Head Life 200Km / 100 Ml pulses
MCBF 1,000,000 cuts
Operating temperature -20°C + 70°C
Dimensions 143.5 (L) x 76.4 (H) x 116 (W) mm
Weight 0.8 Kg

Models

915DX010100J00

915DX010100J00

PRINTER VKP80III ETH USB SIDE CONNECTORS

Accessories
915DX011700300

915DX011700300

PRINTER VKP80III USB RS232 REAR CONNECTORS

Accessories
915DX011900300

915DX011900300

PRINTER VKP80III USB RS232 SIDE CONNECTORS

Accessories
