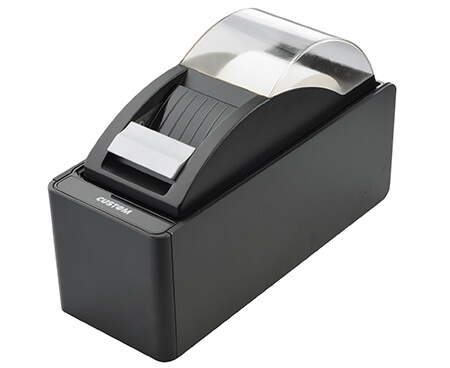

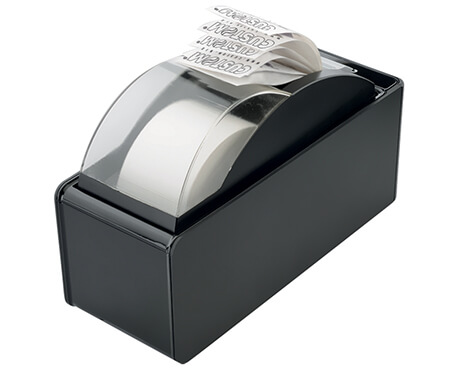

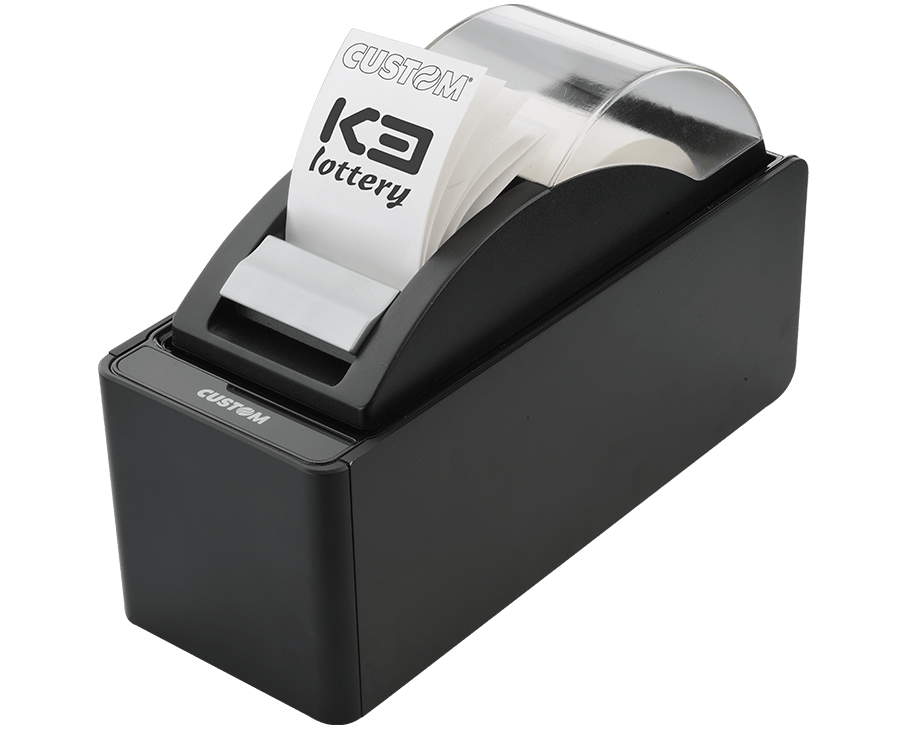

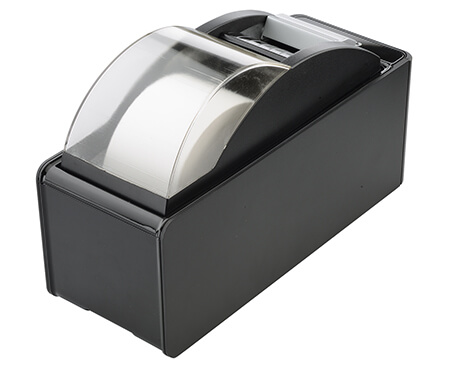

K3 LOTTERY

K3 LOTTERY

Printer for lottery, gaming and betting solution


K3 LOTTERY is Custom printing solution designed for the lottery, gaming and betting sectors, with a 80/82.5mm paper width and 203mm roll diameter to ensure exceptional print autonomy.

Characteristics

  • Paper width: 80/82.5mm
  • Printing speed: 254mm/s
  • Paper roll diameter: 8" (max 203 mm - external)
  • Quality texts, graphics, images, logos printing
  • USB interface
  • Long life printing head (100 Km) and cutter (2M cuts)
  • Motorized stacker 100 tickets
  • 1D and 2D barcodes (QR code PDF417, Aztec, Datamatrix, RSS)
  • Sensors: cutter blade position, paper presence, alignment mark detection, head temperature, paper jam, stacker position, near paper end, cover open
  • Windows 7, 8, 8.1, 10 (32/64 bit) drivers
  • Linux (C.U.P.S.) (32/64 bit) drivers
  • All International fonts on board




Accessories


Technical sheet

Printing Method Thermal printing
Number of dots 8 dots / mm
Resolution 203 DPI
Printing (mm/sec) 254
Character set PC437, PC850, PC860, PC863, PC865, PC858 (euro)
Supported barcode UPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, PDF417, DATAMATRIX, AZTEC, QRCODE, RSS
Printing Format Normal, height and width from 1x to 8x, expanded, reverse, underlined, script
Printing Direction Straight, 90°, 180°, 270°
Paper width 82.5mm
Paper thickness from 71μm to 89μm
Paper weight from 71g/m² to 86g/m²
Printing width 80mm
Roll diameter max 203 mm (external)
Emulation CUSTOM / POS
Interfaces USB
Data Buffer 16 kB
Flash Memory 2 MB
RAM Memory 8 MB
Graphic Memory Logos management / font (True Type), 8 MB
Drivers Windows 7, 8, 8.1, 10 (32/64 bit), Linux (C.U.P.S.) (32/64 bit)
Power supply 24 Vdc ± 10% (external power supply optional)
Medium consumption 1.8 A
Operating temperature from 0 °C to +45 °C
Head life 100Km / 100 Ml pulses (12.5% duty cycle)
MCBF 2 Ml cuts
Dimensions 381(L) x 244.5(H) x 154(W) mm with cover closed
381(L) x 348.8(H) x 154(W) mm with cover open

Weight 3,6 Kg

Models

911HM030100233

911HM030100233

PRINTER K3 LOTTERY USB RS232


Contact us to request more information
