MT15

MT15

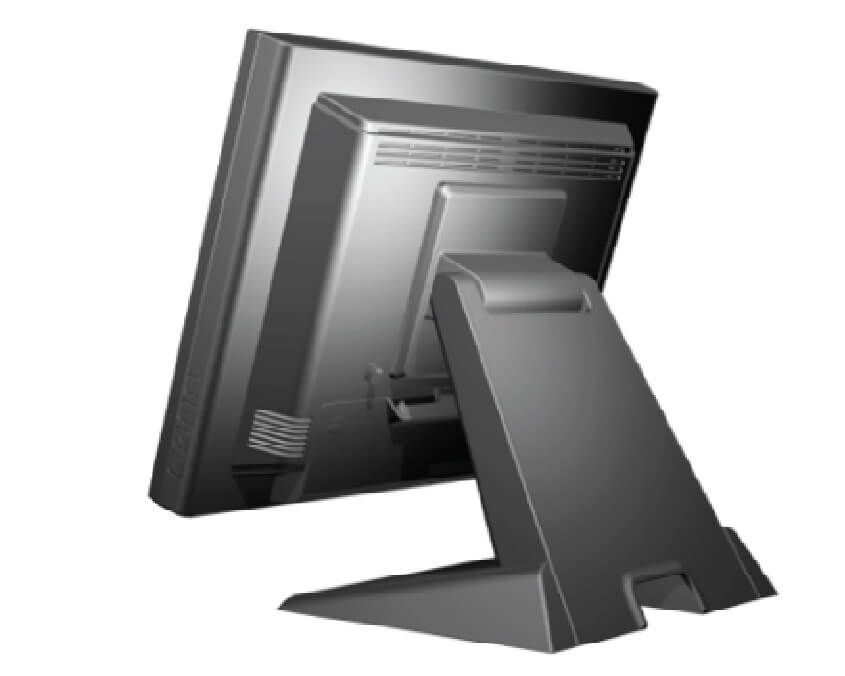

Monitor Touch with backlit LED panel

Monitor touch with backlit LED panel,1000 nits high brightness, MT15 offers an high contrast quality and a solution that can be read with solar light. The capacitive touch screen supplies an application of multi-touch inputs. The touch screen has a lunette sealing with IP65 protection on the front side to avoid the entrance of liquids and dust. The product is ready for VESA vertical mounting, is compatible with HID for an easy integration with thin client. Worldwide certifications such as: TUV, CE, UL, CUL, FCC-B, RoHS and IPX1.

Characteristics

  • Dispaly: 15" diagonal TFT Active Matrix Panel
  • Colors: 16.2M (6 bits + FRC)
  • Resolution: 1024 X 768 (Max.)
  • Brightness: With Touch Capacitive: 225 nits (typical) / 900 nits (typical)
  • Touch screen: Projected Capacitive: 10 dot
  • Touch Interface: USB (type B)
  • Popwer Supply: AC 100 ~ 240 (V)
  • Dimension: 350.8 (W) X 306.5 (H) X 202.0 (D) mm
  • Weight: 4,5 Kg





FOCUS ON


Energy consumption: Operating:20W (typ.) / Sleep: 3W / Off: 1W
Mounting option: Stand / 100 X 100 mm VESA Mount


Environmental features
Temperature - Operating 0˚C ~ +40˚C
Temperature - Storage -20˚C ~ +60˚C
Humidity - Operating 20% ~ 80% (Non condensing)
Humidity - Storage 10% ~ 90% (Non condensing)


Plug & Play
DDC 2B Compatible


Certifications
TVU, CE, UL, CUL, FCC-B, RoHS ,IPX1

Models

932AD060200233

932AD060200233

MONITOR TOUCH MT15 15"

Accessories
Download Datasheet

Contact us to request more information
