P80C
80mm Panel Printer
P80C is a solid panel printer, and a perfect solution for easy integration. Its dimensions are optimized for 80x80mm rolls and its key-operated opening provides system protection and efficient maintenance operations.
80mm Panel Printer
P80C is a solid panel printer, and a perfect solution for easy integration. Its dimensions are optimized for 80x80mm rolls and its key-operated opening provides system protection and efficient maintenance operations.
Partager
Linkedin
Facebook
Twitter
Whatsapp
Email
1. Design
Lean design for easy integration, optimized for 80x80mm rolls
2. Built-in cutter
For full and partial cutting
3. Key-operated opening
Protected system and efficient maintenance
4. Speed
Printing quality 200 mm/s
5. Sturdiness
100KM head, 1M cuts cutter
| Printing method | Thermal with fixed head |
| Resolution | 203 dpi |
| Printing speed | Max 200 mm/s |
| Paper width | 80 mm |
| Paper thickness | From 50μm to 80μm |
| Roll diameter | 80 mm |
| Built-in autocutter | With partial and full cut |
| Interfaces | USB 2.0 full speed Serial RS232 |
| Supported Barcodes | UPC-E, EAN8, EAN13, ITF, CODABAR, CODE39, CODE93, CODE128, PDF417, QR CODE |
| Character Set | European, English, American, Japanese, Korean |
| MTBF Cutter | 1M cuts |
| MTBF Head | 100Km (100M Pulses) |
| Drivers | Windows® (32/64 bit); Printer Driver Installer; Android™ |
| Utility | Memory switch setting Utility, Logo setup tool, Firmware update |

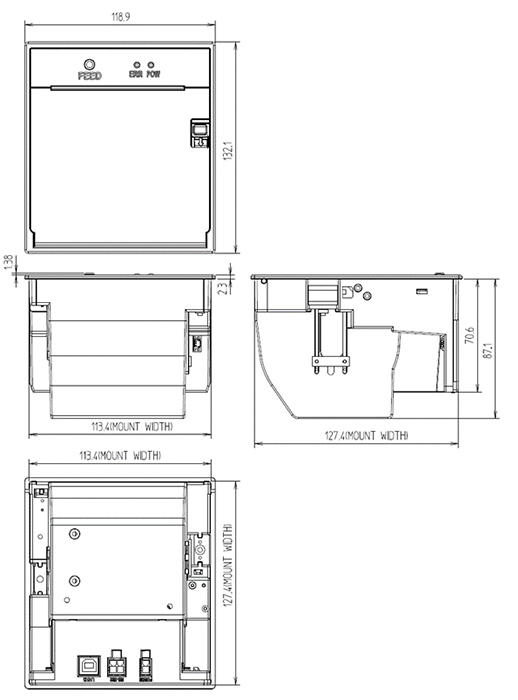

| Dimensions | 118.9 mm (L) x 87.1 mm (W) x 132.1 mm (H) |
