FUSION F

FUSION F

10 " all-in-one PC POS with integrated fiscal printer

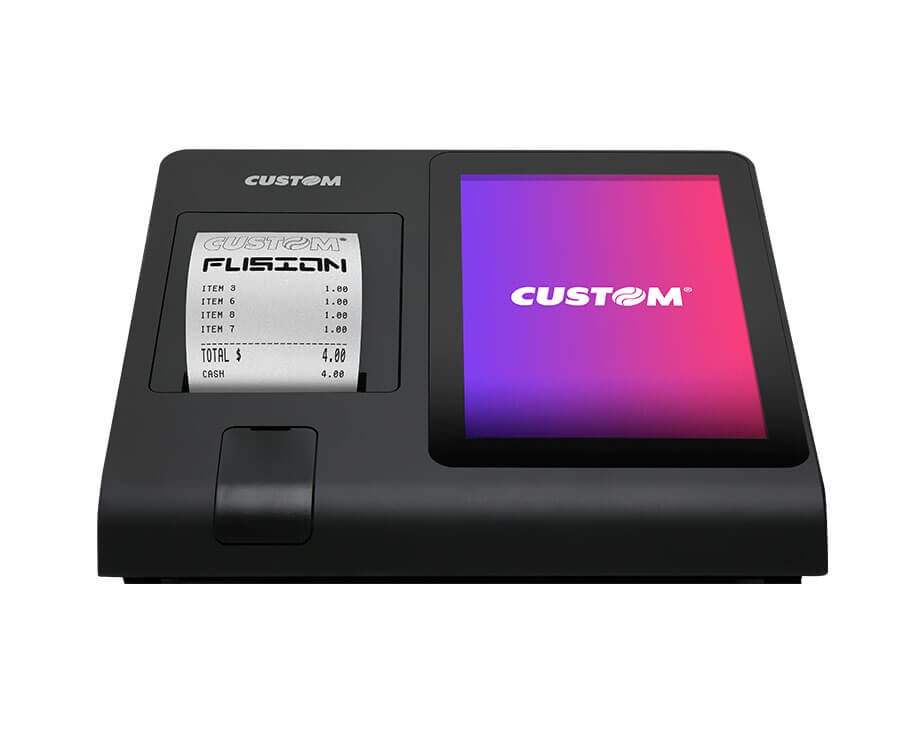

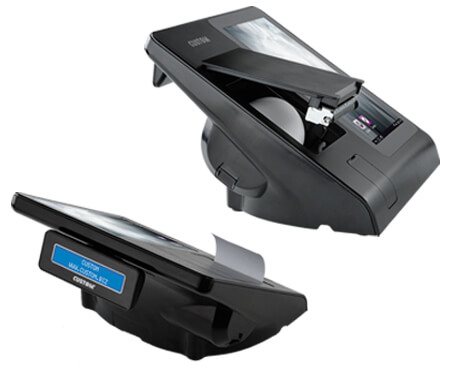

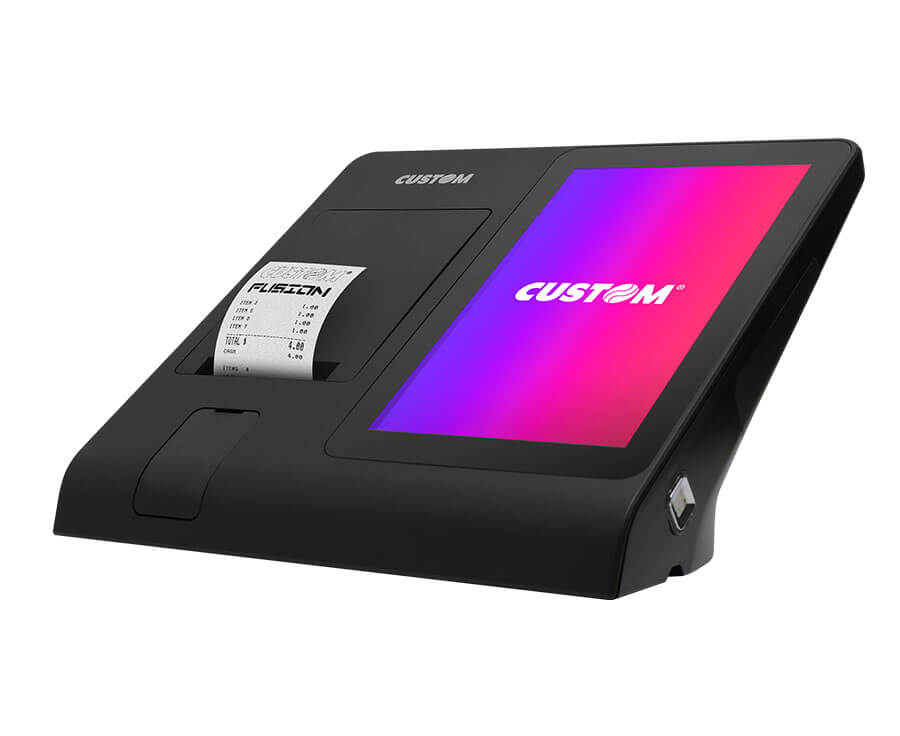

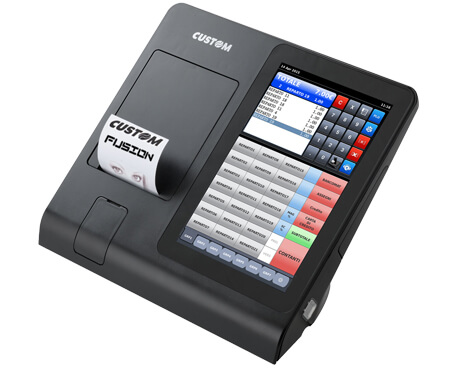

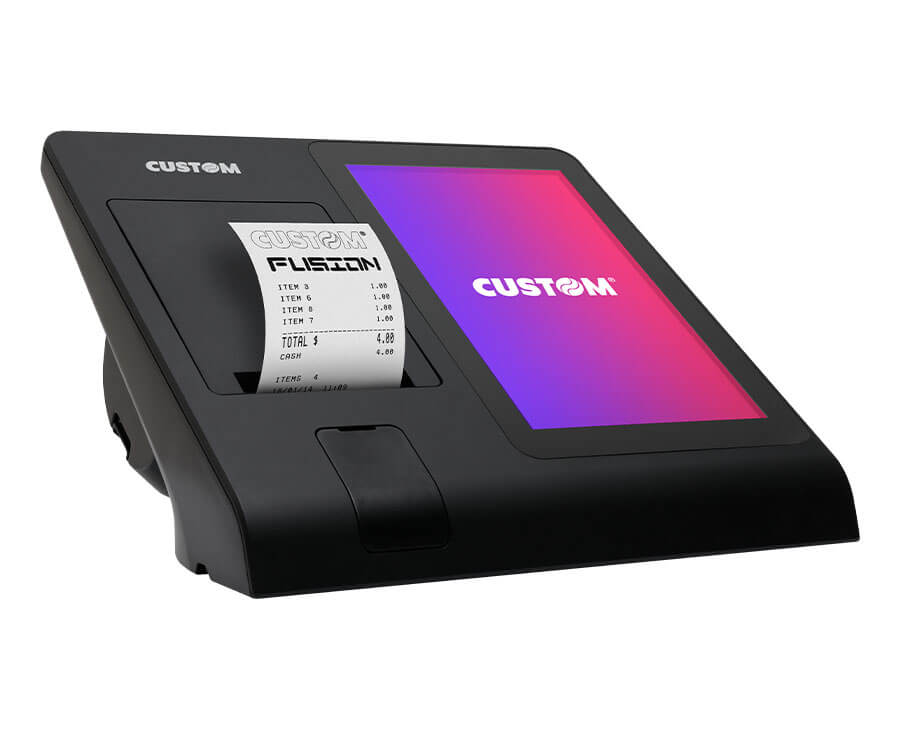

Fusion is the revolutionary new cash point produced by Custom, with a futuristic, compact and stylish design. It's ideal for modern stores management both for flexibility and performance and for the extreme compactness that reduces to the minimum the overall dimensions on the sales counter.Fusion is a 10 " all-in-one PC POS with integrated high speed 80mm fiscal printer, electronic journal on SD Card, fiscal memory and integrated fiscal customer display. It has a WXGA 10'' true flat project capacitive touch screen.

Características

  • Futuristic design, elegant and compact
  • 10" WXGA LVDS monitor True Flat
  • "All in one" PcPOS system
  • Display touch True Flat Projected capacitive
  • Built-in LCD 2x20 characters customer display
  • Paper compartment's automatic opening if paper is finishing


AVAILABLE VERSIONS:


  • FUSION ANDROID/LINUX: with Dual-core Freescale iMX6 ARM Cortex-A9 1 GHz processor, Neon, VFPv3 and Trustzone, 1 GB DDR3 RAM, 8 GB Module Emmc Flash
  • Version with embedded CUSTOM ECR SW available

Acessórios

  • MSR reader
  • Dallas key

This product is not available through Custom America.

Ficha técnica

  FUSION LINUX/ANDROID
Processor Dual-core Freescale iMX6 ARM Cortex-A9 1 GHz, Neon, VFPv3 and Trustzone
Support to Android 6.0
Electronic Journal SD Card SLC Industrial "long life", up to 1,500,000 lines (about 300 rolls)
Mass Storage DGFE on SD Card
Keyboard 7 work panels
Display 10" TFT enlightened on the back side 16:10 (WXGA LVDS) True Flat
Graphic LCD 132x29 pixel enlightened on the back (customer's side) connected to internal serial
Paper width 80 mm
Printing speed 190 mm/sec
Interfaces 1 x HDMI
2 x COM RJ45 External serials (+ 2 internal serials)
1 x RJ11 Port for drawer
4 x 2.0 external USB (+ 3 x 2.0 internal USB)
1 x external MiniUSB (for DGFE data extracting and fiscal memory)
1 x Intel 82574 Gigabit Ethernet Controllers
1 x Serial ATA interface - SATA 2.0 3Gb/s
PLUs 30 programmable
Items 10
Customers 10
Users 2
Payment types 10
Price Modifiers 20
VAT rates 6
Reports Fiscal, financial, departments
Protocols Custom and DLL Custom
Drivers Android
Linux
Dimensions 316mm(L) x250mm(P) x200mm(A)
Resolution 203 dpi (8 dot/mm)
Paper roll dimension max 80 mm
Medium consumption 1.6 A
Power supply External power supply adapter 24V - 3A
Weight 2,5 Kg
Baixar pdf

Entre em contato conosco para mais informações
