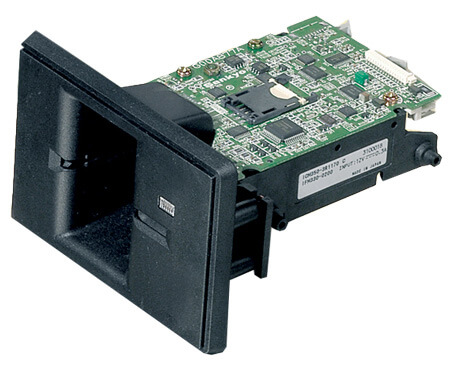

ICM 330/350

ICM 330/350

Triple track magnetic cards (ISO/IEC 7811) manual frontal insert reader and chip card soft-landing (ISO/IEC 7816) reader/writer with printing head and high MTBF IC contatc holder.ICM 330 is the first manual hybrid reader available with USB interface. (RS232 model also available) Complete with manual anti-dust shutter, designed to prevent the foreign article inside, for example coins, small stick, etc... This feature makes ICM 330 suitable for unattended applications.High quality magnetic reading, also thanks to a deep card insertion. ICM 330 manages more well-known memory cards like Gemplus, Siemens, Avotel.ICM 330 is suitable for internet kiosks, ATMs, vending machines, parking and self-service machines.

Características

  • Exclusive anti-intrusion shutter
  • USB or RS232 Serial interface
  • EMV 4.0 approval
  • DLL available
  • Power supply 12 - 24V

Acessórios

O que está na caixa:


  • Dispositivo, manual, software de demonstração

Ficha técnica

Tipo Manual
Stripe magnético 3 track read
Contacto IC Read/Write (protocol T=0 and T=1)
Certificado EMV 4.0
Shutter Manual plastic shutter, anti-dust and anti-intrusion
Interfaces USB or RS232
Módulos SAM 1 SAM socket on-board (possibility to extend until 4 external SAM sockets)
Alimentação +24 Vdc (ICM350-3R1290);
+12Vdc (ICM350-3R1270, ICM330-3R1270)
MCBF Mag.: 500K
IC Card: 300K
Dimensões 80 x 138.1 x 50mm

Modelos

941BT070900100

941BT070900100

CARD READER ICM330-3R1270 R-W EMV1


942BT150200100

942BT150200100

CARD READER ICM350-3R1270 R-W FLAT BEZEL


941BT070800200

941BT070800200

READER ICM350-3R1290 R-W USB FLAT BEZEL


Entre em contato conosco para mais informações
