VKP60

60mm Ultra-Compact Receipt/Ticket Kiosk Printer

VKP6O is the kiosk printer for receipt and ticket printing. Thanks to its multiple configurations, it is suitable for a wide  variety of self-service applications. Compact, versatile, and provided with useful features such as anti-jamming, full and partial cutting, this device can be employed in any type of kiosk thanks to its adjustable two-position roll holder. VKP60 is available in three different configurations: compact, paper mouth and presenter.

VKP80III VKP80III VKP80III

High versatility

The wide range of accessories make it a suitable for every application

Interface friendly

USB is default, serial and ethernet are available as optional

Eco friendly

Power and paper saving modes

VKP80III

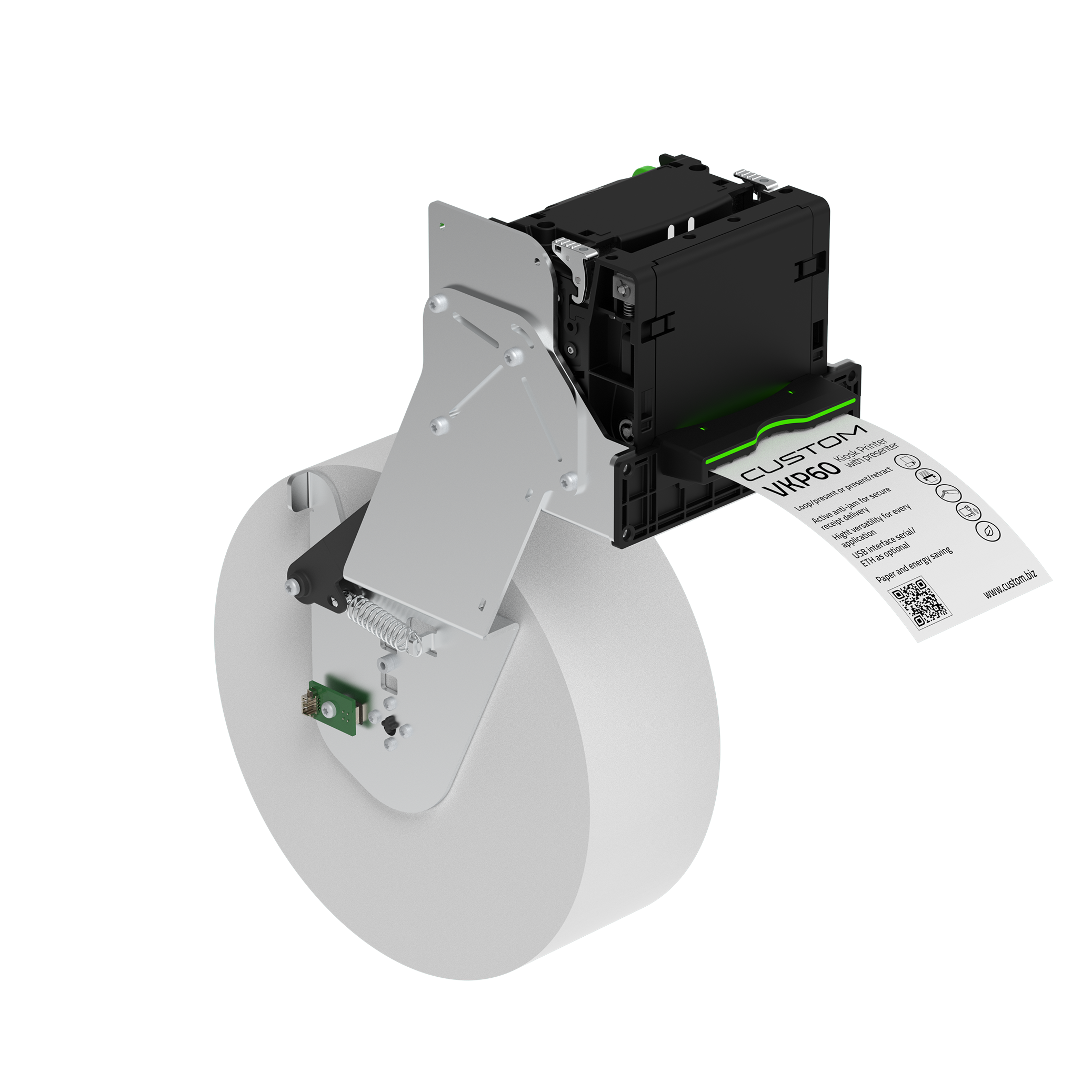

VKP60 Presenter

VKP80III

One model, two configurations

Loop/present or present/retract (patented).

Easy printer swap

To replace installed unit without tools

VKP60 Compact

VKP80III

Active anti-jam

Reduces the need for technical service and allows a reliable receipt delivery

Performance and compactness

Ultra-compact solution capable of total and partial cut

Markets

  • Self-Service Self-service kiosks
  • ATM Banking
  • Slot Machine Gaming machines
  • Parking Parking systems
  • Kiosk Queue management systems
  • Gas Station Gas stations
  • Self Payment Payment terminals

WIRELESS ROLL HOLDER

Enhanced monitoring of paper consumption and greater accuracy
The device enables the printer to calculate the diameter of the paper roll in real time.
Easier installation
Wireless connection of printer and paper-end sensor.
Easier and more flexible alarm
Paper-end threshold precisely defined by the SW and not by the mechanical sensor position.
Wireless paper-end sensor
Wireless roll holder

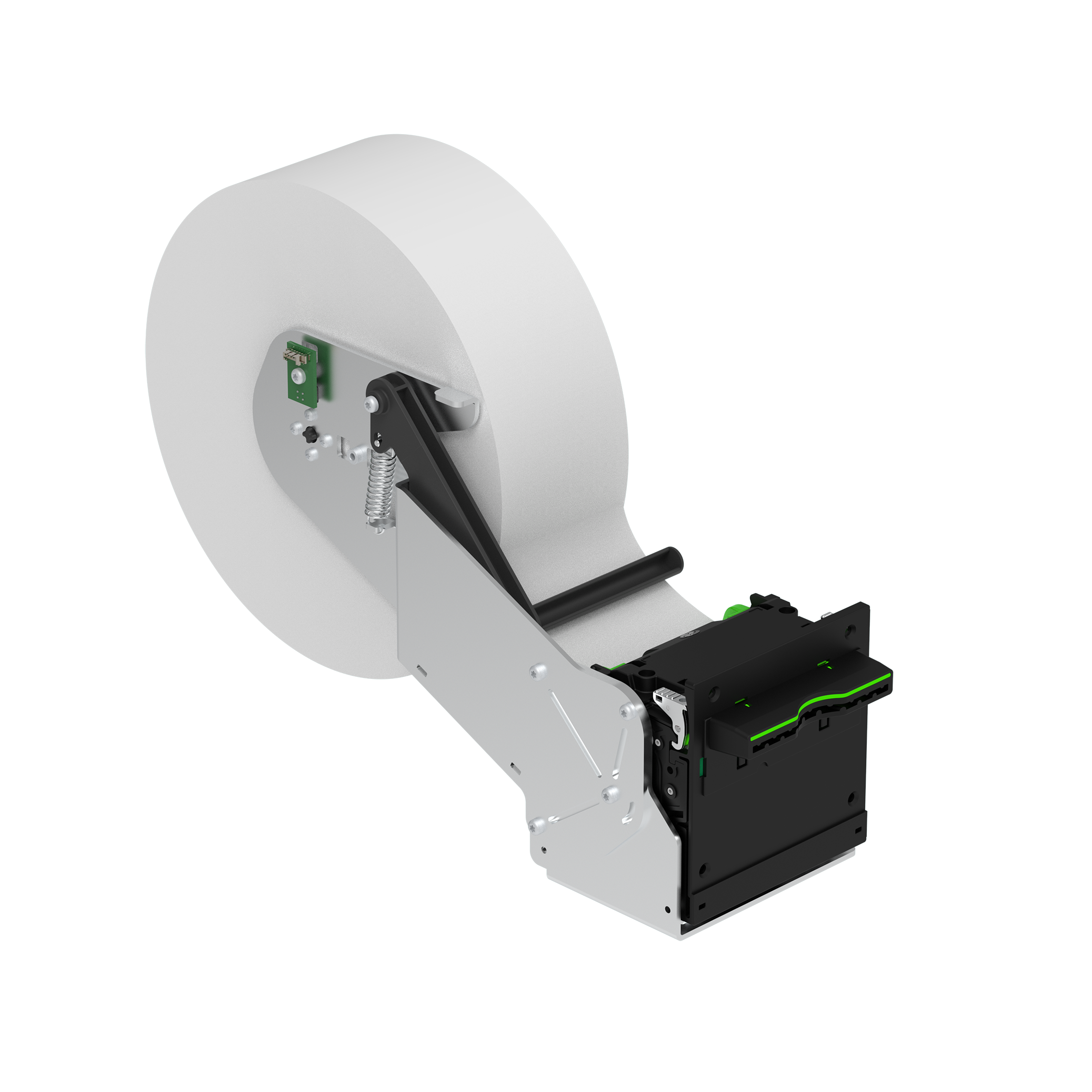

The VKP60 printer range is completed by the wireless roll holder: no cables are needed, the sensor detects the amount of paper in real time.
Operating mode
  • The wireless sensor is natively supported by all VKP60
  • The near paper end setting can be adjusted manually
  • A special function makes it possible to read the diameter of the paper roll with an approximation of 0.5 mm
  • Limit waste and increase TCO. The knowledge of paper level allows to optimize roll supply plan.

Acessórios

  • Roll holder bracket VKP60 with NPE
  • Roll holder bracket wireless VKP60 Compact
  • Roll holder bracket wireless VKP60 Presenter
  • Roll holder bracket VKP60 Presenter with NPE
  • Wireless roll holder VKP60
  • VKP60 adapter to 12Vdc
  • VKP60 compatible TG2460 fixing kit
  • Dongle ETH VKP60
  • Dongle RS232 VKP60
  • Power supply 24V 60W connector DIN

Programas

Certifications

Paper Saving - ISO 14021

Paper Saving Mode

This product thanks to the Paper Saving Mode, is capable of reducing paper usage by 30%(1) while maintaining the same amount of data present on the ticket/receipt.

(1) The reduction refers to the total length of the ticket, measured across two reference lengths (58 and 40). The Paper Saving Mode option does not affect the printing of the Header and Images sections present on the ticket and which remain unchanged.

Energy Saving - ISO 14021

Energy Saving Mode

Our latest generation printers can reduce stand-by power consumption by up to 50% with the firmware option Power Saving Mode.

Ficha técnica

  VKP60 - Compact VKP60 - Paper Mouth VKP60 - Presenter
Resolution 203 dpi
Power supply 24V, 12V adapter (optional)
Printing speed up to 200 mm/s @24V
Paper thickness 50 - 130 μm 50 - 100 μm
Roll diameter max. 100 mm (with CUSTOM roll holder)
Paper width 44, 50, 54, 58, 60 mm
Cutter Total and partial cut Total cut
Interfaces USB 2.0, Virtual Com, RS232 or ETH (optional)
Sensors Paper present, cover open, printhead temperature, cutter home, black mark, anti-jam, optional: near paper end Paper present, cover open, printhead temperature, cutter home, black mark, paper in output, optional: near paper end
Character set PC437, PC850, PC858, PC860, PC862, PC863, PC864, PC865, PC866, Katakana, WPC1250, WPC1251, WPC1252,
WPC1253, WPC1254, WPC1255, WPC1256, WPC1257, WPC1258, Chinese GB18030, Korean PC949
Supported barcodes UPC-A - UPC-E - EAN13 - EAN8 - CODE39 - ITF - CODABAR - CODE93 - CODE128 - CODE32
Codice QR - Aztec - PDF417 - Datamatrix - GS1 Databar
Print head life 200 km / 100M pulses
Cutter life 1M
LED paper mouth No Default
Drivers Windows® (32/64 bit), CUPS Linux (32/64 bit), OPOS, Java POS, Status Monitor SDK
SW tools PrinterSet, CPT, Windows® API, Driver Manager, AndroidTM API, iOS API
Operative temperature -20 to +70ºC ; 10 to 90% RH (no condensation)
Dimensions 86 mm (W) x 58 mm (D) x 81 mm (H) 86 mm (W) x 78.5 mm (D) x 89.5 mm (H) 109.8 mm (W) x 99 mm (D) x 87.3 mm (H)
Weight 330 g 340 g 453 g

Modelos

915NA010100300

915NA010100300

PRINTER VKP60 USB RS232 COMPACT

Acessórios
915NA020100300

915NA020100300

PRINTER VKP60 USB RS232 PAPER MOUTH

Acessórios
915NA030100300

915NA030100300

PRINTER VKP60 USB RS232 PRESENTER

Acessórios
Baixar pdf

Entre em contato conosco para mais informações
