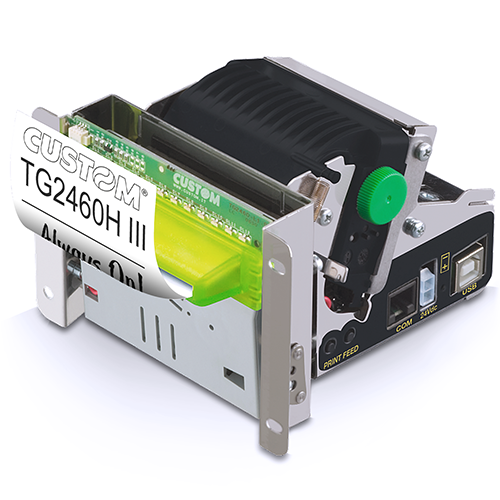

TG2460HIII

TG2460HIII

60mm ticket / receipt printer

  • Metal frame (galvanized/aluminium alloy)
  • High print quality (200 DPI)
  • Paper width: 60mm
  • Paper thickness: from 60 to 80 μm
  • Printing > 140 mm/sec
  • RS232 and USB interfaces
  • Barcodes: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QRCODE
  • Characters: European, International, Thai, Portuguese, Nordic, Arabic, Chinese and Russian
  • Highly reliable cutter: over 1,000,000 cuts or Tear-Off system
  • Sensors: head temperature, paper presence, anti paper jamming, ticket collection, paper end and near paper end
  • LED bezel

Características

  • Patented Anti Jamming System
  • Suitable for tough environments, down to -20°C up to +70°C
  • Availablen version with ejector
  • Illuminated paper bezel
  • Multi-position paper roll
  • Large paper roll: Ø 100 mm
  • Metal structure that provides increased rigidity for the printing mechanism and facilitates motor heat dissipation, resulting in improved stability and reliability over time
  • Improved distribution of the head-roller pressure, resulting in improved printing quality





APPLICATIONS

  • Self-service kiosks
  • Banking machines
  • Gaming machines
  • Parking meters
  • Queue management systems
  • Vending machines

Programas

Ficha técnica

Printing Method Thermal with fixed head
Number of dots 8 dots/mm
Columns 32 - 42 - 56
Resolution 203 DPI
Printing (mm/sec) 140mm/sec
Character set PC437, PC850, PC860, PC863, PC865, PC858, PC866, GB2312
Printing Format Normal, height and width from 1 to 4, bold, negative, underlined, script, italic
Printing Direction Straight, 180°
Paper width 60 mm
Paper weight from 55 to 70 g/m²
Paper thickness from 60 to 80 μm
Roll Dimension 100 mm
Sensors Head temperature, paper jamming, paper presence, notch presence, optional: almost external paper end
Emulation Custom/POS, TGH
Interfaces RS232 + USB
Data Buffer 2 kB
Flash Memory 1 MB
Graphic Memory 2 logos of 448x584 dots
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
Linux (32/64 bit);
Virtual COM (Linux or Windows 32/64 bit);
Android™
Software Tools Status Monitor, PrinterSet, CustomPowerTool, Custom Windows API
Power supply 24V +/- 10%
Medium consumption 0.62A  (12.5% dots turned on)
MTBF 420,000 hours (electronic board )
Head Life 50Km/100M pulses
Operating temperature -20°C + 70°C
Dimensions 100x120(h)x93 mm (with front) - 118x80(h)x114 mm (with automatic cutter)
Weight 0.6 Kg

Modelos

915CG040300300

915CG040300300

PRINTER TG2460HIII USB RS232 CUT HC STD


915CG040200300

915CG040200300

PRINTER TG2460HIII USB RS232 CUTTER


915CG040400300

915CG040400300

PRINTER TG2460HIII USB RS232 CUTTER EJECTOR


915CG030141300

915CG030141300

PRINTER TG2460HIII USB TEAR OFF TRASP. BEZ


Entre em contato conosco para mais informações
