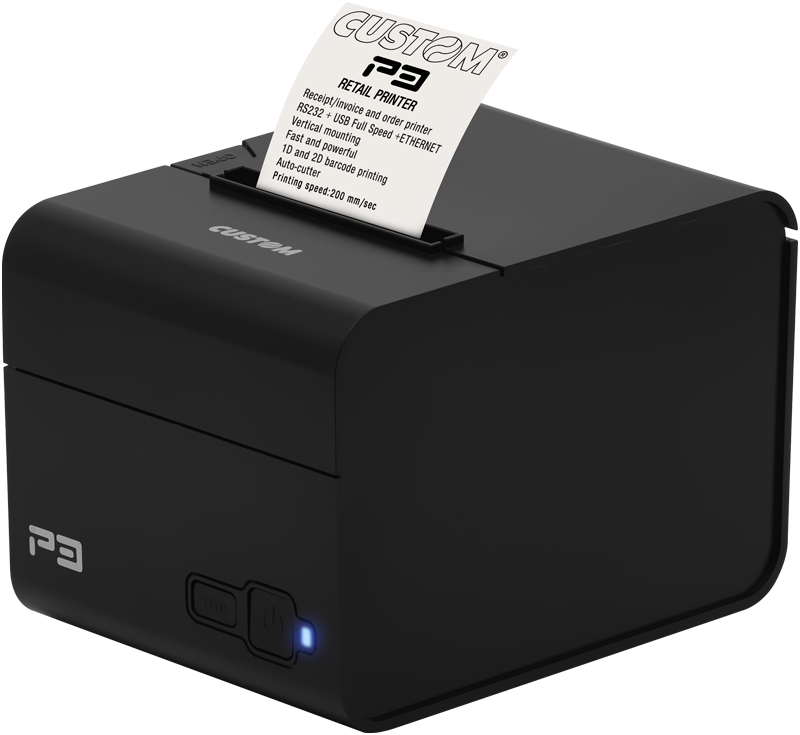

RETAIL Printer
P3 is the ideal thermal POS printer for the retail and hospitality sectors. Thanks to its compact and robust design, it adapts to any Point of Sales environment. P3 stands out for its reliability and printing quality. It is equipped with a long-life printing head and a cutter for automatic receipt cutting which guarantees maximum functionality. P3 is available with triple interface: USB 2.0 Full Speed - Ethernet - Serial and 2 drawer drives.
PrinterSet to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.
VIRTUAL COM Software Tool to create a virtual serial port on Windows PC (XP,Vista,7.8) capable of connecting Custom devices, physically linked via USB or ETHERNET, in such a way as to be compatible with software applications designed for connection in serial mode
Share
Linkedin
Facebook
Twitter
Whatsapp
Email
| Printing Method | Thermal printing, fixed head |
|---|---|
| Number of dots | 8 dots / mm |
| Resolution | 203dpi |
| Printing (mm/sec) | 200mm/s |
| Auto-cutter | Cutter life 1 million cuts Partial cut |
| Printing Direction | Normal, 90°, 180°, 270° |
| Printing Format | Height and width from 1 to 8, bold, reverse, underlined, italic |
| Character set | Standard font, extended chinese 18030, Koreano PC949 |
| Numbers of columns Characters |
35 49 64 2.25 x 3 1.625 x 3 1.25 x 3 (L x H mm)-Normal |
| Supported Barcode | UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF,CODABAR, CODE93, CODE128, CODE32, 2D barcode PDF417, QRCODE, DATA MATRIX |
| Paper width | 57mm / 80mm |
| Paper weight | from 60 gr/m² to 90 gr/m² |
| Paper thickness | from 63 μm to 140 μm |
| Roll Dimension | max Ø 80mm |
| Sensors | Paper presence Head temperature Cover open |
| Emulation | CUSTOM/POS |
| Interfaces | RS232 / USB Full Speed / ETHERNET |
| Data Buffer | 8 kB |
| Flash Memory | 1 MB internal + 4 MB external |
| RAM Memory | 256 kB internal |
| Drivers | Windows® (32/64 bit) – only on request WHQL and silent installation; Linux (32/64 bit); Virtual COM (Linux or Windows 32/64 bit) |
| Software tools | PrinterSet, Virtual COM, Custom Windows API |
| Power supply | 24 Vdc ± 10% |
| Medium consumption | 1.5A (12,5% dots turned on) |
| Head Life | 150 Km, 100 M pulse (12.5% duty cycle) |
| Operating temperature | 0°C + 50°C |
| Dimensions | 142 mm (W) × 190 mm (L) × 135,5 mm (H) |
| Weight | 1,1 Kg |
