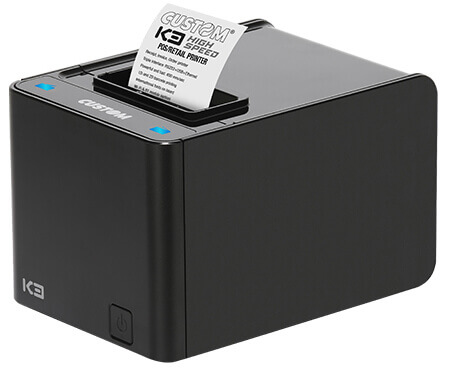

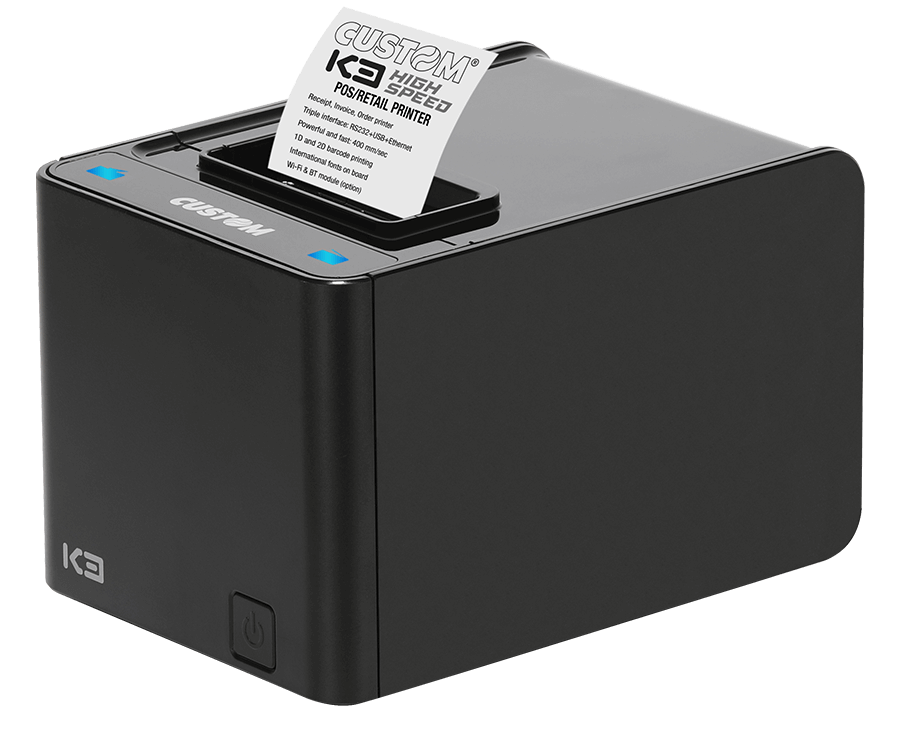

K3 HS

High-Speed Thermal Receipt Printer

K3 HS is a high-performance thermal receipt printer, designed to adapt to any use case. With its 400mm/s (max) speed, it is ideal for printing receipts, coupons, kitchen orders, invoices and tickets. K3 HS features versatile connectivity and provides support for Windows®, Linux, Android™ and iOS® environments.

Characteristics

  1. High performance
    Elegant and highly performing

  2. Fast and powerful
    400 mm/s printing speed

  3. Vertical position
    It can be wall-mounted in vertical position

  4. Great connectivity
    With triple interface

  5. Versatility
    Specially designed to adapt to any POS environment





MARKETS

  • Retail
  • Hospitality
  • Betting

Software

Technical sheet

Resolution 203 dpi (8 dot/mm)
Printing max 400 mm/s
Paper width 58 mm / 60 mm / 80 mm
Paper weight from 55 to 90 gr/m²
Roll dimension max Ø 100 mm
Flash memory Flash SPI 4 MB + 1 MB internal
RAM memory 64 MB
Data buffer 16 kB
Supported barcode UPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QRCODE, DATAMATRIX, PDF417, AZTEC
Power supply 24 Vdc
Head Life 100 km
Cutter 1 million cuts, total or partial
Operating temperature 0°C + 50°C
Interfaces RS232 / USB / Ethernet / Cash Drawer Port
Sensors Head temperature, Paper presence, Detection of black mark, Cover open, Low paper
Drivers Linux CUPS driver (i386, amd64, armv7, armv8);
Virtual COM driver (Windows® 32/64 bit, Linux SC);
OPOS JavaPOS (Windows® 32/64 bit, Linux i386, amd64);
Android™ (CustomAndroidPrintService on PlayStore)
Software Tools and SDKs PrinterSet;
Android Printer Set;
Custom Linux UPG (upgrade tool for Linux);
Custom Power Tool;
Vcom Service Custom Status Monitor Service;
Custom Windows API;
Custom Android API;
Custom iOS API
Dimensions 206 mm (L) × 148 mm (W) × 140mm (H)
Weight 1.98 Kg

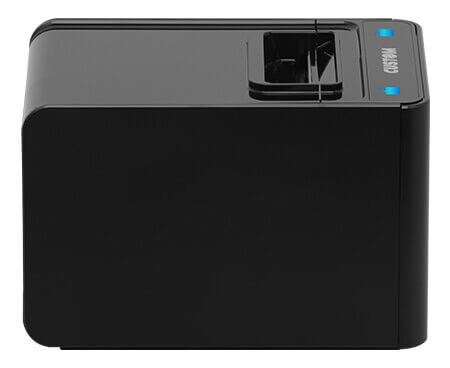

product side wireframe product front wireframe

Models

911HM011300733

911HM011300733

PRINTER K3 HIGH SPEED ETH USB RS232 US
