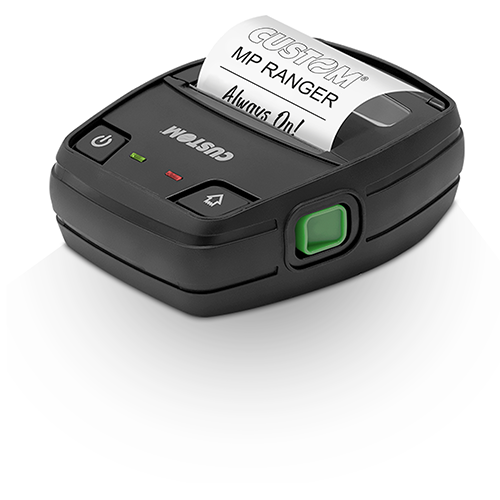

MP RANGER

Mobile printer for mobile receipt / label issuance for logistics and delivery

MP Ranger is a latest generation mobile printer and represents the evolution of Custom's range of mobile printers.

It can print on thermal paper in roll format, either on plain paper or peel-off format labels. Complete with sensors for displaying status and battery level, it allows the printing of 1D and 2D barcodes (QRCODE). It can handle rolls with paper width of 76.2 mm or 80 mm using the special reducer included in the package, and is designed to be used in outdoor working contexts, thanks to the IP54 protection to resist splashing of liquids and dust for use in adverse weather conditions and resistance to falls from 1 meter.

The operational equipment is completed by a clip for belt fastening and as an accessory the practical case with shoulder strap is available for greater protection. The printer is equipped with different charging options, from simple connection via USB Type-C to positioning on single charging cradles. MP Ranger can be connected to any mobile device, from simple phones, to specialized terminals, to handheld mobile computers and tablets with Bluetooth and Wi-Fi functionality thanks to the Wireless technology.

Mobile Printer

Stampante portatile MP RANGER Custom
  1. Mobile and high speed printing, both on paper and on labels
  2. High autonomy and intelligent battery, providing information about its status
  3. Wireless technology with Wi-Fi and Bluetooth: simple pairing thanks to NFC
  4. IP54 protection against liquids and dust - ideal for outdoor use
  5. Different charging options: via USB or single cradles
Stampante portatile MP RANGER Custom

IP54 Protection

Custom MP RANGER
Stampante portatile MP RANGER Custom - Vista frontale

Characteristics

  • Print receipts and labels
  • Roll width 76,2 e 80mm, print width 72mm
  • High printing autonomy: 900 receipt
  • Weight: from 55 g / m² to 100 g / m²
  • Degree of protection IP54
  • Print speed 110mm / sec
  • “Intelligent” 2600mAh lithium battery capable of providing information such as battery status and number of recharge cycles
  • USB 2.0 type-C Full Speed, Wifi and Bluetooth 4.2 BLE interface
  • International fonts on board
  • 1D / 2D barcode printing
  • PrinterSet configuration software
  • Double LED for status and battery status display

Software

Icona PrinterSet

PrinterSet to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.

MP Ranger printer is equipped with Android™ libraries for print management and monitoring, Android SDK containing sample sources for interfacing with the library. Windows® drivers compatible with win7 win8, win8.1, win10 (32/64 bit support) versions are available.

Accessories

  • Case with shoulder strap
  • Single charging cradle

Technical sheet

Printing Method Thermal printing
Number of dots 8 dots / mm
Resolution 203 dpi
Printing speed (mm/sec) 110 mm/sec
Character set PC437, PC850, PC860, PC863, PC865, PC866, PC858 (euro), Cinese esteso GB 18030-2000, Koreano PC949
Supported Barcode Codabar, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 dataBar Stacked, GS1 dataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, ITF, UPC-A, UPC-E, Aztec, Aztec Rune, Data Matrix, PDF417, QRcode, Micro QRCode
Printing Format Height/width from 1 to 8, negative, underlined, italic, expanded
Printing Direction Normal, 90°, 180°, 270°
Supplies Continuous paper and label with gap/notch
Roll width 76,2mm and 80mm
Paper weight from 55 to 100 g/m²
Paper thickness from 61 to 100 μm
Printing width 72 mm
Roll Dimension max 40mm
Emulation CUSTOM/POS
Interfaces USB type-C 2.0 Full Speed
Wifi 802.11 b/g/n
Bluetooth 4.2 BLE
Tool software PrinterSet, Custom Windows API
Data Buffer 16 Kb
Flash Memory 2 MB + 8 MB flsh SPI
RAM Memory 640 Kb + 8 MB SDRAM
Graphic Memory 3 MB for logos (maximum width 576 dot) + 5 MB per font
Driver Windows® (32/64 bit) – only on request WHQL and silent installation
Power supply USB standard port from PC 5 V, 0.5 A (Slow charge)
Battery pack Li-ion 7.2 V 2.6 Ah 18.72 Wh
Battery cycles 750
Print autonomy 720 minutes x 300 ticket
MTBF 3246 hours (electronic board)
Head Life 50Km / 100 M pulses (12.5% pulses)
Sensors Presence of paper, presence of alignment notch, head temperature, open cover, NFC
Operating temperature -10°C + 50°C
Dimensions 149(L) x 53(H) x 122(P) mm
Weight 475gr (battery included)

Models

911MM010200P33

911MM010200P33

MOBILE PRINTER MP RANGER
