VK80

VK80

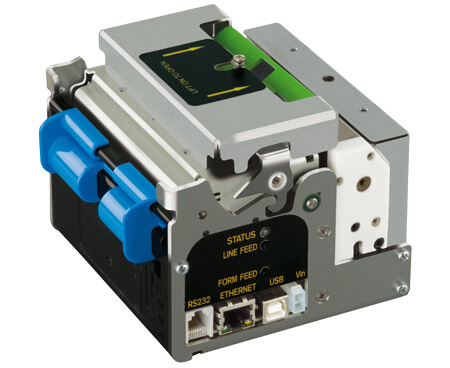

Heavy-duty ticket printer

  • High printing quality at 200/300 DPI
  • Paper width: from 45 to 82.5 mm (infeed guides included)
  • Fan-fold / paper roll holder
  • Printing > 200 mm/sec
  • It prints 1D and 2D barcodes: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, PDF417, DATAMATRIX
  • True Font characters: European, Chinese, Russian, any international font available with a simple drag and drop upload command.
  • Highly reliable cutter: > 1,500,000 cuts
  • Sensors: ticket presence, head temperature, black mark, ticket presence at outfeed, print head unit opening
  • Web server
  • Interfaces: USB + Ethernet (200 dpi - rear connectors) / USB + Ethernet +RS232 (300dpi - side connectors)

Characteristics

  • Extremely compact and flexible
  • Network printer, programmable IP address
  • CUPPS drivers
  • Powerful motor for large paper rolls
  • Easy maintenance
  • Full remote management via internal web Server (only for 200dpi version)
  • Automatic e-mail sending for service purposes
  • Logo and font remote upload
  • Drivers available in the printer flash disk
  • EthLocator SW to search for printers connected to the network and configure their parameters





APPLICATIONS

  • Parking tickets
  • Automatic ticketing
  • Unattended kiosks
  • Metro tickets
  • Railway tickets
  • Boarding passes

Accessories

  • Paper roll holder for paper size from 60 to 82.5 mm
  • near paper end sensor with cable





What is in the box:


  • Device, paper width reduction guide kit, power supply cable

Software

Technical sheet

Printing Method Thermal with fixed head
Number of dots 8 dots/mm
Resolution 203 DPI  / 304 DPI
Printing (mm/sec) 200 mm/sec
Character set PC437, PC850, PC860, PC863, PC865, PC858 (Euro)
Printing Direction Straight, 90°, 180°, 270°
Paper width From 45 mm to 82.5 mm
Paper weight from 90 to 250 g/m²
Roll Dimension Up to 180mm (300mm with customer roll holder)
Emulation Escape Command compatibility
Interfaces Ethernet + USB / USB + Serial RS232 + Ethernet
Data Buffer 24 KB
Flash Memory 384 KB
Graphic Memory 2 logos 608x862 dots
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
Linux (32/64 bit);
Virtual COM (Linux or Windows 32/64 bit);
OPOS;
JavaPOS;
Android™;
iOS
Software Tools PrinterSet, CustomPowerTool, Status Monitor, EthLocator, Custom Windows API
Power supply 24 Vdc ± 10%
Medium consumption 1.1A  (12,5% dots turned on)  if 200dpi
1.4A  if 300dpi
MTBF 500,000 hours (electronic board)
Head Life 100Km / 100M pulses
MCBF 1,500,000 cuts
Operating temperature 0°C + 50°C
Dimensions 123 (L) x 95.7 (H) x 117 (W) mm
Weight 1.6 Kg

Models

915DY020200700

915DY020200700

PRINTER VK80 ETH USB LATERAL CONNEC. 300


Contact us to request more information
