Kiosk Barcode Reader

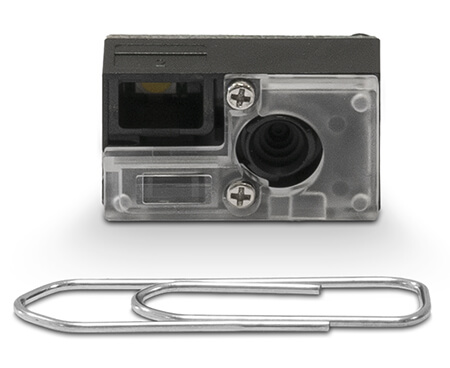

KBR2D is the family of barcode scanners designed for self-service kiosks, ATMs, price checkers, healthcare and for any OEM application, also available in a plastic case version (KBR2D-C). KBR2D is a high-performance, high-volume omnidirectional scanner, capable of quickly and accurately reading any 1D and 2D barcodes, whether printed on paper (badges, receipts, health bracelets) or displayed on the screen of a smartphone or of a tablet. KBR2D scanners are based on CMOS technology for optimal image sensitivity and dynamic range. KBR2D integration is quick and easy thanks to several mounting options.

Characteristics

  • Easily integrated with various OEM applications
  • 1D and 2D barcode scanning
  • Omnidirectional scanning: no need to align barcode and scanner, ensuring user comfort and protecting productivity
  • Long distance reading from 3 to 28 cm without problems even in direct sunlight (100,000 lux)
  • Reading barcodes on screens of smartphones or tablets even with brightness reduced to 25/30%
  • Red colored pointer for precise aiming and optimal barcode acquisition
  • Flexibility: various external mounting options or internal screw holes
  • Integrated decoder
  • Custom ScannerSet configuration software

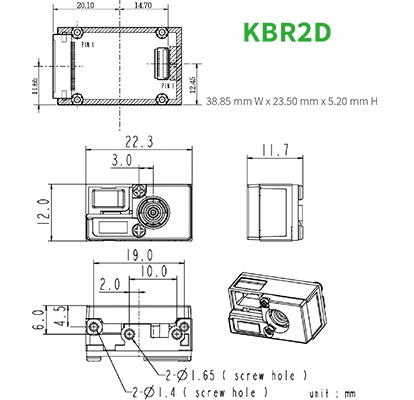

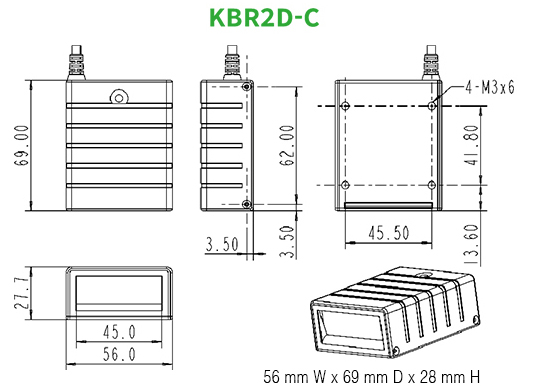

DIMENSION:









Technical sheet

  KBR2D-C KBR2D
GENERAL
Interface USB-HID(or Virtual COM port) RS232/USB-HID(or Virtual COM port)
Barcodes Supported (1D) UPC-A, UPC-E, EAN-8/JAN-8, EAN-13/JAN-13, Code 39, Code 128, Interleaved 25, Industrial 25, Matrix 25, Codabar/NW7, Code 93,
China Post, MSI/Plessey, Telepen, GS1 Databar Omni-directional, GS1 Databar Limited, GS1 Databar Expended
Barcodes Supported (2D) Data Matrix, PDF 417, QR Code, Micro QR Code, Dot Code DISABLED BY DEFAULT: Aztec, Micro PDF 417, Han Xin Code, GM Code

ELECTRICAL
Supply Voltage DC+5V±5%
Current Draw
Stand By (Typ.) 40mA ±10%
Operation (Typ.) 380mA ±10%

PERFORMANCE
Light Source White light LED
Sensor 1280 (H) x 800 (V) pixels
Field of View Horizontal – 55°, Vertical – 35°
Scan Rate 60 fps (at full resolution)
Reading Distance From 3 to 28 cm
Print Contrast Ratio PCS30%@5mil/0.127 mm
Resolution 3mil/0.076 mm@PCS90% Code39, 8mil/0.2 mm@PCS90% QRCode
Reading Angle Test Conditions: Code 39, 10mil/0.25 mm, PCS90%
Pitch Angle/Skew Tolerance 5°~60° (±5°)
Ambient Light Works in any lighting conditions from 0 to 100,000 lux
Roll 360°
Indicator Good read beep

ENVIRONMENTAL
Operating Temperature 0 °C to 50 °C
Storage Temperature -20 °C to 70 °C
Relative Humidity 20% to 95% (Non-condensing)

RELIABILITY
Life Time
MTBF (calculated)		 50,000 hours
Thermal Shock
High Temp. 60°C
Low Temp. -20 °C
Cycle Time 30 minutes for high temp./30 minutes for low temp.
Mechanical Shock 2000G, 0.7ms, half sinus, 3axes
Vibration 8G r.m.s, from 10 to 500Hz, 2 hours per axis, 3 axes

PHYSICAL
Weight
Reader 106 g (optical + board + case) 28 g (optical + board)
USB cable 51 g -
Material Polycarbonate -
Dimension 56 mm W x 69 mm D x 28 mm H 38.85 mm W x 23.50 mm x 5.20 mm H



READING RANGE
Barcode mil/Depth of Field mm KBR2D-C KBR2D
3mil Code39
4mil Code39
10mil Code39
20mil Code39
20mil QR Code
20mil PDF417		 50~90 mm
45~100 mm
30~220 mm
30~280 mm
30~210 mm
30~120 mm


3mil Code39
4mil Code39
10mil Code39
20mil Code39
20mil QRCode
20mil PDF417		 60~100 mm
55~110 mm
50~220 mm
50~300 mm
50~200 mm
50~120 mm


Note: The test is under ambient light 700 ~ 800 Lux.
The difference in depth of field between the two models depends on the fact that in the KBR2D-C model the optics are housed in a frame.



Models

9C3FH010000001

9C3FH010000001

KIOSK BARCODE SCAN 1D/2D OPEN FRAME KBR2D

Accessories
9C3FH010000002

9C3FH010000002

KIOSK BARCODE SCAN 1D/2D COVERED KBR2D-C

Accessories
Download Datasheet

Contact us to request more information
