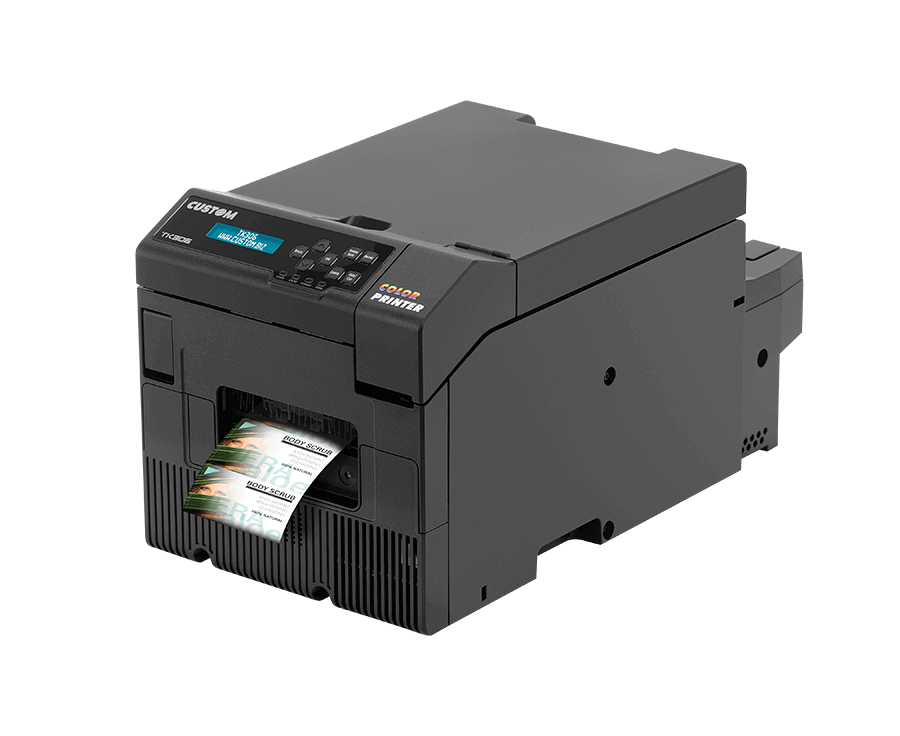

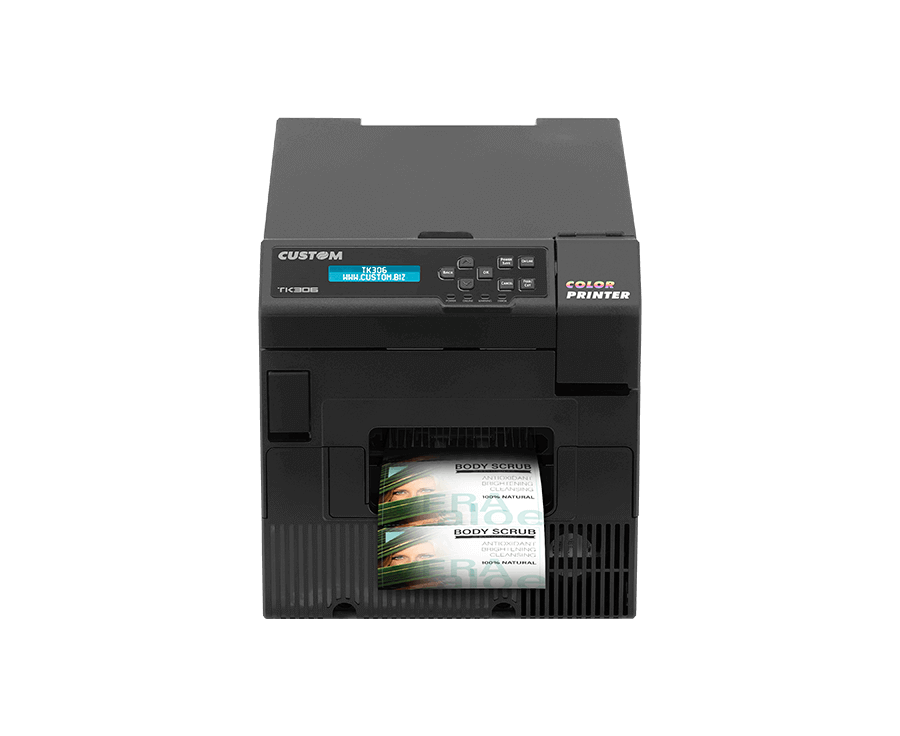

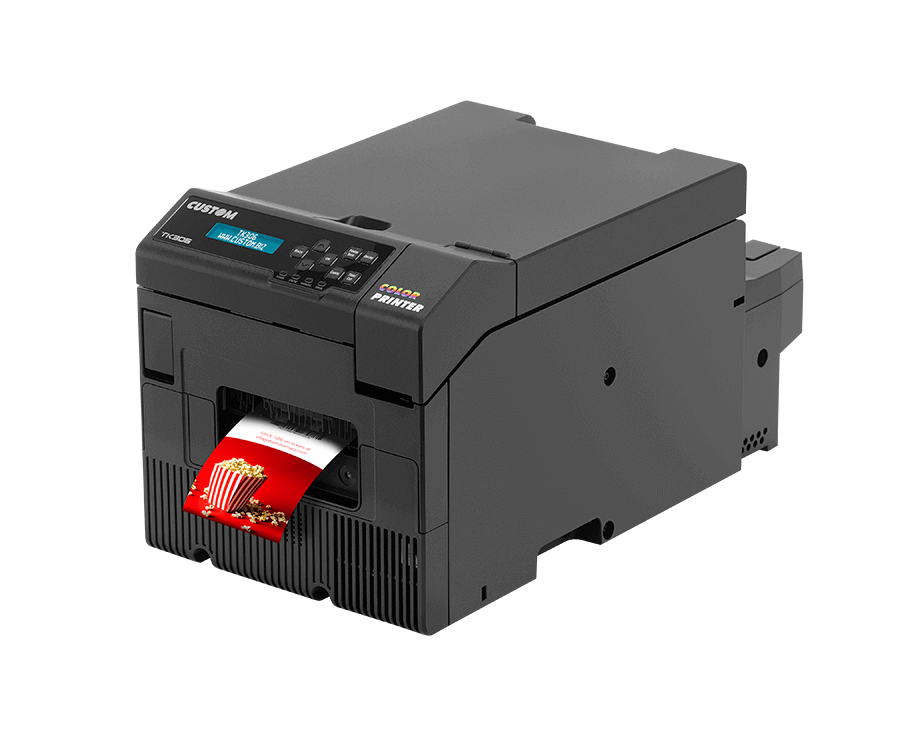

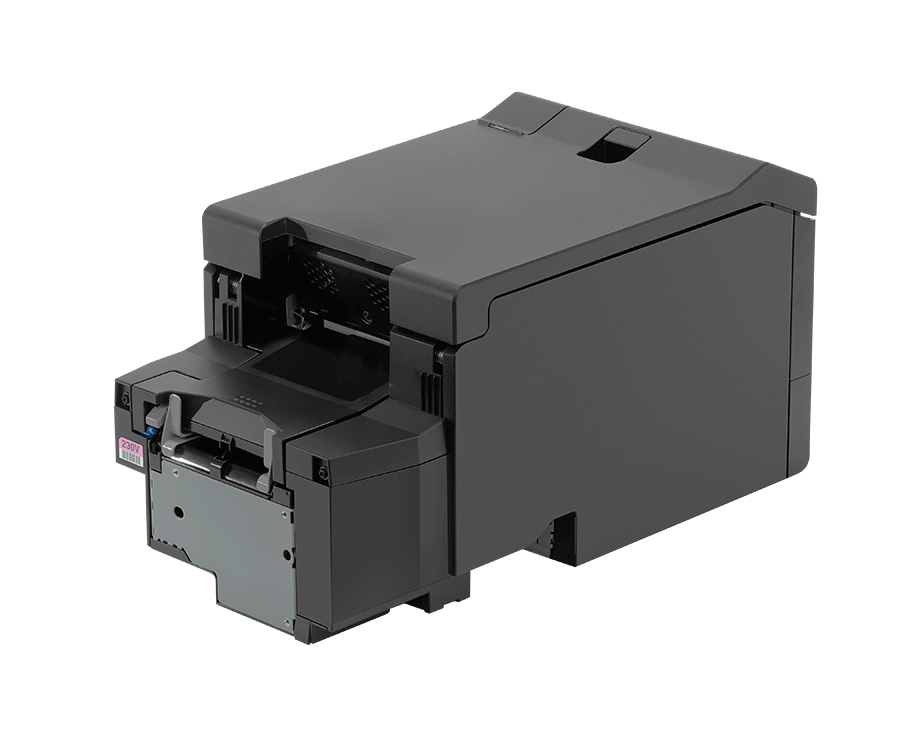

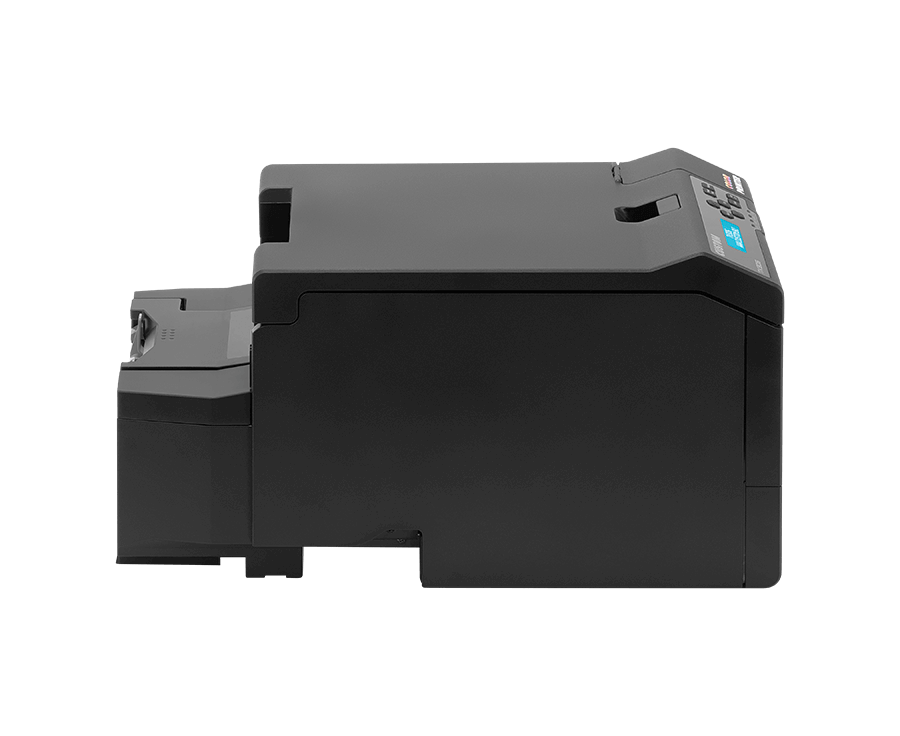

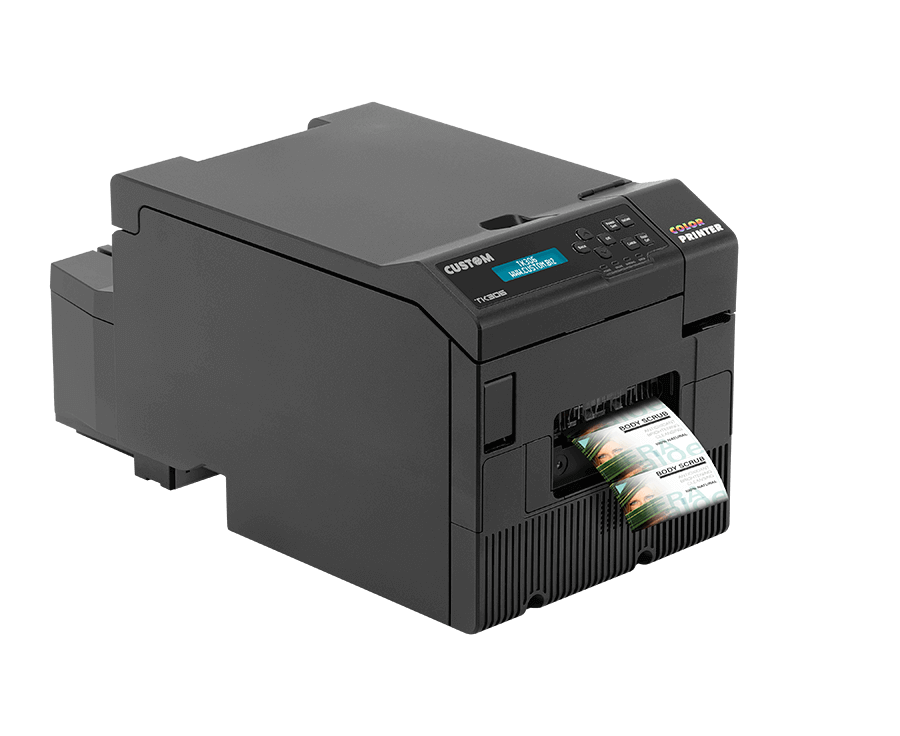

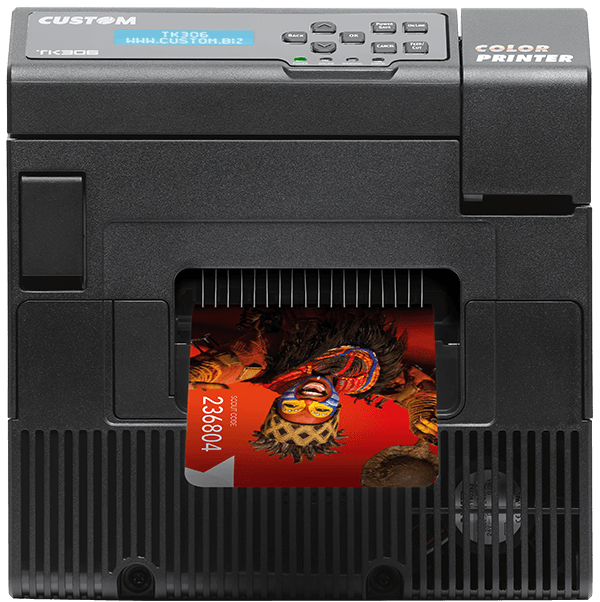

TK306

TK306

LED 3" color label and ticket printer

The TK306 is the smallest LED DRY TONER color printer with photographic print quality (1200 dpi) and zero edge bleed. The TK306 is the first fully featured solution to do away with pre-orders of tickets and wasteful unused tickets after the event; it is therefore ideal for personalised on-demand and spot printing and visual identification applications (badges/tickets/single ID cards/labels). The TK306 prints on normal printer paper, and even recycled paper, for compliance with environmental requirements, combining high quality color output with respect for the environment. The LED print head with no moving parts ensures zero need for the nozzle maintenance typical of inkjet and laser printers. All through single printer: TK306 is a multi tiered printer allowing to replace multiple printers. TK306 is also a full color ISO card printer: instantly print ISO cards on heavy paper as alternative to vinyl and plastic printed cards. The TK306 offers unlimited personalisation options with unequalled print speed and completely silent operation.

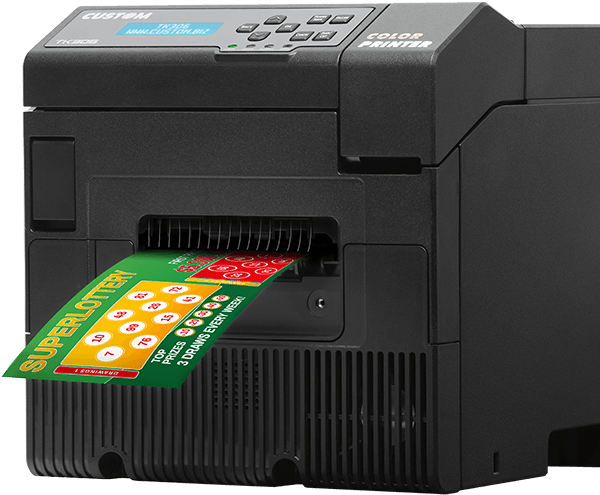

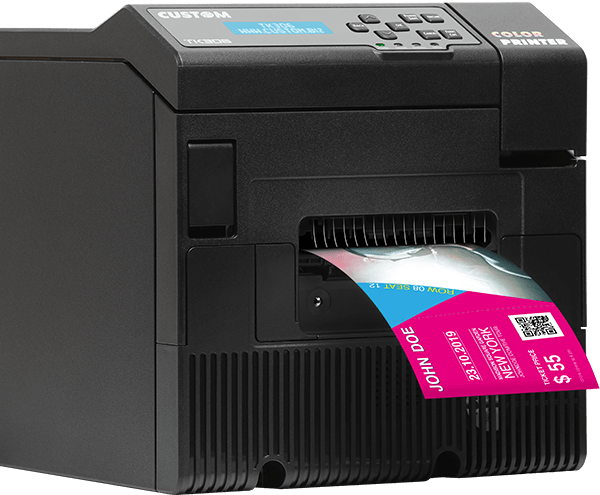

Stampa di un biglietto della lotteria a colori dalla TK306 Custom Stampa di un biglietto teatrale a colori dalla TK306 Custom Stampa di un biglietto di evento a colori dalla TK306 Custom
  • Entertainment
  • Visual Identification
  • Retail
  • Aviation

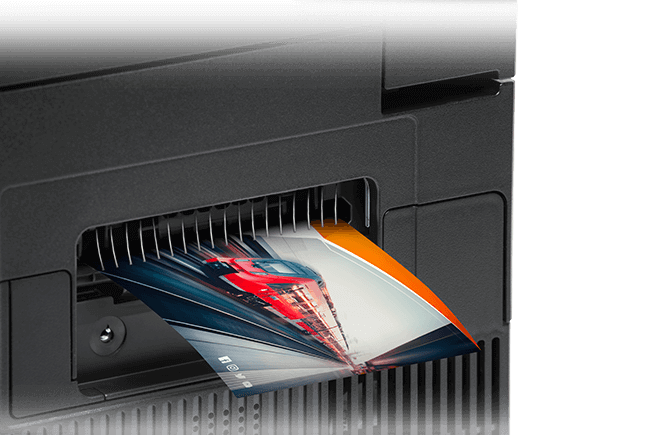

Stampa di un biglietto ferroviario a colori dalla TK306 Custom
  1. PHOTOGRAPHIC PRINT
    QUALITY (1200 dpi)
  2. LED PRINT HEAD
    WITH NO MOVING PARTS
  3. PRINTS ON STANDARD - AND EVEN
    RECYCLED - PRINTER PAPER
  4. UNBEATABLE PRINT SPEED AND
    COMPLETELY SILENT OPERATION
  5. PERSONALISED "ON-DEMAND":
    SPOT PRINTING FOR SINGLE OR FEW COPIES
    AND NO MORE UNUSED TICKETS/LABELS

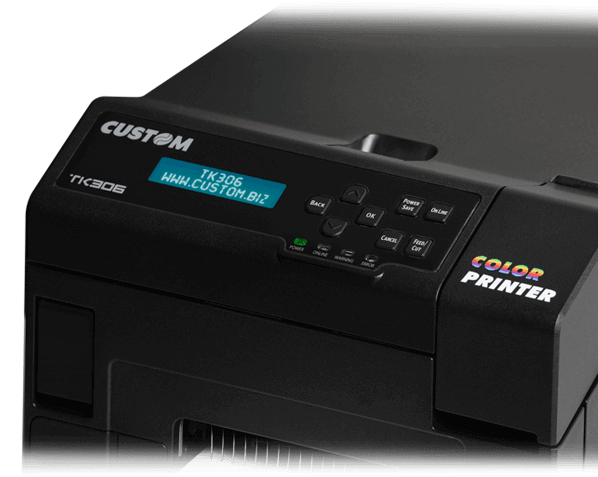

Monitor della stampante biglietti a colori TK306 Custom

Characteristics

MARKETS:

ENTERTAINMENT (sports and events ticketing, personal invitations, wristbands)
VISUAL IDENTIFICATION (meetings, incentive, conferences, exhibitions, badges)
RETAIL (vouchers, promo, coupons, loyalty cards, shelf tag)
AVIATION (first & business class, lounge invitations, vouchers, miles redemption, loyalty cards)


CONSUMABLES AND SPARE PARTS:

Image drum: one image drum cartridge (CMY) with toner
Toner cartridge: all-in-one CMY
Other parts: drive belt, fuser, cutter, pick up roll


Accessories

  • Presenter to hold the ticket ideal for self-service applications

Technical sheet

CPU ARM Cortex A9 (533 MHz)
Technology Electrophotographic LED
Colors Cyan, Magenta, Yellow
Resolution 1200 × 1200 dpi
Speed 2-6 IPS (50-150 mm/s)
Toner settings 4 density levels
Barcode printing 1D and 2D via driver
Panel power + 8 function keys
Display Backlit blue 16 × 2 LCD display
Sensors paper out, notch/hole, cover open
Driver Windows 7, 8, 8.1, 10 (32/64 bit compatibile)
Interfaces USB 2.0 HS, Ethernet 10/100
Flash Memory 16 MB
RAM Memory DDR3 16 bit 512 MB
ROM Memory 64 MB
Paper width 25 - 86 mm
Print width 80 mm
Page length 53 - 550 mm
Paper thickness 0,060 - 0,25 mm
Paper handling Fan fold or paper roll with external roll holder
(max 203 mm)
Power 110 Vac ± 10%
220 Vac ± 10%
Power Consumption 250 W (during operation)
Cutter Rotary (full cut)
MCBF 1.000.000 cuts
Dimensions 198 mm (W) × 380 mm (D) × 205 mm (H)
Weight 9,5 Kg

Models

919MG010300J33

919MG010300J33

TK306 COLOR LED TICKET AND LABEL PRINTER 220V


919MG010400J33

919MG010400J33

TK306 COLOR LED TICKET AND LABEL PRINTER 120V
