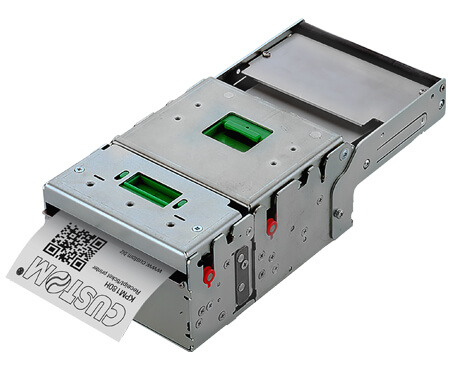

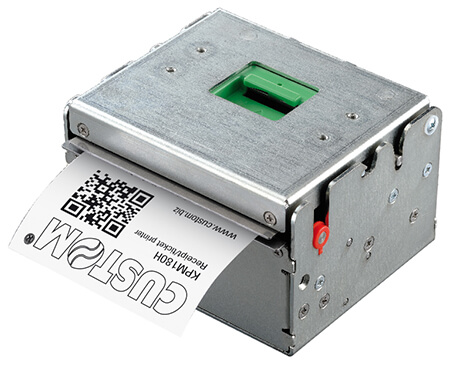

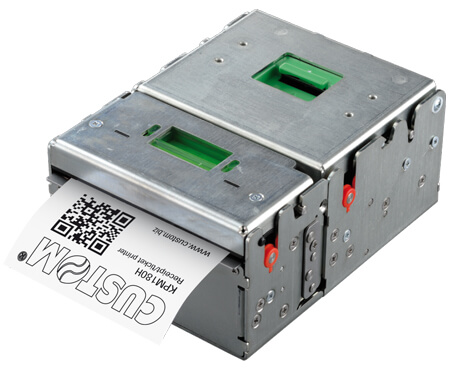

KPM180H

KPM180H

Compact ticket printer for OEM integration

  • Best print quality (200dpi or 300dpi)
  • Adjustable paper width: from 20mm to 82.5mm
  • Paper thickness: from 70 to 255 gr/m2
  • Paper roll or fan fold tickets
  • Printing > 200 mm/s
  • Tear off or cutter (1Ml cuts) with optional dispenser
  • Label processing (tear off and cutter)
  • Print head life: 100Km
  • 1D and 2D barcode printing: UPC-A, UPC-E, EAN13,EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, PDF417, DATAMATRIX, AZTEC, QRCODE
  • RS232 / USB / Ethernet interfaces
  • Drag&drop for graphics and logos
  • True Font character support; Font: any language available
  • Sensors: Head temperature, paper presence, mobile detectors of black mark or translucent gap/hole (setting by software), cover open, external low paper

Characteristics

  • The smallest printer on the market!
  • Powerful processor inside (2MB flash)
  • Hot swap function
  • Automatic ticket ejector (optional)
  • SNAP-IN power supply connector and ON/OFF button
  • Back connections, feed and print buttons, both at the front and back





Applications

  • Coupon/voucher printing
  • Boarding pass and luggage tag printer (AEA)
  • Parking tickets
  • Metro and bus tickets
  • Self service ticketing
  • Theme parks ticketing
  • Healthcare wristband printing

Accessories

The ejector found in the cutter optional module may be programmed in two modes. This makes the printer extremely flexible in terms of compatibility, and easy to integrate in any kiosk:


  • Cut and hold => the ticket is held after cutting, until the user collects it. This function is recommended for installations where the printer is directly connected to the outside of the kiosk.
  • Cut and drop => in kiosks equipped with ticket outlet chute, the ejector can be programmed so as to eject the ticket and drop it. It should be assured that the ticket is delivered to the customer and does not remain inside the kiosk.


Wi-Fi or Bluetooth module available





What is in the box:


  • Device, paper block guide, external low paper sensor with cable, reducer for paper width

Software

Technical sheet

Printing Method Thermal with fixed head
Number of dots 8 dots/mm to 200 dpi
12 dot/mm to 300 dpi
Resolution 200 dpi or 300 dpi
Printing (mm/sec) 200 mm/sec to 200 dpi
150 mm/sec to 300 dpi
Character set PC437, PC850, PC860, PC863, PC865, International
Supported Barcode UPC-A, UPC-E, EAN13,EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, PDF417, DATAMATRIX, AZTEC, QRCODE
Printing Format Height and width from 1 to 8, bold, reverse, underlined, italic
Printing Direction Straight, 90°, 180°, 270°
Paper width from 20 mm to 82.5 mm
Paper weight from 70 to 255 g/m²
Paper thickness Max 270 μm
Printing width 80 mm
Emulation CUSTOM/POS, SVELTA
Interfaces RS232 / USB / Ethernet
Data Buffer 16 Kbytes
Flash Memory 1 Mbytes internal + 8 Mbytes external (of which 4Mbytes available for user)
RAM Memory 128 Kbytes internal + 8 Mbytes external
Graphic Memory "Drag&Drop" graphics and logo
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
Linux (32/64 bit);
Virtual COM (Linux or Windows 32/64 bit);
OPOS
Android™;
iOS
Software Tools PrinterSet; Status Monitor, CustomPowerTool
Power supply 24 Vdc±10%
Medium consumption 1.5A  (12.5% dots turned on)
MTBF 113,000 hours (electronic board)
Head Life 100Km / 100M pulses
MCBF 1,000,000 cuts (optional)
Operating temperature -10°C to +60°C
Dimensions 97.5 (L) x 67 (H) x 108 (W) mm
Weight 0.8 Kg

Models

915AH020900700

915AH020900700

PRINTER KPM180H CUTTER PRESENTER UHF


915AH020600700

915AH020600700

PRINTER KPM180H ETH USB RS232


915AH020300700

915AH020300700

PRINTER KPM180H+CUTTER PRESENTER
