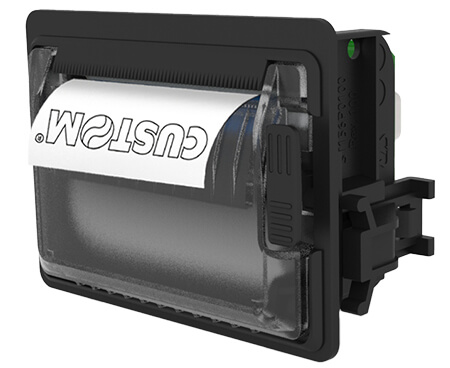

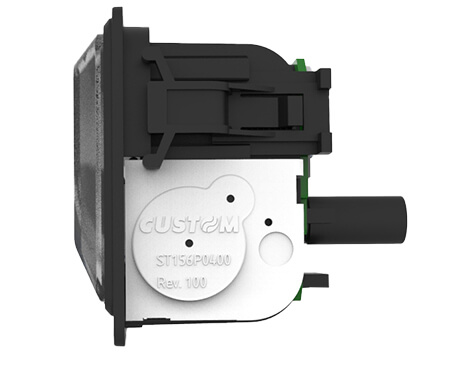

PM2 Mini

PM2 Mini

Compact printing module 2"

PM2 Mini is the compact panel printer with high printing quality, ideal for installation in several technical equipments. The energy efficient and paper saving functions allow to combine performance and attention to the environment. PM2 Mini is also fully compatible with the previous model (mPLUS2) both for hardware and software.


1. New ergonomic design
with a simplified opening  system

2. Paper saving functionality
to reduce paper use

3. Ultra-compact solution




  • Workshop equipment
  • Medical equipment
  • Weighing instruments
  • Fire detection systems
  • Sterilization equipment
  • Control and measurement instruments
  • Fire detection system


  • Power supply
  • Starter Kit: power supply cable + serial/TTL interface 5 Volt


Technical sheet

Printing Method Thermal with fixed head
Resolution 203 dpi (8 dots/mm)
Printing speed max 60mm/sec (@7.5V)
Supported Barcode 1D: UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32
2D: PDF417 and QRcode
Paper width 57 mm ± 0.5
Paper weight from 55 to 70 g/m²
Paper thickness  from 63μm to 85μm
Roll Dimension Ø 30mm, Ø 12mm internal
Printing width 48 mm
Printing mode Normal, 90°, 180°, 270°
Printing format Altezza/Larghezza da 1 a 8, grassetto, negativo, sottolineato, corsivo
Character set International character sets available: all European, Russian, Turkish, Arabic, Chinese (GB18030), Katakana
Sensors Head temperature, paper presence
Emulation CUSTOM/POS
Interfaces RS232/TTL, USB
Data Buffer 16Kb
Flash Memory 8MB (+768 Kb internal)
RAM Memory 256Kb internal
Graphic Memory Logos dynamic management (max. 32 kB graphic memory)
Head life 100Km (100M pulses)
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
CUPS Linux (32/64 bit);
Virtual COM (Linux or Windows 32/64 bit);
Software Tools PrinterSet, Custom Windows API
Power supply from 4 Vdc to 8 Vdc (optional external power supply)
Typical max. 2.7 A
Operating temperature -20 a +70
Dimensions With cover closed: 87.2 mm (L) x 61.2 mm (W) x 62.8 mm (H)
With cover opened: 87.2 mm (L) x 101.2 mm (W) x 62.8 mm (H)
Weight 98 gr
product side wireframe product front wireframe
