D4 302-K

D4 302-K

Label Printer

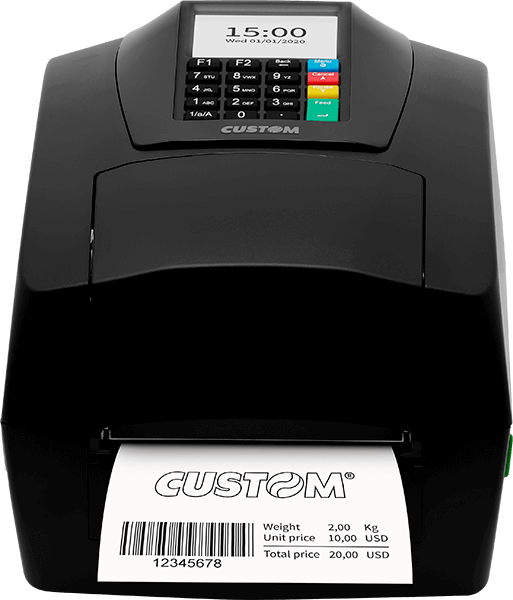

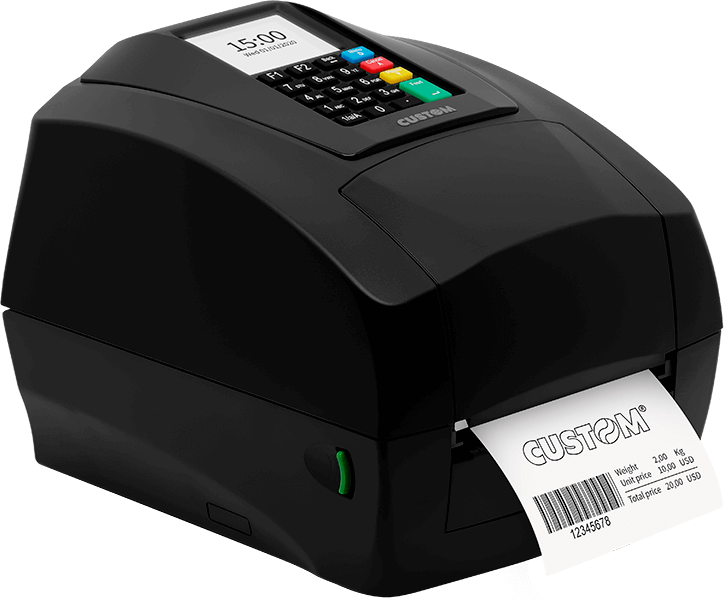

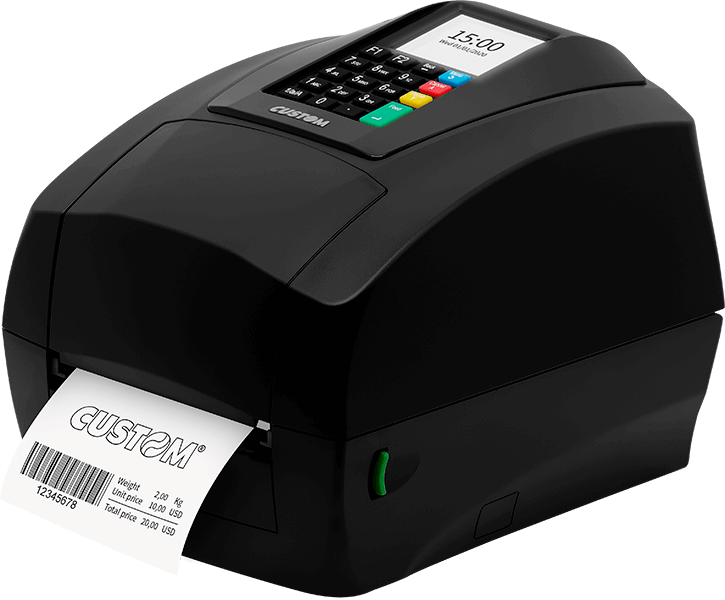

D4 302-K is a compact size 4" desktop label printer with a industrial level equipments and high performance. D4 302-K is equipped with a colorful backlight LCD with clear image display that makes the menu friendly to users and it is also provided with a built in multi functional keyboard, being suitably used in confined space. Multiple communication ports, 19 buttons keyboard, SD slot for the data storage, real time clock for time and date printing application are some of the main features that makes this label printer ideal for all range of application.

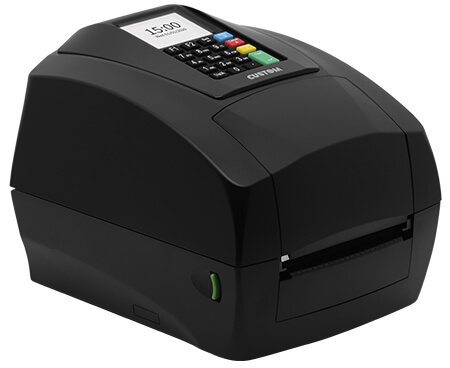

Side of the D4 202 Custom Label Printer Front view of the D4 202 Custom Label Printer Side of the D4 202 Custom Label Printer
  1. Top compatibility
    on the market
  2. Custom expertise
    in printing
  3. Labels, receipts, tickets both in thermal transfer and direct thermal
  4. Full optional
    wide range
  5. Custom Designer Tool
    label designer software
D4 202 Custom Label Printer

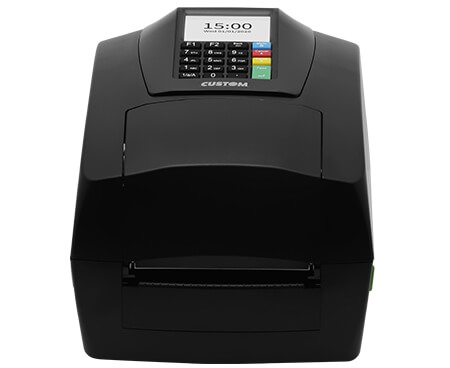

Front view of the D4 202 Custom Label Printer

Characteristics

  • 128 MB Flash memory, 128 MB SDRAM
  • 240 × 320 dots LCD with graphical icons
  • 19 multifunctional keys

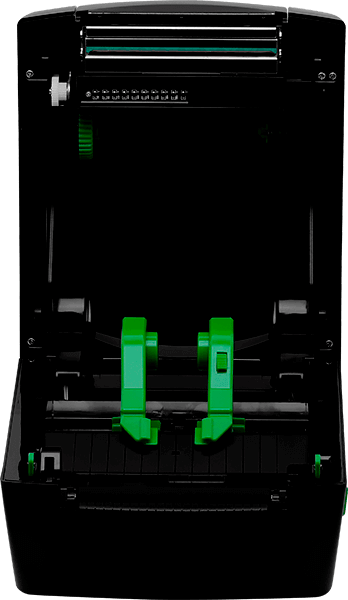

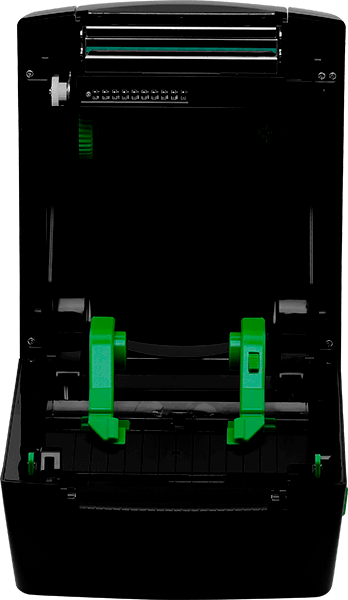

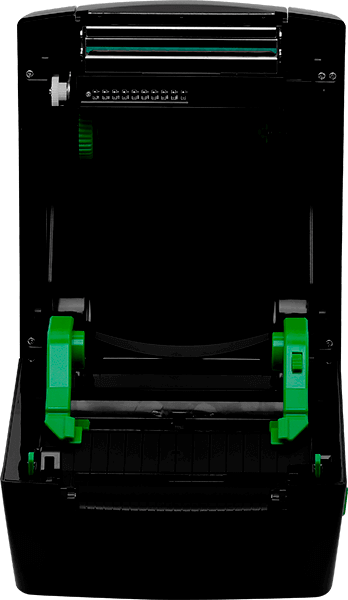

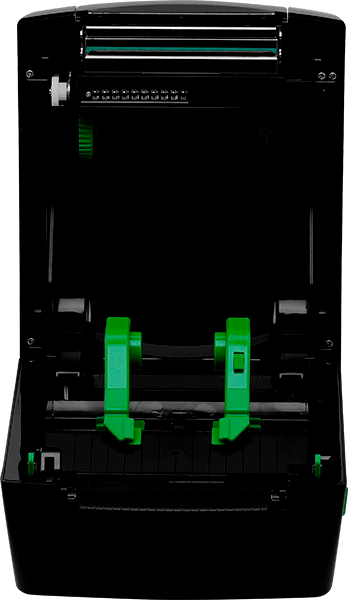

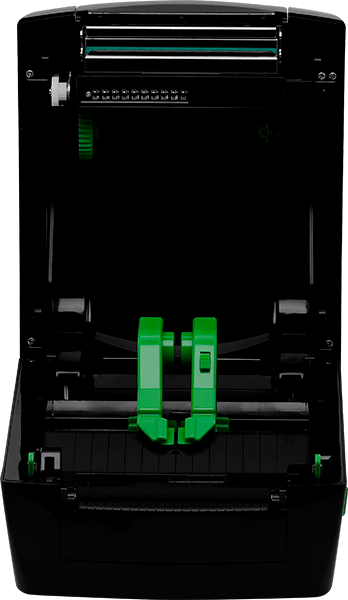

  • Easy paper and ribbon loading
  • Adjustable see-through and reflective sensor
  • Buzzer with red flash light for noisy working place
  • SD card slot for expansible storage, up to 32 GB
  • Keyboard or scanner with USB interface for standalone operation

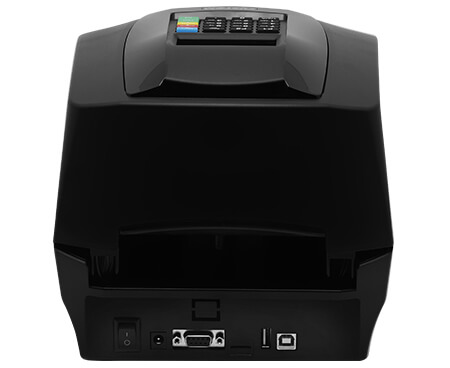

  • Multiple communication ports, USB port, USB master port, serial port, Ethernet port (option)

Software

Certified Partners

Bartender
BarTender is the world's most trusted software for designing, printing and managing barcodes, labels, RFID tags, documents and more.

Technical sheet

Printing Method Direct thermal / Thermal transfer
Resolution 203 dpi
Printing speed 5 ips
Max. Print Lenght 3810 mm
Max. Print Width 104 mm
Sensors Moveable see-through and reflective sensor
Ribbon sensor
Cover open sensor
RAM Memory 128 MB
Display Colorful 2.8" backlight LCD display, 240 × 320 dots
Control Panel 19 multi-functional keys
Media Maximum label width: 110 mm
Minimum label width: 15 mm
Maximum roll diameter: 127 mm
Core diameter: 25.4 mm
Media thickness: 0.06 mm to 0.2 mm
Media type: Continuous, die-cut, tag, fan-fold, black mark
Ribbon OD: 39 mm
Max length: 100 m
Width: 25.4 mm to110 mm
ID:12.7 mm
Ribbon type: Wax, wax/resin, resin
Emulation Language PEPL, PDPL, PZPL
Interfaces USB port
USB master port
Serial port RS-232
Option: Ethernet port 10/100Mbps
Supported 1D/2D Barcodes Code39 stand or extended, Code39 with check digit, Code93, Code128 UCC, Code128 Auto A,B,C mode, EAN8,
EAN8/13 2&5 digit add-on, EAN13, Interleaved 2 of 5, Interleaved 2 of 5 with check digit,
Interleaved with human readable check digit, UCC/EAN 128, UPC-A, UPC-A 2&5 digit add-on, UPC-E,
UPC-E 2&5 digit add-on, UPC Interleaved 2 of 5, Code 11 PDF417, Maxicode, Data Matrix, QR code
Fonts 5 internal expandable bitmap fonts (alpha-numeric)
2 internal expandable bitmap fonts (numeric only)
Downloadable soft font
4 directions: 0, 90, 180, 270 degrees
Image PEPL: PCX, Direct binary graphic
PDPL: PCX, BMP, HEX
Options Peeler kit
Cutter
Ethernet module
Power Switching power adapter
Input: 100 to 240 V, 1.8 A, 50~60 Hz
Output: 24 V, 2.5 A
Audio Beep sound when error occurs
Environment Operation: 5 ºC to 45ºC
Storage: -20 ºC to 50 ºC
Humidity Operation: 10% to 90% non condensing
Storage: 5% to 95% non condensing
Dimensions 263 mm (L) × 200 mm (W) × 188 mm (H)
Weight 2 kg

Models

911MK030100333

911MK030100333

LABEL PRINTER D4 302-K USB RS232 WITH KEYBOARD AND DISPLAY BLACK
