D4 202

D4 202

Label Printer

D4 202 is a compact size 4" desktop label printer with a industrial level equipments and high performance. D4 202 is equipped with a colorful backlight LCD with clear image display that makes the menu friendly to users. Multiple communication ports, SD slot for the data storage, real time clock for time and date printing application are some of the main features that makes this label printer ideal for all range of application. Two models available D4 202 and D4 202 ETH with Ethernet interface on board.

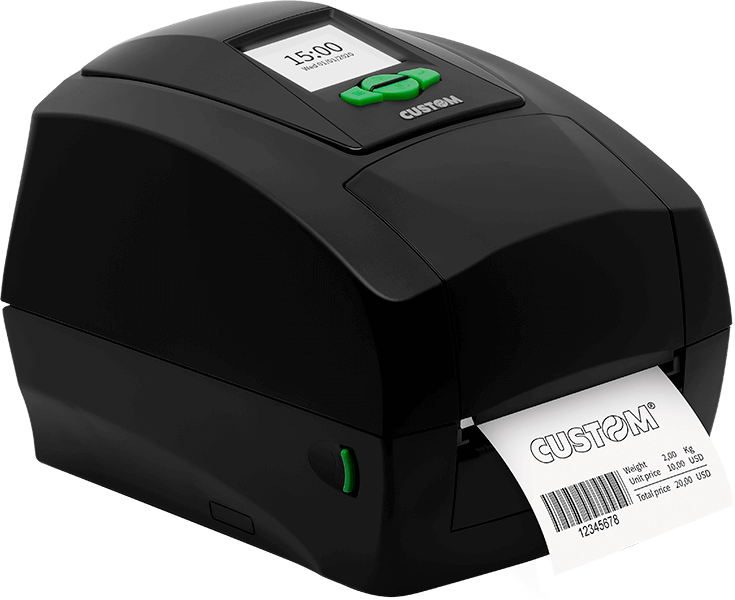

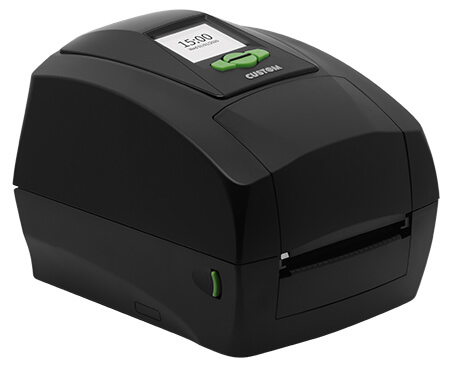

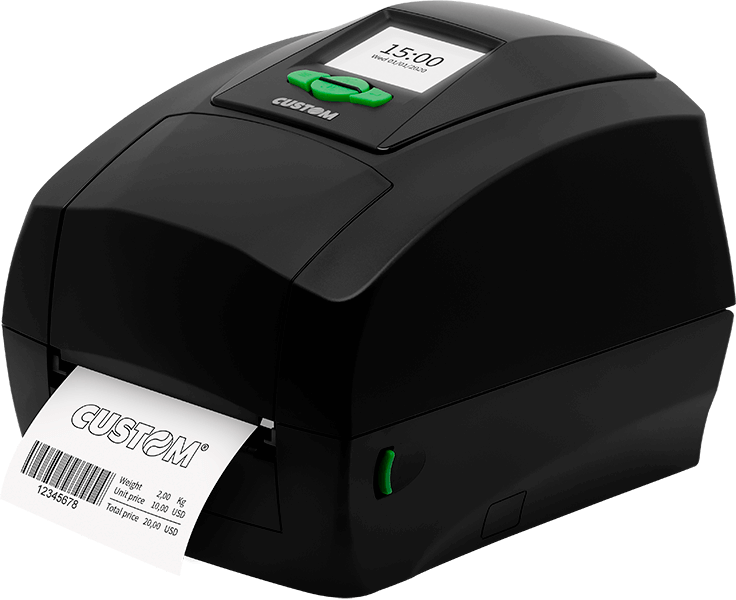

Side of the D4 202 Custom Label Printer Front view of the D4 202 Custom Label Printer Side of the D4 202 Custom Label Printer
  1. Top compatibility
    on the market
  2. Custom expertise
    in printing
  3. Labels, receipts, tickets both in thermal transfer and direct thermal
  4. Full optional
    wide range
  5. Custom Designer Tool
    label designer software
D4 202 Custom Label Printer

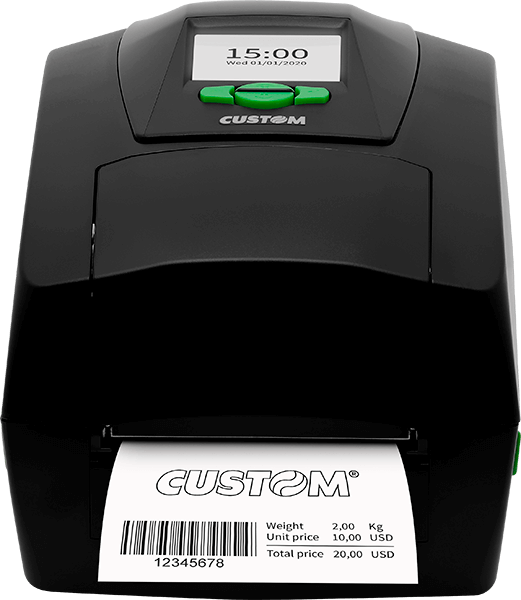

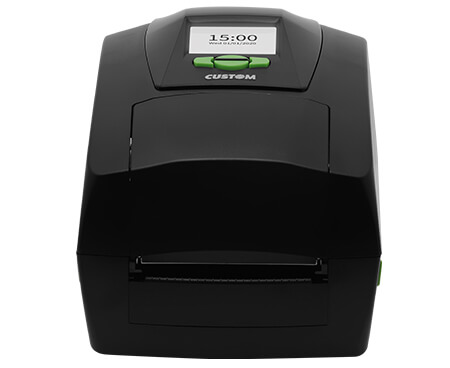

Front view of the D4 202 Custom Label Printer


  • 128 MB Flash memory, 128 MB SDRAM
  • 240 × 320 dots LCD with graphical icons
  • 4 buttons indication
  • Easy paper and ribbon loading
  • Multiple communication ports, USB port, USB master port, serial port
  • Ethernet port on board for D4 202 ETH,
    optional for D4 202
  • Buzzer with red flash light for noisy working place
  • SD card slot for expansible storage, up to 32 GB
  • Adjustable see-through and reflective sensor
  • Keyboard or scanner with USB interface for standalone operation


Certified Partners

BarTender is the world's most trusted software for designing, printing and managing barcodes, labels, RFID tags, documents and more.

Technical sheet

  D4 202 D4 202 ETH
Printing Method Direct thermal / Thermal transfer
Resolution 203 dpi
Printing speed 5 ips
Print Width 104 mm
Sensors Moveable see-through and reflective sensor
Ribbon sensor
Cover open sensor
RAM Memory 128 MB
Display Colorful 2.8" backlight LCD display, 240 × 320 dots
Control Panel 4 multi-functional keys
Media Maximum label width: 110 mm
Minimum label width: 15 mm
Maximum roll diameter: 127 mm
Core diameter: 25.4 mm
Media thickness: 0.06 mm to 0.2 mm
Media type: Continuous, die-cut, tag, fan-fold, black mark
Ribbon OD: 39 mm
Max length: 100 m
Width: 25.4 mm to110 mm
ID:12.7 mm
Ribbon type: Wax, wax/resin, resin
Emulation Language PEPL, PDPL, PZPL
Interfaces USB port
USB master port
Serial port
Ethernet port 10/100Mbps (optional)
USB port
USB master port
Serial port
Ethernet port 10/100Mbps on board
Supported 1D/2D Barcodes Code39 stand or extended, Code39 with check digit, Code93, Code128 UCC, Code128 Auto A,B,C mode, EAN8,
EAN8/13 2&5 digit add-on, EAN13, Interleaved 2 of 5, Interleaved 2 of 5 with check digit,
Interleaved with human readable check digit, UCC/EAN 128, UPC-A, UPC-A 2&5 digit add-on, UPC-E,
UPC-E 2&5 digit add-on, UPC Interleaved 2 of 5, Code 11 PDF417, Maxicode, Data Matrix, QR code
Fonts 5 internal expandable bitmap fonts (alpha-numeric)
2 internal expandable bitmap fonts (numeric only)
Downloadable soft font
4 directions: 0, 90, 180, 270 degrees
Image PEPL: PCX, Direct binary graphic
Options Peeler kit
Ethernet module
Power Switching power adapter
Input: 100 to 240 V, 1.8 A, 50~60 Hz
Output: 24 V, 2.5 A
Audio Beep sound when error occurs
Environment Operation: 5 ºC to 45ºC
Storage: -20 ºC to 50 ºC
Humidity Operation: 0% to 90% non condensing
Storage: 5% to 95% non condensing
Dimensions 263 mm (L) × 200 mm (W) × 188 mm (H)
Weight 2 kg








Contact us to request more information
