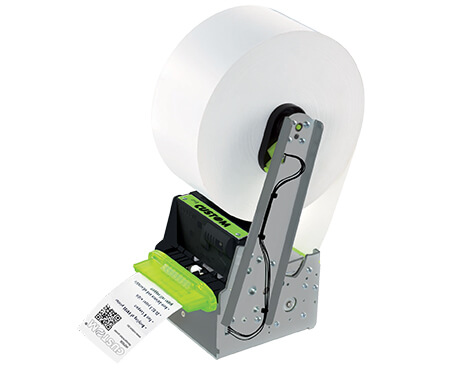

VKP80II RX

VKP80II RX

80mm ticket / receipt printer

  • High print quality (200 DPI)
  • Paper width: from 60 to 82.5 mm (adjustable paper-infeed for different paper widths)
  • Printing > 220 mm/sec
  • Automatic ticket Presenter (speed: > 1000 mm/s)
  • RS232+USB
  • 1D and 2D barcode printing: (QRCODE, PDF417)
  • International fonts on-board: any language available
  • 4MB internal flash memory for logos and fonts
  • Highly reliable cutter: over 1,500,000 cuts
  • Sensors: paper end, black mark, ticket presence, printing unit opening and near paper end on the roll holder

Characteristics

  • Anti Jamming System
  • Automatic Status Back
  • Adjustable paper infeed for different paper widths
  • Self-balancing paper roll holder
  • Illuminated paper bezel
  • Multi-position paper roll
  • The standard roll holder handles paper rolls with a diameter of up to 180mm
  • Automatic ticket Presenter
  • Automatic ticket retracting
  • Operating temperatures -20 ÷ +70°C
  • Full remote management via internal web server
  • Automatic e-mail sending for service purposes
  • Standard interface (OPOS compatible) that enables the user application to access the functionalities of the POS printer





Applications

  • Self-service kiosks
  • Banking machines and cash dispensers
  • Gaming machines
  • Parking meters
  • Vending machines
  • Queue management systems

Accessories

SHUTTER FOR OUTDOOR:
  • Prevents the accidental introduction of objects in the printer bezel
  • It allows to reduce the onsite technical assistance costs, because it significantly increases the life of the internal components
  • No need any firmware update
  • It installs easily, even in the field (retrofit)
  • Min paper weight 55 g/m2 with 85% not condensed relative humidity
  • Operating temperature -20 / +70°C





What is in the box:




  • Device, power supply cable, short guide

Software

Technical sheet

Printing Method Thermal with fixed head
Number of dots 8 dots/mm
Resolution 203 DPI  / head featuring improved printing quality
Printing (mm/sec) 220 mm/sec
Character set PC437, PC850, PC860, PC863, PC865, PC858
Printing Format Normal, height and width from 1x to 8x, reverse, underlined, script, bold
Printing Direction Straight, 90°, 180°, 270°
Paper width from 60 to 82.5 mm
Paper weight from 55 to 110 g/m²
Roll Dimension max 180mm (150mm with paper roll on top)
Emulation CUSTOM/POS
Interfaces RS232+USB
Data Buffer 16 KB
Flash Memory 384 KB
Graphic Memory 2 logos of 608 x 862 dots (for 80/82.5mm paper width)
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
Linux (32/64 bit);
Virtual COM (Linux or Windows 32/64 bit);
OPOS;
JavaPOS;
WOSA XFS
Android™;
iOS
Software Tools PrinterSet, CustomPowerTool, Status Monitor, Custom Windows API
Power supply 24 Vdc±10%
Medium consumption 1A   (12,5% dots turned on)
MTBF 590,000 hours (electronic board)
Head Life 100Km / 100M pulses
MCBF 1,500.000 cuts
Operating temperature -20 ÷ +70°C
Dimensions 149.5 (L) x 121.2 (H) x 123.5 (W) mm
Weight 1.6 Kg

Models

placeholder

915DW011200300
