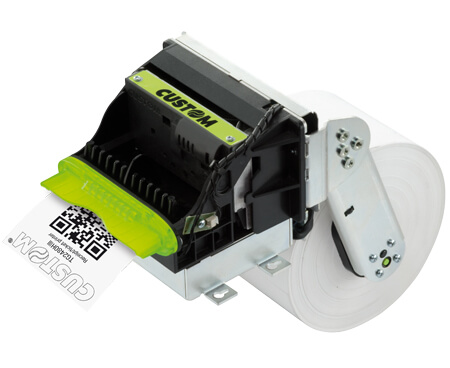

TG2480HIII

TG2480HIII

80mm ticket / receipt printer

  • Metal frame (galvanized/aluminium alloy)
  • High print quality (200 DPI)
  • Paper width: 80mm
  • Paper thickness: from 63 to 85 μm
  • Printing > 150 mm/sec
  • RS232 and USB interfaces
  • Barcodes: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QRCODE
  • Characters: European, International, Portuguese, Nordic, Arabic, Chinese and Russian
  • Highly reliable cutter: over 1,000,000 cuts
  • Sensors: head temperature, paper presence, anti paper jamming, ticket collection, paper end and near paper end

Characteristics

  • Patented Anti Jamming System
  • Multi-position paper roll
  • Metal structure that provides increased rigidity for the printing mechanism and facilitates motor heat dissipation, resulting in improved stability and reliability over time
  • Improved distribution of the head-roller pressure, resulting in improved printing quality











Exclusive patented anti-jamming system.
The design includes an integral chute that protrudes from the front of your panel, making mounting and integration simple.





Applications

  • Self-service kiosks
  • Banking machines
  • Gaming machines
  • Parking meters
  • Photo kiosks
  • Queue management systems
  • Vending machines

Accessories

What is in the box:


  • Device, power supply cable, paper roll holder fixing screw, 2 cable tie, paper roll holder

Software


Certifications

Paper Saving - ISO 14021

Paper Saving Mode

This product thanks to the Paper Saving Mode, is capable of reducing paper usage by 30%(1) while maintaining the same amount of data present on the ticket/receipt.

(1) The reduction refers to the total length of the ticket, measured across two reference lengths (58 and 40). The Paper Saving Mode option does not affect the printing of the Header and Images sections present on the ticket and which remain unchanged.

Technical sheet

Printing Method Thermal with fixed head
Number of dots 8 dots/mm
Columns 43 - 60 - 76
Resolution 203 DPI
Printing (mm/sec) 150mm/sec
Character set PC437, PC850, PC860, PC863, PC865, PC858, PC866, GB2312
Printing Format Normal, height and width from 1 to 4, bold, negative, underlined, script
Printing Direction Straight, 180°
Paper width 80 mm
Paper weight from 55 to 80 g/m²
Paper thickness from 63 to 85 μm
Roll Dimension max 90mm
Sensors Head temperature, paper presence, paper jamming, ticket collection, near paper end sensor
Emulation Custom/POS, TGH
Interfaces RS232 + USB
Data Buffer 2 kB
Flash Memory 1 MB
Graphic Memory 2  608x430 dot logos
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
Linux (32/64 bit);
Virtual COM (Linux or Windows 32/64 bit);
OPOS
Software Tools Status Monitor, PrinterSet, CustomPowerTool, Custom Windows API
Power supply 24V +/- 10%
Medium consumption 0.8A   (12.5% dots turned on)
MTBF 450,000 hours (electronic board)
Head Life 50Km/100M pulses
Operating temperature 0°C + 50°C
Dimensions 271,5(L)x102(H)x130,2(W) mm (without ejector)
260,2(L)x102(H)x130,2(W) mm (with ejector)
Weight 1130 g (without ejector)
1250 g (with ejector)

Models

915CH030100300

915CH030100300

PRINTER TG2480HIII USB RS232
