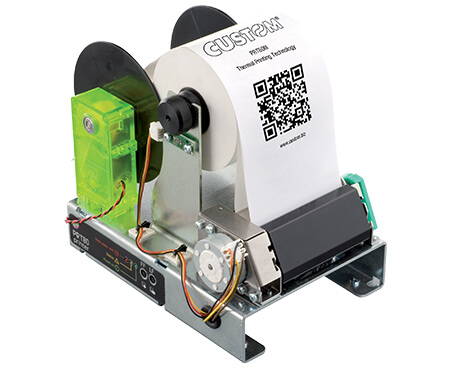

PRT80III

PRT80III

Data Logger

  • Journal thermal printer with rewinder
  • The large paper roll assures a high print capacity
  • Paper width: 80mm
  • USB Interface+RS232
  • 1D and 2D (QRCODE) barcode printing
  • International fonts on-board

Characteristics

Suitable for data recording applications, such as self-service and kiosks reports, general reports, alarm reports, and electronic journals.


Software

Technical sheet

Printing Method Thermal with fixed head
Number of dots 8 dots/mm
Resolution 203 DPI
Printing (mm/sec) 140mm/sec
Character set International (default), Chinese, Korean
Supported Barcode UPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, PDF417, DATAMATRIX, AZTEC, QRCODE
Printing Format Height and width from 1 to 8, bold, negative, underlined, script
Printing Direction Straight, 90°, 180°, 270°
Paper width 80 mm
Paper weight from 58 to 80 g/m²
Paper thickness from 63 to 80 μm
Roll Dimension Ø 100 mm max
Emulation CUSTOM/POS, PRT80, CUSTOM TPT
Interfaces RS232 + USB
Data Buffer 16 KB
Flash Memory 1 MB internal, 4 MB external memory (1 MB of which is available to the user)
RAM Memory 128Kb internal, 8MB external memory
Graphic Memory 6 logos 608 x 215
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
Android™
Software Tools PrinterSet, CustomPowerTool, Status Monitor
Power supply 24 Vdc ± 10%
Medium consumption 1.2A    (12,5% dots turned on)
MTBF 122,000 hours (electronic board)
Head Life 50 Km/100M pulses
Operating temperature +0°C - +50°C
Dimensions 210 (L) x 178.5 (H) x 136 (W) mm
Weight 1.55 Kg

Models

915KW010100300

915KW010100300

PRINTERS PRT80III USB RS232 AV


Contact us to request more information
