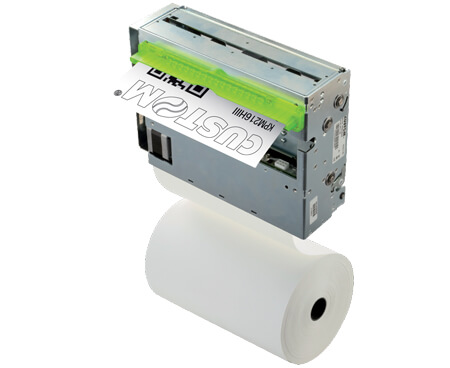

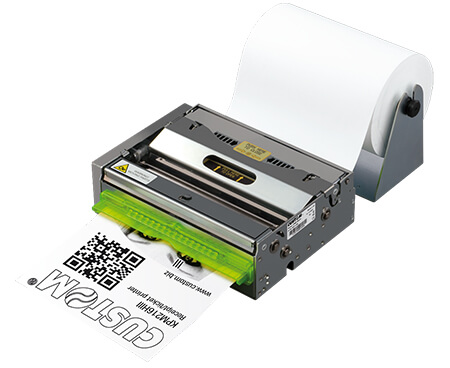

KPM216HIII ETH

A4 document printer

New latest generation processor
New printing head with higher printing quality
Speed > of 200mm/sec
Illuminated paper bezel (standard equipment)
Retracting, roll holding or fan fold in vertical position:the printer has a thickness of only 8cm!
RS232+USB+Ethernet on board: 3 communication interfaces (standard equipment)
Updates from remote thanks to Ethernet interface
All international fonts on board
1D and 2D printing
PrinterSet software : a tool for a complete, easy and quick management of your printer
CPT software: CustomPowerTool for the personalization of your tickets/receipts
Dot-saving function

Characteristics

High print quality (300 DPI )
Full featured loop presenter which avoids paper jams clearing the paper outlet through retracting the uncollected printout or through retracting it inside the kiosk for protecting the privacy of the user
Adjustable paper-infeed
Dot Damage Prevention: this function prevents the dots subject to stress caused by special printouts, like graphics and tables, from wearing out
100% hardware compatibility with previous Ethernet version
Automatic e-mail sending for service purposes
Logo and font remote update
Drivers available in the printer flash disk

What is in the box:

Device, connection cable+external low paper sensor board, additional fixing brackets with screws, power supply cable

	200 DPI model	300 DPI model
Printing Method	Thermal with fixed head
Number of dots	8 dots/mm	12 dots/mm
Resolution	203 dpi	300 dpi
Printing (mm/sec)	200 mm/sec
Character set	PC437, PC850, PC860, PC863, PC865, International
Supported Barcode	1D and 2D
Printing Format	Normal, height and width from 1x to 8x, reverse, underlined, script, bold
Printing Direction	Straight, 90°, 180°, 270°
Paper width	210 mm / 216 mm (A4" - US Letter)
Paper weight	from 58 to 78 g/m²
Paper thickness	from 63 to 85 μm
Roll Dimension	Ø 180mm max
Emulation	CUSTOM/POS
Interfaces	RS232 + USB + Ethernet
Data Buffer	19 KB
Flash Memory	2MB internal flash and 8MB exsternal SPI flash
RAM Memory	128Kbytes
Graphic Memory	5 logos with 1600 x 327 dots	5 logos with 2368 x 327 dots
Drivers	Windows® (32/64 bit) – only on request WHQL and silent installation; Linux (32/64 bit); Android™; iOS
Software Tools	PrinterSet, CustomPowerTool, Status Monitor, Custom Windows API
Power supply	24 Vdc ± 10%
Medium consumption	2.5 A (12,5% dots turned on)
Head Life	100Km / 100M pulses
MCBF	300,000 cuts
Operating temperature	0°C + 50°C
Dimensions	270 x 190 x 90 mm
Weight	4.8 Kg
