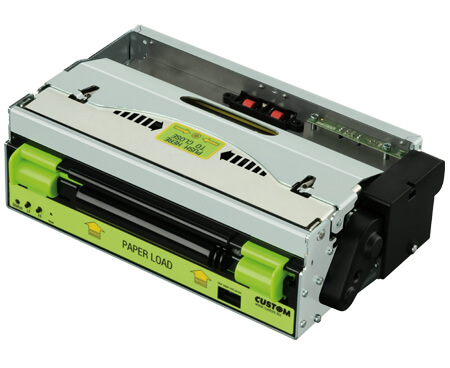

KM216HIII

KM216HIII

A4 document printer

  • New latest generation processor
  • 200 dpi printing quality
  • A4 size documents (210/216 mm)
  • Paper thickness: from 63 to 85 μm
  • Printing speed > 180 mm/sec
  • Illuminated paper bezel (standard equipment)
  • RS232+USB+Ethernet on board: 3 communication interfaces
  • Updates from remote thanks to Ethernet interface
  • All international fonts on board
  • 1D and 2D printing
  • PrinterSet software : a tool for a complete, easy and quick management of your printer
  • CPT software: Custom Power Tool for the personalization of your tickets/receipts
  • Dot-saving function

Characteristics

  • 100% hardware compatibility with previous version
  • Adjustable paper-infeed
  • Simple and robust motorized ejector
  • Dot Damage Prevention: this function prevents the dots subject to stress caused by special printouts, like graphics and tables, from wearing out
  • Highly reliable cutter: over 300,000 cuts
  • Dimensions: 270x180x90mm
  • Sensors: Head temperature, paper presence, notch sensor, outfeed paper presence, near paper end (optional)
  • It is the ideal solution to use when the ticket/document is always of the same length (airport boarding ticket kiosk)
  • Full remote management via internal web server
  • Automatic e-mail sending for service purposes
  • Logo and font remote update
  • Drivers available in the printer flash disk





APPLICATIONS

  • Information kiosks
  • Multimedia and Internet kiosks
  • Document kiosks
  • Banking machines
  • Insurance self-service
  • Human resource kiosks
  • Boarding passes

Accessories

What is in the box:


  • Device, manual, additional fixing brackets, paper roll, connecting cable, power supply

Software

Technical sheet

Printing Method Thermal with fixed head
Number of dots 8 dots/mm
Resolution 203 dpi
Printing (mm/sec) 180 mm/sec (according to the power supply used)
Character set PC437, PC850, PC860, PC863, PC865, International
Supported Barcode 1D and 2D
Printing Format Normal, height and width from 1x to 8x, reverse, underlined, script, bold
Printing Direction Straight, 90°, 180°, 270°
Paper width 210 mm / 216 mm (A4" - US Letter)
Paper weight from 58 to 78 g/m²
Paper thickness from 63 to 85 μm
Roll Dimension Ø 180mm max
Emulation CUSTOM/POS
Interfaces RS232 + USB + Ethernet
Data Buffer 19 KB
Flash Memory 2MB internal flash and 8MB exsternal SPI flash
RAM Memory 128Kbytes
Graphic Memory 5 logos with 1600 x 327 dots
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
Linux (32/64 bit);
Virtual COM (Linux or Windows 32/64 bit);
Android™;
iOS
Software Tools PrinterSet, CustomPowerTool, Status Monitor, Custom Windows API
Power supply 24 Vdc ± 10%
Medium consumption 3.1 A (12,5% dots turned on)
MTBF 200,000 hours (electronic board)
Head Life 100 Km / 100M pulses
MCBF 300,000 cuts
Operating temperature 0°C + 50°C
Dimensions 270 x 180 x 90 mm
Weight 4.8 Kg

Models

915AS060100700

915AS060100700

PRINTER KM216HIII ETH USB RS232 EJECTOR


Contact us to request more information
