TK302III

TK302III

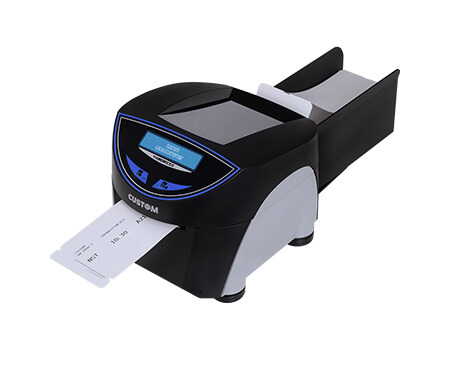

Boarding pass and baggage tag printer with strong autocutter

TK302III is the most advanced BPP and BTP ticket printer found on the market, designed for applications involving high work loads and requiring reliability and high performance. TK302III is completed by a two-row display with 20 characters. TK302III has an Ethernet interface with Embedded Web Server, which allows you to remotely and fully control the printer and perform real time diagnostics. The embedded client mail system is capable of sending out emails automatically, to request support or simply a paper change. The web server provides the flexibility of use required to upload and download fonts and logos from the Internet. It's equipped with native AEA firmware for a seamless integration in CUTE and CUPPS platforms, reliable and fast printing at 200 mm/sec. TK302III has an automatic sensor calibration feature which is automatically activated every time paper is loaded and prevents any ticket wastage thereby contributing to environmental sustainability and reducing management costs. Autocutter and full display. TK302III supports the UHF RFID according to IATA 1740C, standard EPC Gen2.

Characteristics

  • Heavy duty autocutter
  • BPP and BTP all-in-one
  • Cupps compliant native AEA support
  • High speeds up to 200mm/sec
  • Interface: USB, RS232 and Ethernet
  • Automatic ticket length detection
  • Multibin option for handling 3 boarding passes
  • High quality printing head for clear prints
  • SD card for FW upgrade
  • RFID option
  • New flat paper roll holder
  • Full paper auto-loading without paper wasting




FOCUS ON:


  • 1D and 2D IATA barcode printing: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, PDF417, DATAMATRIX, AZTEC, QR CODE
  • Serial/USB/Ethernet interface
  • Sensors: fully adjustable lower and upper optical sensor, to suit any ticket width. Ticket presence sensor
  • The external power supply adapter can be removed to improve installation flexibility
  • Self-installing Printer Driver - Win7, 8, 8.1, 10 (32 - 64 bit compatible). WHQL certified (only on request). Self-installing USB Virtual RS232 Driver - Win7, 8, 8.1, 10 (32 - 64 bit compatible). WHQL certified (only on request); Linux 32-64 bit compatible; Android, iOS, Windows Phone






  UHF

- ETSI standard, fully compliant to the European Regulation ETSI EN 302 280 (869.525 MHz)
- FCC standard, fully compliant to the US telecommunication regulation FCC part 15 (902-928 MHz)
- ISO 18000-6B
- Philips UCODE EPC 1.19
- EPC Class1 Gen2 / ISO 18000-6C





  ENERGY STAR certified





  VeriPrint® allows to integrate a documents' scanning unit (scanner) with a thermal printing head in a unique element. VeriPrint® allows to print and save in real time the digital image of the issued ticket/receipt, to recognize possible printing/paper problems and to use the scanned document as electronic journal or certified copy of the issued document.

Accessories

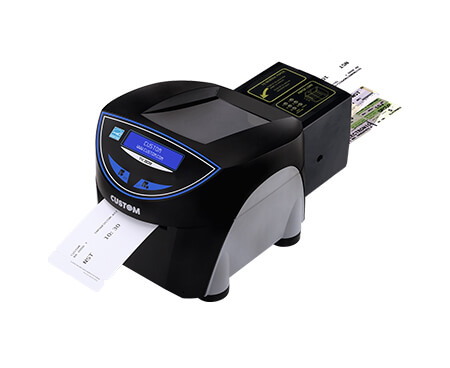

  • Multi Bin: can handle 3 different ticket types
  • Veriprint® printing head with embedded scanner unit
  • Internal barcode scanner
  • Different RFID HF and standard UHF supported: UltraLight RFID; RFID ISO 14443 A/B/B'; ISO 14444, Felica, ISO18092 (NFC); RFID UHF: IATA norm RP1740c recommended; Etsi EN 300 220 and FCC part 15 optional
  • Plastic or metal ticket outlet chute

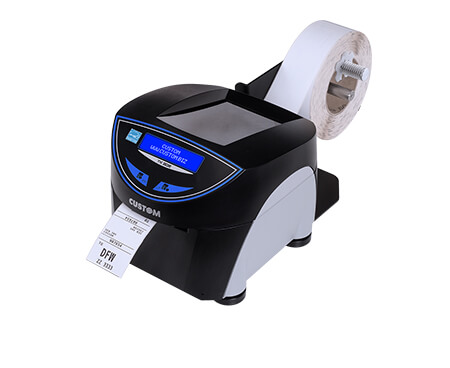

  • Paper roll holder mount or fan-fold


Technical sheet

Printing Method Thermal with fixed head
Number of dots 8 dots/mm
Resolution 203 DPI
Printing (mm/sec) 200 mm/sec
Character set Latin, Cyrillic, Chinese
Paper width from 20mm to 82.5mm (2mm step)
Paper weight from 80 to 255 g/m²
Emulation Cupps compliant native AEA support
Interfaces RS232 / USB / Ethernet
Data Buffer 64 KB
Flash Memory 16 MB
Drivers Self-installing Printer Driver - Win7, 8, 8.1, 10 (32 - 64 bit compatible). WHQL certified (only on request). Self-installing USB Virtual RS232 Driver - Win7, 8, 8.1, 10 (32 - 64 bit compatible). WHQL certified (only on request); Linux 32-64 bit compatible; Android, iOS, Windows Phone
Power supply 24Vdc ± 10% ; Auto Range, 90-132 Vac & 190-264 Vac
Medium consumption 0.8A  (12,5% dots turned on)
Head Life 100Km /100M pulses
MCBF over 2,000,000 cuts
Dimensions 252.1 (L) x 192.6 (H) x 216 (W) mm
Weight 4 Kg

Models

911BB071000713

911BB071000713

PRINTER TK302III EJC VERT STACKER ETH USB RS232 AVIATION


911BB070300713

911BB070300713

PRINTER TK302III ETH USB RS232 AVIATION


911BB090300713

911BB090300713

PRINTER TK302III UHF RFID ETH USB RS232 AVIATION


911BB080300713

911BB080300713

PRINTER TK302III ATB TF888 ETH USB RS232 AVIATION
