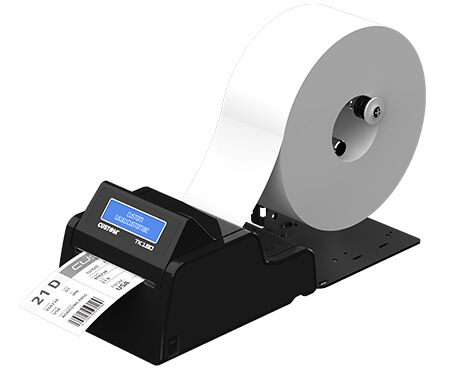

Baggage tag and boarding pass printer with tear-off bar

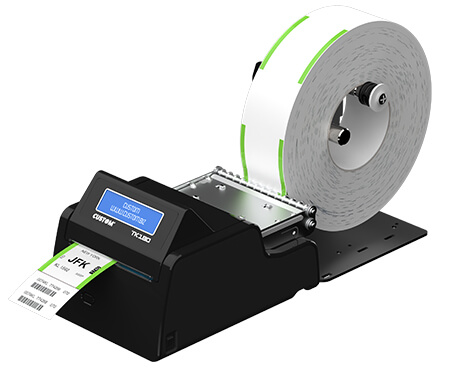

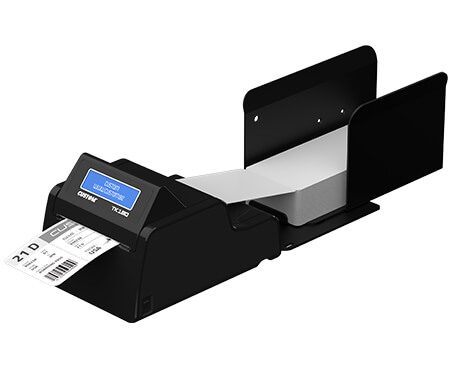

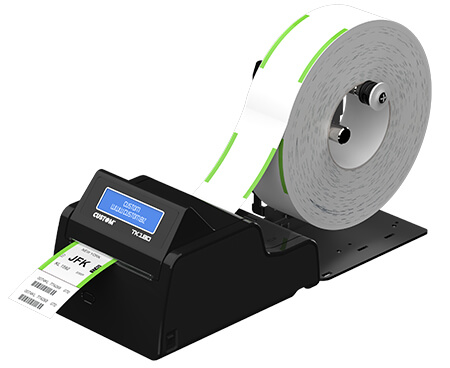

TK180 is the most compact combined BPP and BTP printer with native AEA firmware for a seamless integration in CUTE and CUPPS platforms. Specially designed for small check-in desks where space is a major issue, TK180 can handle BPP tickets as well as paper rolls for receipts. The bag tag support is provided by the optional paper roll holder. TK180 is a dual printer, since it can work both as BPP or BTP tool using the same firmware, configurable via set up. The NATIVE AEA 2012 firmware allow easy integration in any software architecture, without requiring any additional software. TK180 is equipped with a powerful internal processor and Hot swap function. Reliable and fast printing at 200 mm/s. The Ethernet, RS232 and USB interfaces assure easy and flexible integration, in any airport. In addition to the most common sensors, it is also provided with the new mobile VeriNotch sensor, capable of identifying black marks or gaps on any type of paper. TK180 has an automatic sensor calibration feature which is automatically activated every time paper is loaded and prevents any ticket wastage thereby contributing to environmental sustainability and reducing management costs. 2 sides tear-off. Display. TK180 supports the UHF RFID according to IATA 1740C, standard EPC Gen2.
FOCUS ON:
APPLICATIONS:
![]() |
UHF - ETSI standard, fully compliant to the European Regulation ETSI EN 302 280 (869.525 MHz) - FCC standard, fully compliant to the US telecommunication regulation FCC part 15 (902-928 MHz) - ISO 18000-6B - Philips UCODE EPC 1.19 - EPC Class1 Gen2 / ISO 18000-6C |
SOFTWARE:
Printing Method | Thermal with fixed head | ||||
Number of dots | 8 dots/mm | ||||
Resolution | 200 DPI or 300 DPI | ||||
Printing (mm/sec) | > 200 mm/sec | ||||
Supported Barcode | 1D and 2D IATA barcode printing: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, PDF417, DATAMATRIX, AZTEC, QR CODE | ||||
Paper width | from 20 mm to 82.5 mm | ||||
Paper weight | 70/255 g/m² | ||||
Paper thickness | 70/255 g/m² | ||||
Roll Dimension | 200 mm external diameter, 25 mm internal core, not coupled to the role core | ||||
Emulation | Cupps compliant and native AEA 2012 support | ||||
Interfaces | RS232 / USB / ETHERNET | ||||
Data Buffer | 16 KB text / 1 MB graphics | ||||
Flash Memory | 3 MB | ||||
Drivers | Self-installing drivers for Windows 7, 8, 8.1, 10 (32-64 bit support); Linux (32-64 bit support); Android, iOS, Windows Phone | ||||
Power supply | 24 Vdc±10% , from 100 Vac to 240 Vac | ||||
Medium consumption | 1.5A (12.5% dots turned on) | ||||
Head Life | 100Km / 100M pulses | ||||
MCBF | Tear off device | ||||
Operating temperature | -10°C + 60°C ±10% | ||||
Dimensions | BPP mode: W 130 mm x D 185.9 mm x H 118.9 mmBTP mode with paper roll holder (optional): W 136.5 mm x D 371.4 mm x H 210.8 mm | ||||
Weight | 1.9 Kg |
