WINDOWS PC

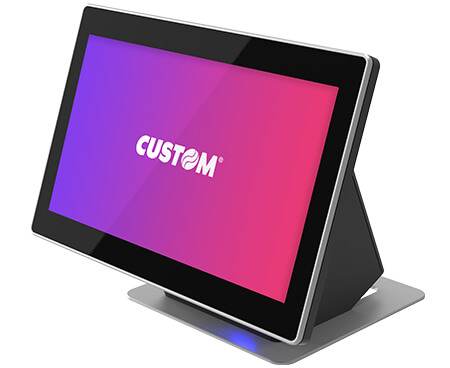

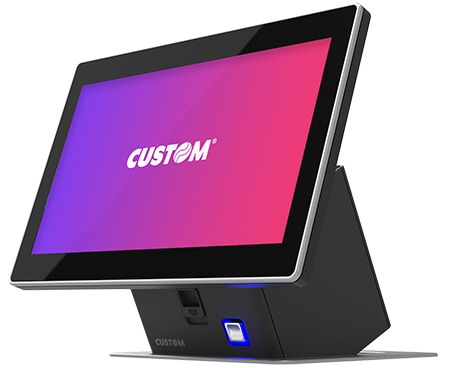

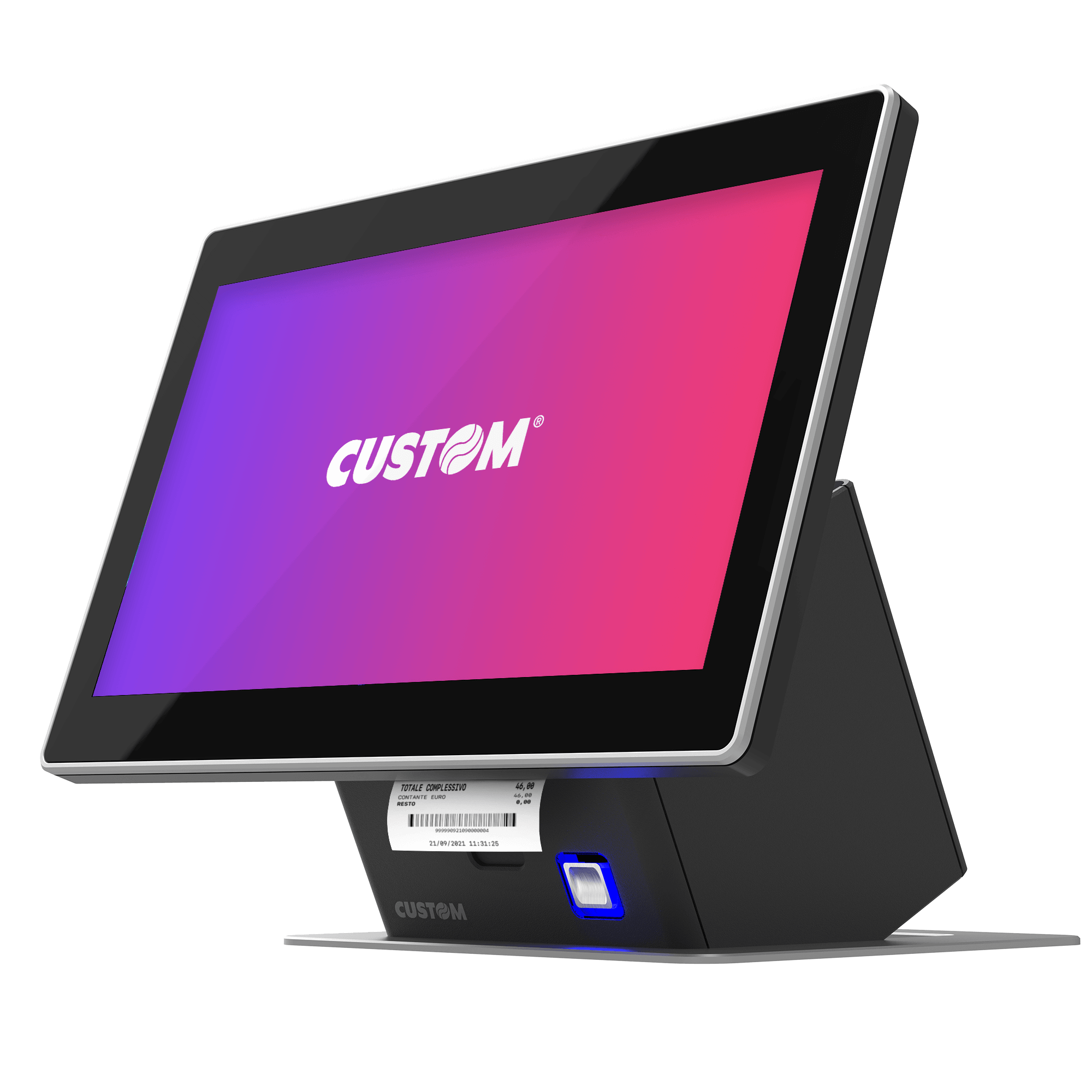

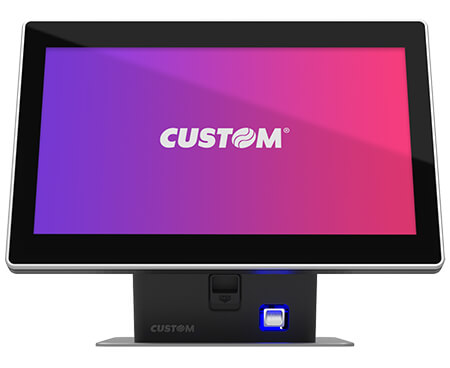

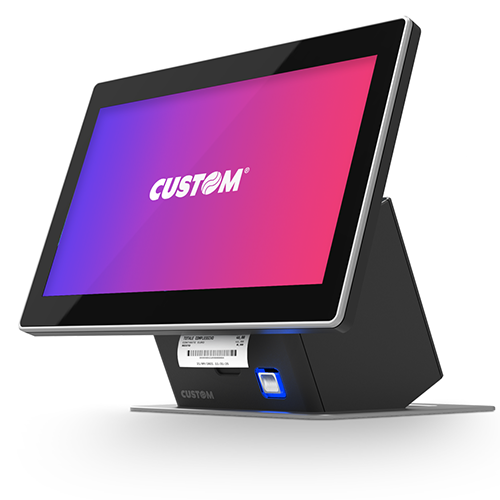

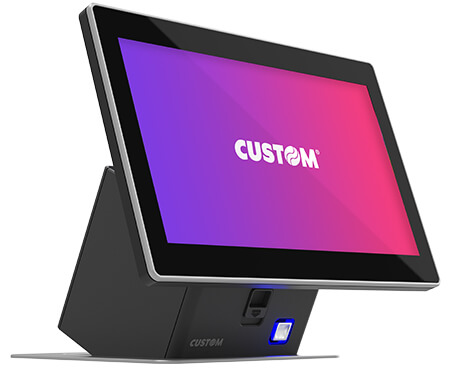

All-in-One Windows® PC POS compact and with a refined design, equipped with a 80mm thermal printer, 13.3" wide LCD touch screen and WI-FI® connectivity. GENIUS 2.0 is the ideal solution for those who need great performance in small spaces.
Share
Linkedin
Facebook
Twitter
Whatsapp
Email
| Processor | Intel® Celeron® J3455, 2.3 GHz |
|---|---|
| Memory RAM | 8 GB |
| Hard Disk | 128 GB su SSD mSATA |
| Display | LCD 13.3" TFT backlit |
| Resolution | 1366 x 768 |
| Aspect ratio | 16:9 (WXGA) |
| Brightness | 300cd/m2 |
| Touch screen | Capacitive |
| Wi-Fi | Standard 802.11 b/g/n 2.4G single channels |
| Operating system | Windows® 10 IoT |
| Software tools | Custom Windows API |
| Sensors | Paper presence Paper compartment cover opening Printhead temperature Low paper end Cutter position |
| I/O | 4 x USB 3.0 port 1 x Ethernet/RJ45 port 1 x HDMI port 1 x Cash drawer (RJ12) port 1 x COM RS232 (RJ12) port |
| Power supply | from 100 Vac to 240 Vac |
| Dimension | 266.4 mm (W) x 337.5 mm (L) x 270.5 mm (H) |
| Weight | 4,5 Kg |
| INTEGRATED THERMAL PRINTER | |
| Resolution | 203dpi (8 dot/mm) |
| Printing method | Thermal with fixed head (8 dot/mm) |
| Printing speed | 140 mm/s |
| Paper width | 80 mm |
| Paper weight | from 55 to 60 g/m² |
| Paper thickness | 63 μm |
| External roll diameter | max 80 mm |
