VKP80II RX
Anti-jamming System, Automatic Status Back, Adjustable paper entry for different paper widths, Support for auto-balancing roll, Illuminated paper nozzle, Multi-position paper roll, Standard roll holder managing rolls up to 180mm in diameter, and Automatic ticket ejection.
Key points
VKP80
Anti-jamming
Anti-jamming system with automatic ticket ejection and retraction.
Flexible paper handling
Adjustable paper inlet, multi-position roll and roll holder up to Ø 180 mm.
Outdoor use
Operating temperature from -20°C to +70°C, suitable for demanding environments.
Remote control
Internal web server, automatic status back and service email notifications.
POS integration
Standard OPOS-compatible interface for direct access to functions.

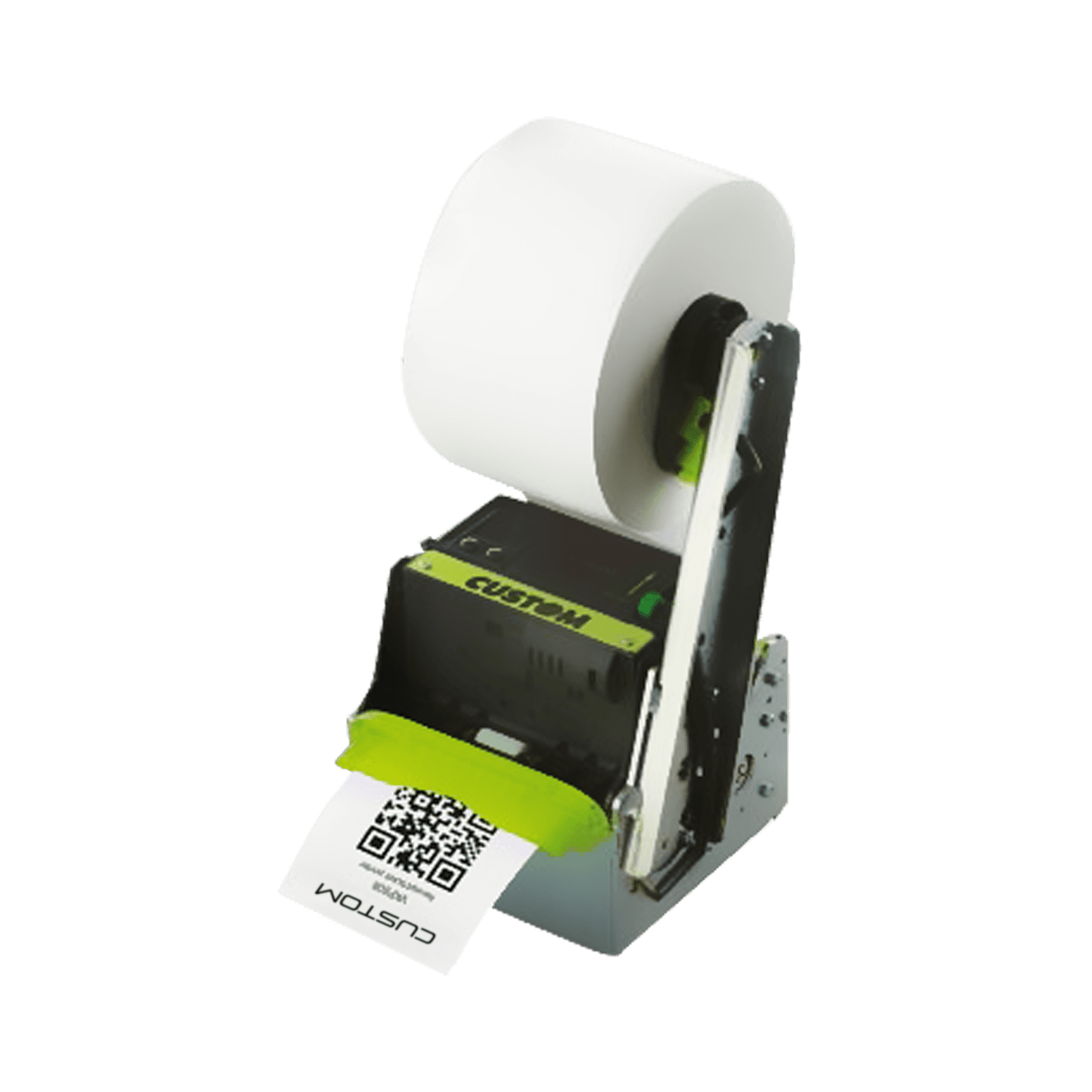

Gallery
VKP80II RX from every angle
Technical sheet
Technical sheet
| Printing method | Thermal with fixed head |
|---|---|
| Resolution | 200 dpi (8 dots/mm) |
| Printing speed (max) | 220 mm/sec |
| Paper width | 60-82.5 mm |
| Paper weight | 55-110 g/m² |
| External roll diameter | 180 mm |
| Roll core diameter | 25 mm |
| Sensors | Printhead temperature; black mark presence; paper presence; paper presence on output; printing unit open; near-paper-end sensor (optional) |
| Emulation | CUSTOM/POS |
| Interfaces | RS232; USB |
| Print Driver | Windows® (32/64 bit); Linux (32/64 bit); Virtual COM; OPOS; JavaPOS; WOSA XFS; Android™; iOS |
| Software Tools | PrinterSet; Custom Power Tool; Status Monitor; Custom Windows® API; Driver Manager |
| Special features | Patented loop management; retract capability; continuous mode; optional roll holder; optional shutter; optional near-paper-end sensor |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1 A |
| Print Head Life | 100 km / 100M pulses |
| Cutter | Full cut |
| Cutter life | 1,000,000 cuts |
| Operating temperature | -20°C ~ 70°C |
| Dimensions (L x W x H) | 150 x 124 x 121 mm |
| Weight | 1.6 kg |
| Box contents | device; quick guide; power cable harness |
Models
All available models
915DW011200300
PRINTER VKP80II RX USB RS232
