Check-in Desk Printers
TK180 METAL TEAR-OFF
Most compact aviation printer with a metal body
TK180 METAL TEAR-OFF
Extremely compact and reliable, Robust fully metal casing, Same model for ATB and BTP, Tear bar on 2 sides, RFID (optional), Prevention of Damaged Dot, Automatic ticket length detection, and Complete paper auto-loading without waste.
Key points
TK180 METAL TEAR-OFF
Compact ATB/BTP
Single model for boarding passes and baggage tags.
Metal structure
Fully metal casing, robust and reliable.
Fast printing
Speed up to 200 mm/s, with True Font and 2D barcodes.
Two-sided tear-off
Tear bar on both sides for practical ticket handling.
Airport standards
Compatible with CUTE/CUPPS, ATB/BTP/GPP, Ethernet and optional RFID.

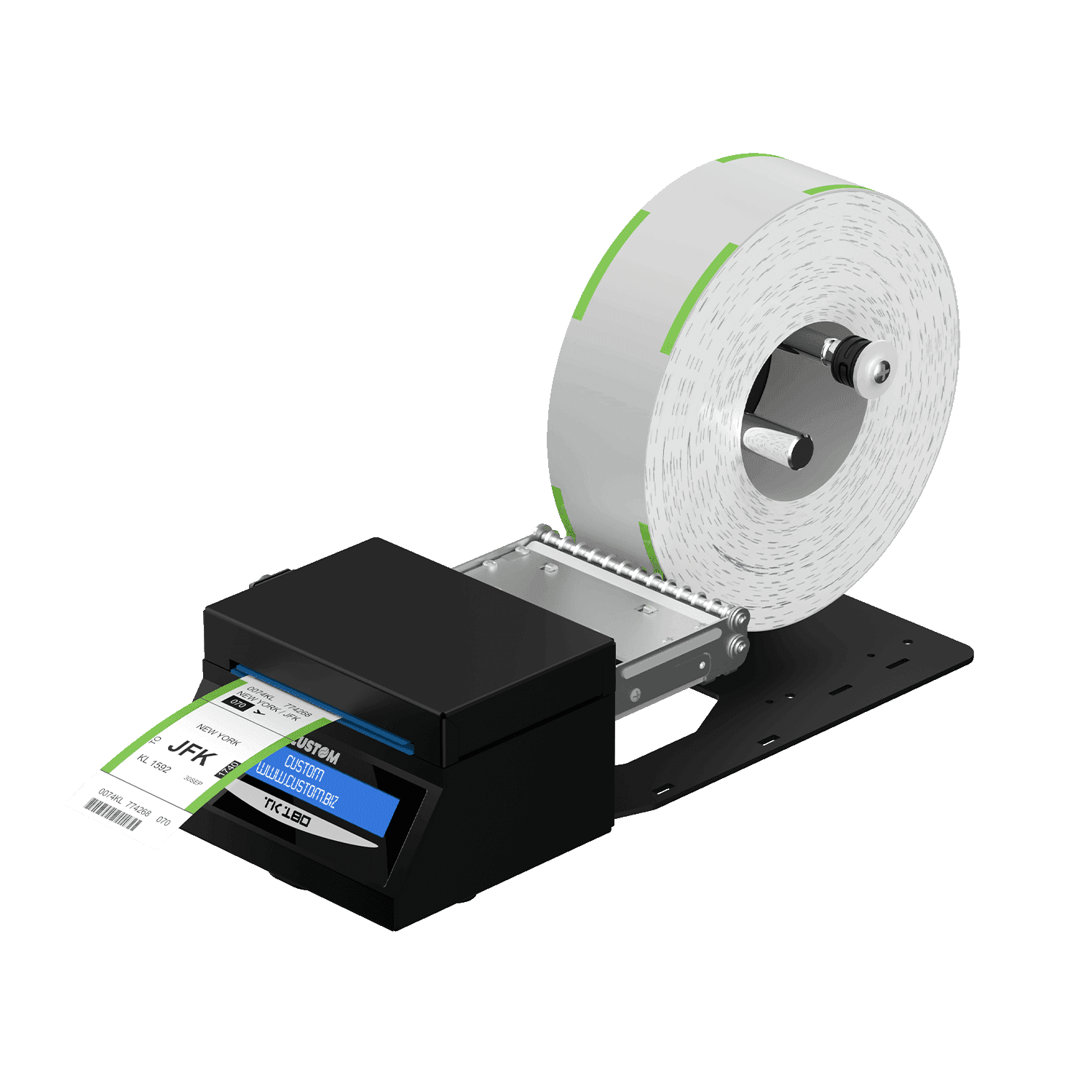

Gallery
TK180 METAL TEAR-OFF from every angle
Technical sheet
Technical sheet
| Printing method | Thermal with fixed head |
|---|---|
| Printing speed (max.) | 200 mm/sec |
| Paper width | Compliant with IATA Resolution 740, 722e and RP 1740 |
| Paper thickness | According to IATA specifications |
| Paper roll diameter | 200 mm |
| Supported barcodes | UPC-A; UPC-E; EAN13; EAN8; CODE39; ITF; CODABAR; CODE93; CODE128; CODE32; PDF417; DATAMATRIX; AZTEC; QR CODE |
| Sensors | Paper presence; print head temperature; paper presence at output; adjustable black mark or translucent gap/hole detectors; cover open; optional near paper end |
| Emulation | ATB; BTP; GPP |
| Firmware | Native AEA/ITPS support from 2007 to 2022 |
| Interfaces | USB; RS232; Ethernet |
| Drivers | Windows® (32/64 bit); CUPS Linux (32/64 bit); Virtual COM (32/64 bit); Android™ |
| Software tools | PrinterSet; CustomPowerTool; Status Monitor; Custom Windows® API; AeroVcomService |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1.6 A |
| Print head life | 100 km / 100M pulses |
| Cutter | Two-sided tear bar |
| Operating temperature | 0°C ~ 40°C |
| Dimensions (L x W x H) | 119 x 145.6 x 85 mm; 374 x 145.6 x 160 mm |
| Weight | 2.24 kg |
| Package contents | Device; quick guide; power supply; power cord; paper block guide; paper width reducer |
Models
All available models
911HL010400733
PRINTER TK180 METAL USB RS232 AVIATION
911HL011000733
PRINTER TK180 METAL RFID UHF USB RS232 AVIATION
911HL012100733
PRINTER TK180 METAL LL INTEGRATED RFID UHF AVIATION
