SM100-200
The SM100 and SM200 barcode scanners guarantee excellent performance in checkout operations thanks to their latest-generation technology. The readers are reliable and suited to a variety of working environments: their features and outstanding value for money make them the best solution for Retail and warehouse applications. SM100 and SM200 have an ergonomic design and are equipped with a USB interface. The powerful built-in scanner detects all the main 1D and 2D barcodes and GS1 DataBarTM symbologies, including damaged codes or those with printing defects. The devices can also read from screens, reducing processing times and labour costs while increasing accuracy. Finally, the ScannerSet programming software provides extensive configuration options. SM100 and SM200 are among the most versatile solutions on the market, the best choice for any retail environment.

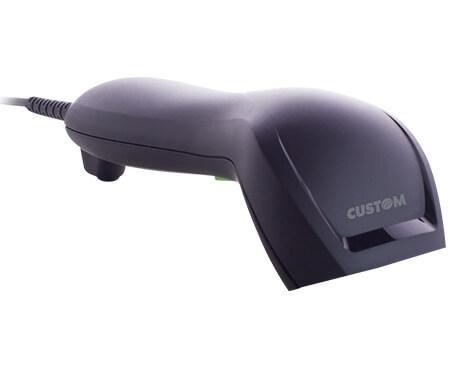

Gallery
SM100-200 from every angle
Technical sheet
Technical sheet
| SM100 | SM200 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHYSICAL | ||||||||||||
| Body weight | 90 g | |||||||||||
| Dimension | 73.50 mm (W) x 173 mm (D) x 76.2 mm (H) | 65 mm W x 168 mm D x 55 mm H | ||||||||||
| USB cable | - | |||||||||||
| Material | ABS / Rubber | |||||||||||
| ELECTRICAL | ||||||||||||
| Interface | USB, USB HID, VCOM | USB, USB HID, VCOM | ||||||||||
| Supply output voltage (Typ.) | +5V±5% | |||||||||||
| Current draw operation (Typ.) | 335 mA | |||||||||||
| PERFORMANCE | ||||||||||||
| Light source | visible Red light 632nm LED | White light LED | ||||||||||
| Sensor | linear sensor | - | ||||||||||
| Resolution | 1280(H) x 800 (V) pixels | |||||||||||
| Width of field | Horizontal –55°, Vertical – 35° | |||||||||||
| Scan speed | 100 scans per second ±10% | 60 fps (at full resolution) | ||||||||||
| Reading Distance | from contact up to 200mm@20mil/0.5mm, PCS90% | 250mm@20mil/0.5mm, PCS90% | ||||||||||
| Print contrast ratio | 0.25 | 30% | ||||||||||
| Barcode resolution | 3mil/0.076mm@PCS90% Code39, 8mil/0.2mm@PCS90% QRCode | |||||||||||
| Reading angle Pitch angle Skew angle |
Test Conditions: Code 39, 10mil/0.25mm, PCS90% | Test Conditions : Code 39, 10mil/0.25mm,PCS90% ±5°~60° ±5°~60° |
||||||||||
| Ambient light fluorescent lamp | 100,000 Lux. Maximum | 100,000 Lux. Maximum | ||||||||||
| ENVIRONMENTAL | ||||||||||||
| Operating temperature | 0°C to 50°C (32°F to 122°F) | 0 °C ~ 50 °C (32 °F ~ 122 °F) | ||||||||||
| Relative humidity | 20% to 95% (Non-condensing) | 20% to 95% (Non-condensing) | ||||||||||
| Readable symbologies | All UPC/EAN/JAN, EAN128 Code, Code39, Code39 Full ASCII, Code32 / Italian Pharmacy, Code128, CODABAR/NW7, Interleave 25, Industrial 25, MSI/PLESSEY, Code 93, China Postage, GS1 DataBar | 1D: UPC-A, UPC-E, EAN-8/JAN-8, EAN-13/JAN-13, Code 39, Code 128, Interleaved 25, Industrial 25,Matrix 25, Codabar/ NW7, Code 93, China Post, MSI/Plessey, Telepen, GS1 Databar Omni-directional, GS1 Databar Limited, GS1 Databar Expended. 2D: Data Matrix, PDF 417, QR Code, Aztec, Micro PDF417,Micro QR Code, Dotcode. Opzionale: Maxicode, Han Xin Code |
||||||||||
| RELIABILITY | ||||||||||||
| Life time trigger switch | 1,000,000 times @1kg ±50g cycles | |||||||||||
| Life time MTBF (calculated) | 50,000 hours | 50,000 hours | ||||||||||
| Drop | 70.86 inches (180cm) drop on Concrete Surface | |||||||||||
| Electro-static discharge | Both contact and air at up to 16KV | |||||||||||
| Sealing | IP41 water and dust protection | |||||||||||
| SM100 | READING RANGE SM100 |  |
||||||||||
| Barcode mil/Depth of field mm | ||||||||||||
| 3mil Code39 4mil Code39 5mil Code39 6mil Code39 10mil Code39 13mil Code39 20mil Code39 20mil QR Code 20mil PDF417 20mil Data Matrix |
40~90 mm 35~95 mm 30~110 mm 30~140 mm 30~160 mm 30~180 mm 30~250 mm 30~160 mm 30~110 mm 30~160 mm |
|||||||||||
| SM200 |
|
|||||||||||
Models
All available models
994ED042800233
BARCODE SCANNER SM100 1D USB
995ED040900233
BARCODE SCANNER SM200 2D USB
